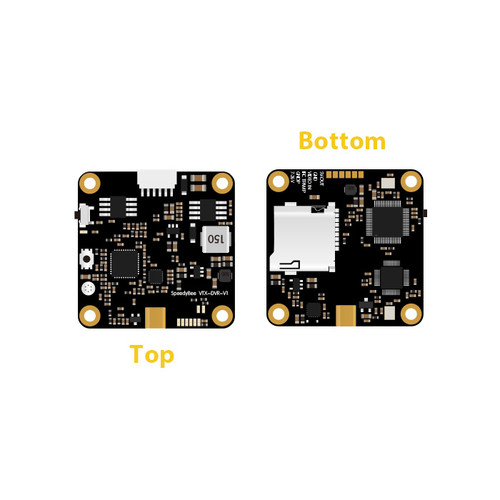

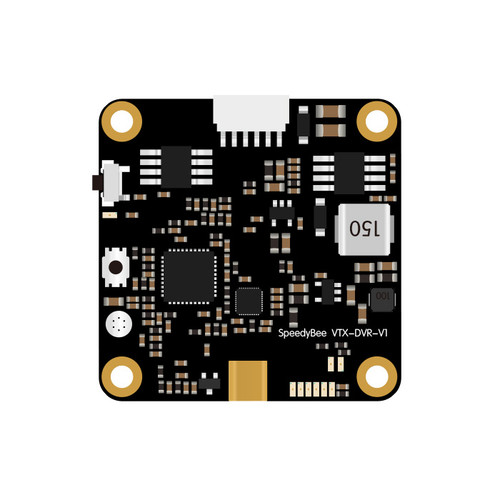

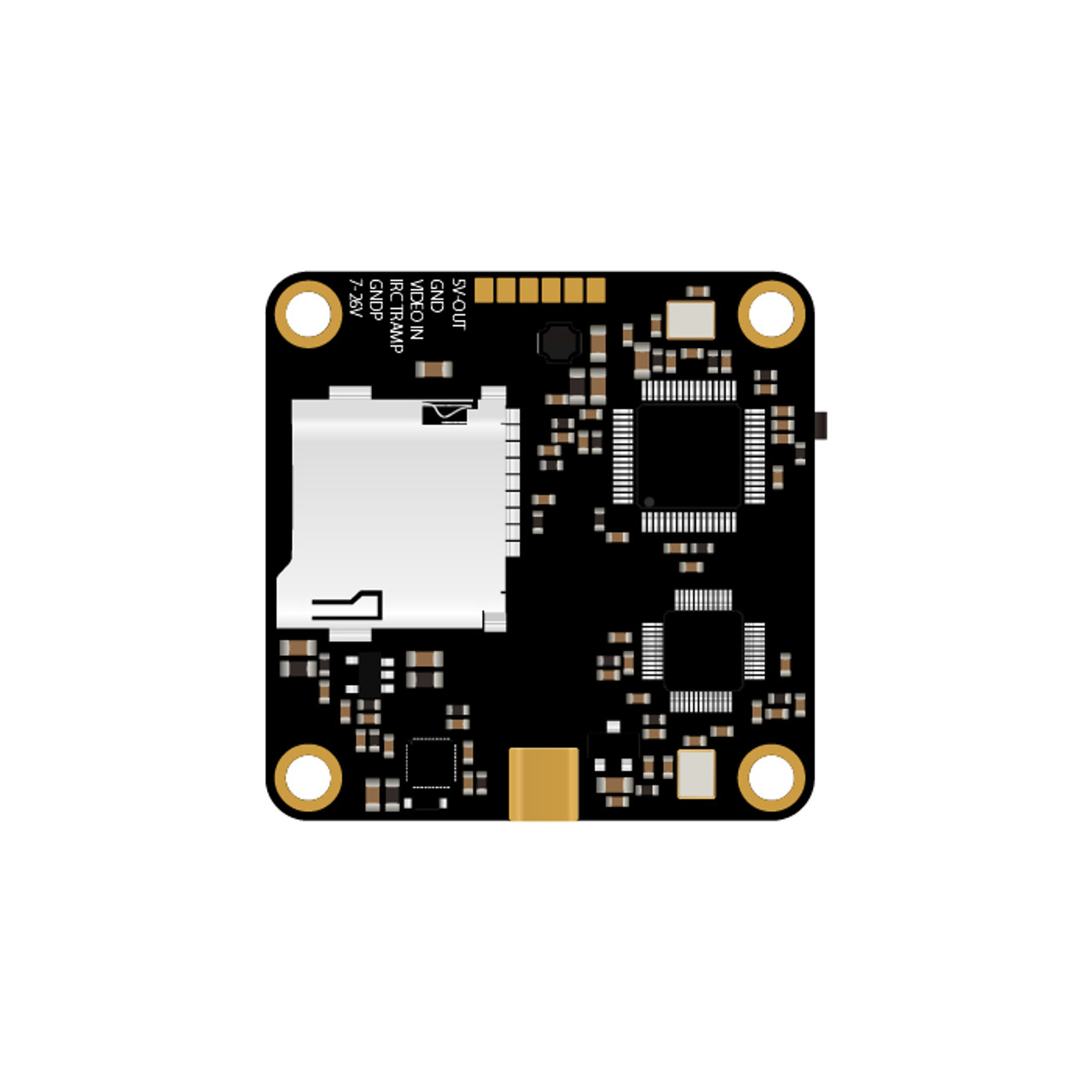

VTX & DVR 2 in 1
Support Betaflight

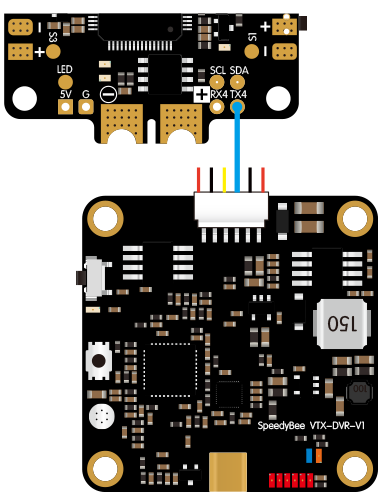

CMS Control / IRC Tramp
Support Betaflight

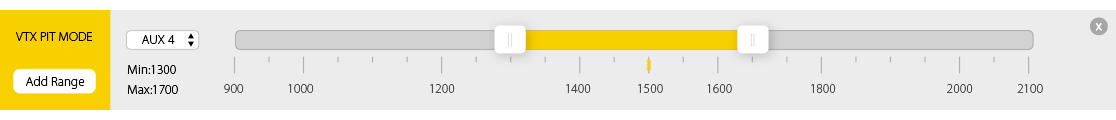

VTX PIT MODE

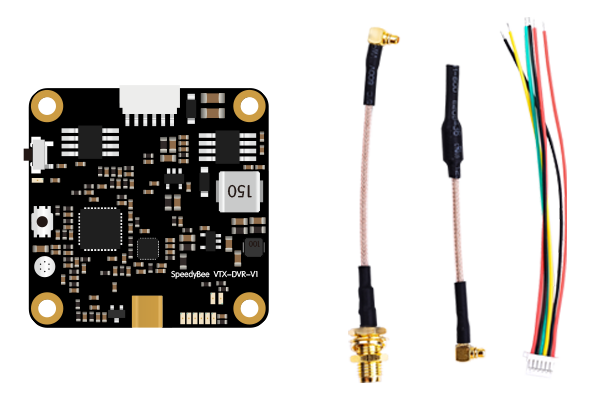

Package
- 1 X VTX-DVR
- 1 X MMCX antenna
- 1 X MMCX to SMA Cable
- 1 X 1.0mm 6pin Cable
- 1 X Set of screws
Parameter

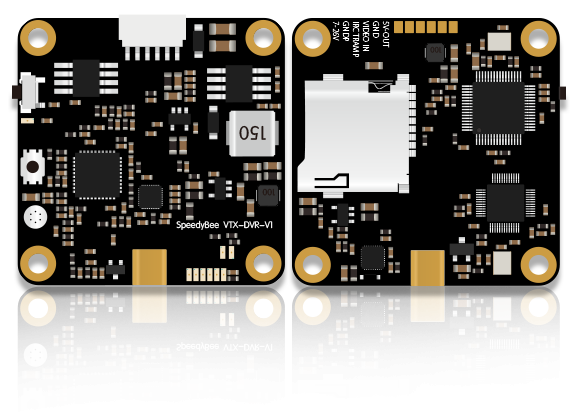

| Model | Speedy Bee VTX-DVR | |
| DVR | Video in | CVBS@1Vp-p 75Ω |
| Encoder | MJPEG@AVI | |
| Resolution | VGA ( 640 x 480 ) @ 30fps ( NTSC ) / 25 fps ( PAL ) | |
| Audio | Built-in MIC | |
| Micro SD Card | Max 32G | |
| VTX | Frequency Channel | 5.8G 48CH |
| Output Power | 25mW / 200mW / 600mW | |
| Video Input Impedance | 75 Ohm | |
| Antenna Connector | MMCX | |
| Power in | DC 7-26V | |
| Working Current | DC 9V @Max 450mA | |
| Power out | DC 5V @Max 250mA | |
| Net Weight | 7.5 g (without antenna) | |

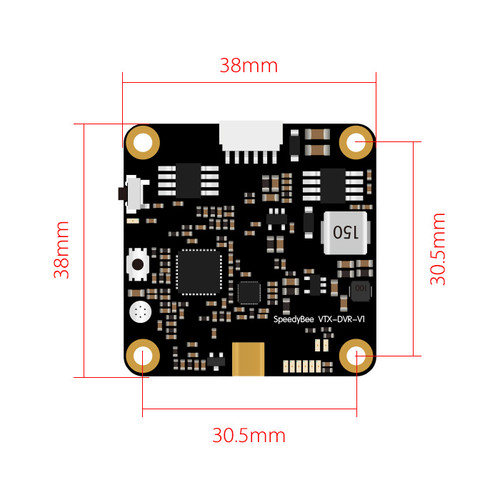

| Dimension | 36mm*36mm @30.5 × 30.5 M3 holes | |
