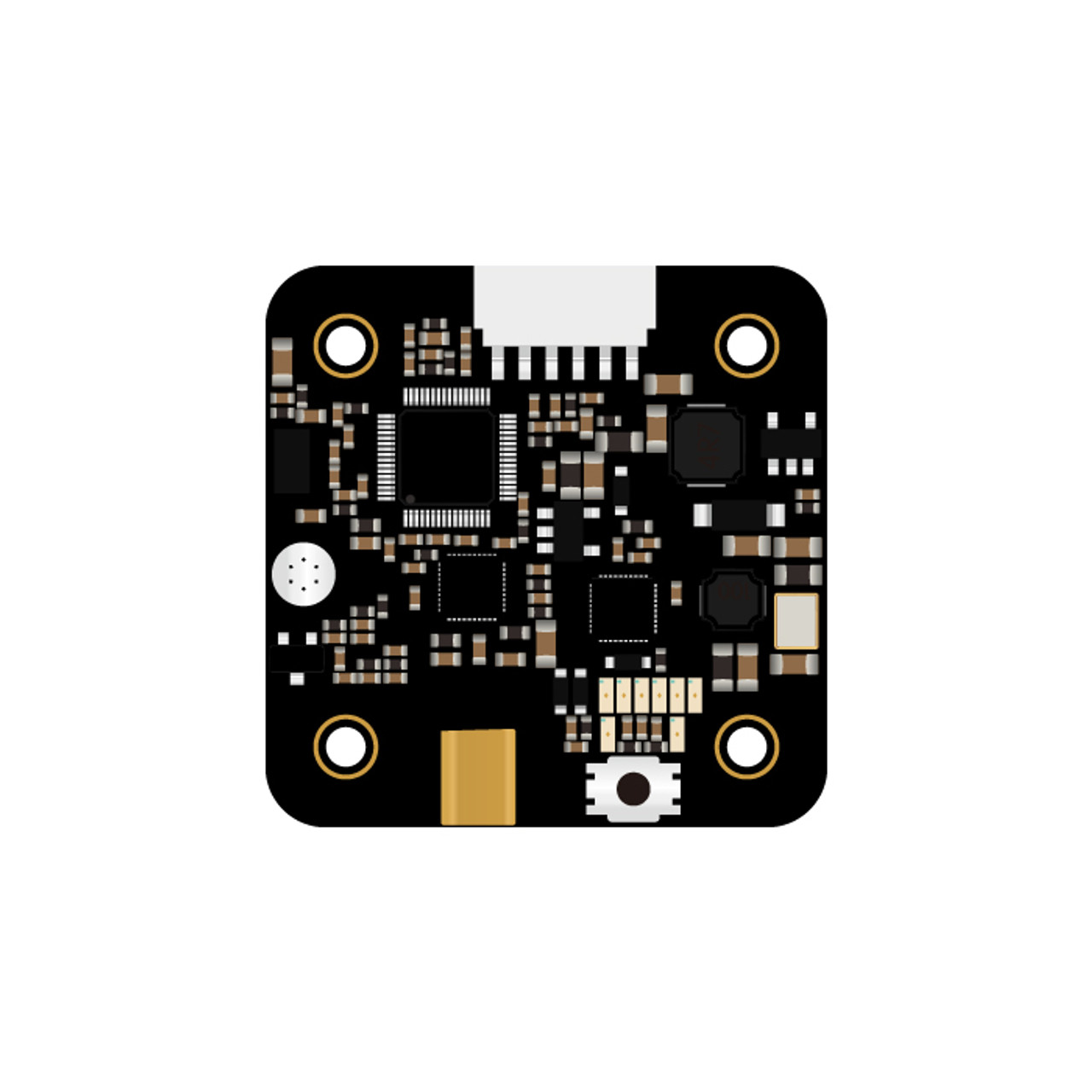

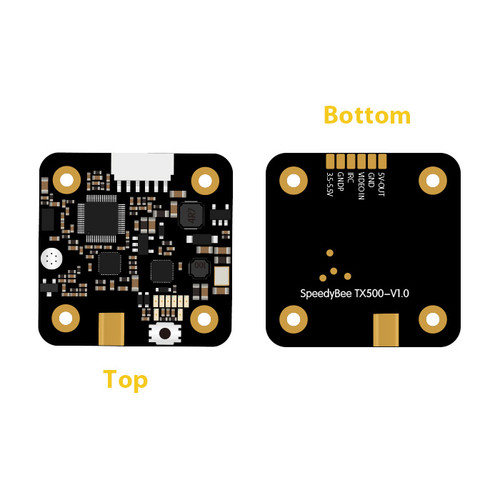

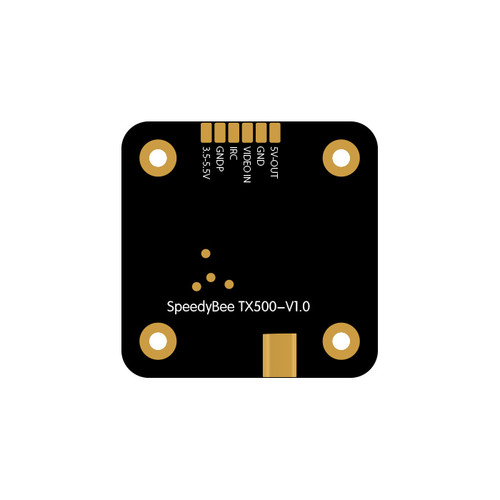

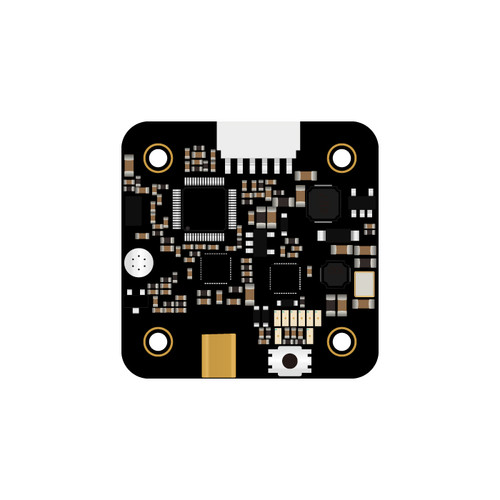

Speedy Bee TX500

5.8G 48CH 25/200/500mW Video
Transmitter Built-in MIC
28*28mm@20*20mm M2 holes
Transmitter Built-in MIC
28*28mm@20*20mm M2 holes

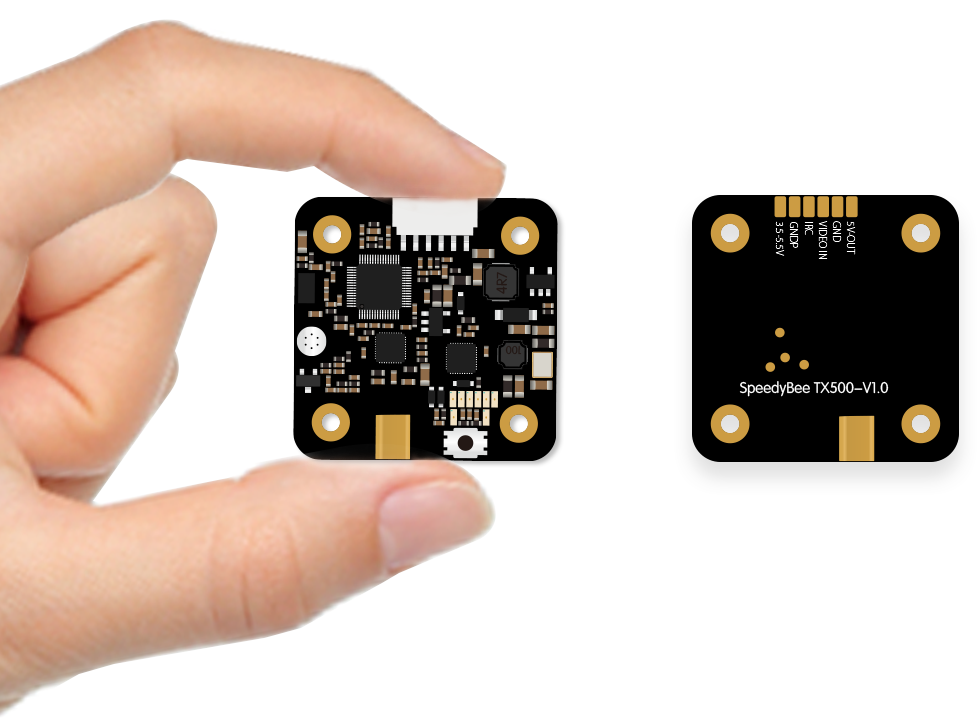

Designed for Mini FPV Racing Drone
28*28mm@20*20mm M2 holes

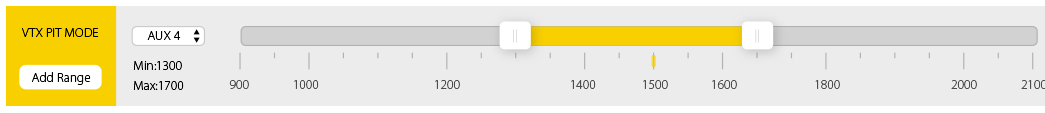

Support Betaflight VTX PIT MODE

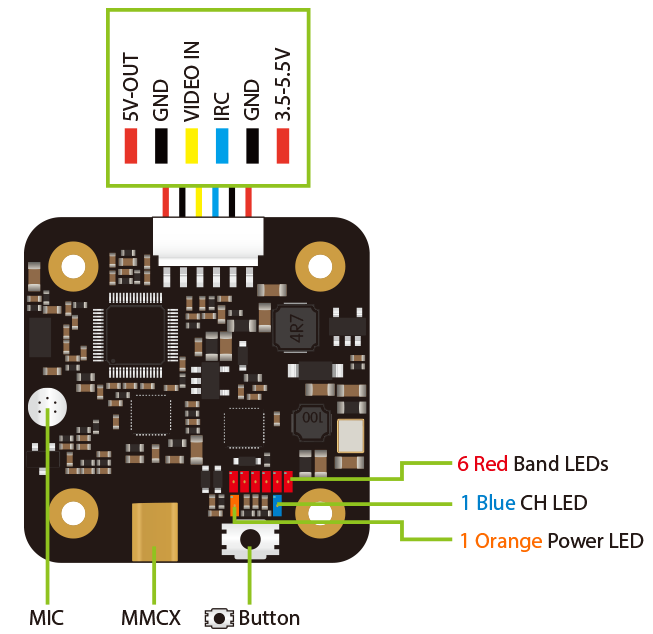

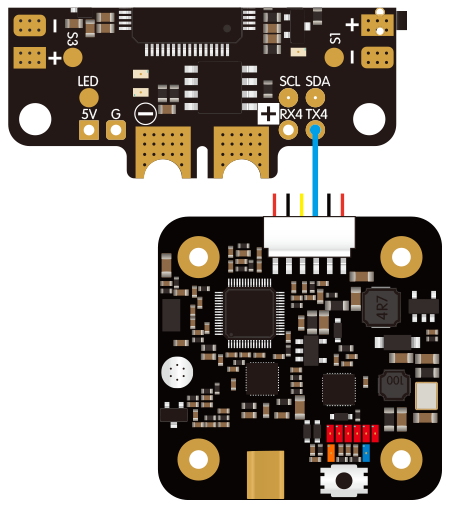

Instruction diagram

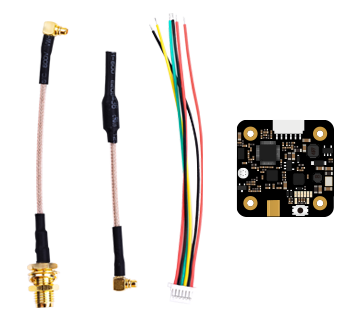

Package
- 1 X TX500
- 1 X MMCX antenna
- 1 X MMCX to SMA Cable
- 1 X 1.0mm 6pin Cable
- 1 X Set of screws
Parameter
Frequency Channel | 5.8G 48CH |
Output Power | 25mW/200mW/500mW |
Working Current | 5V@150~550mA |
Voltage out | 5V@max 250mA |
Voltage in | 1S 3.5-5.5V |
Video Input Impedance | 75 Ohm |
Audio | Built-in MIC |
Antenna Connector | MMCX |
Weight | 4g (without antenna) |

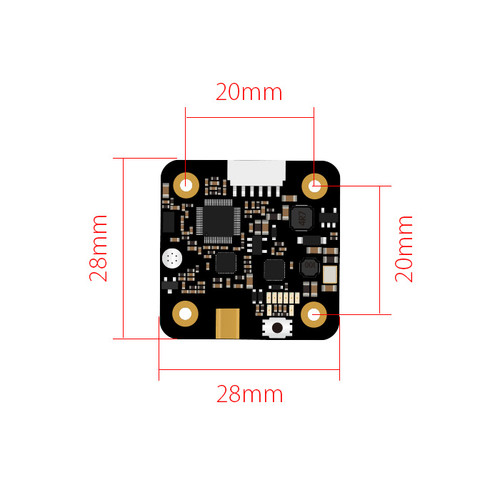

PCB Size | 28mm*28mm@20*20 M2 |
