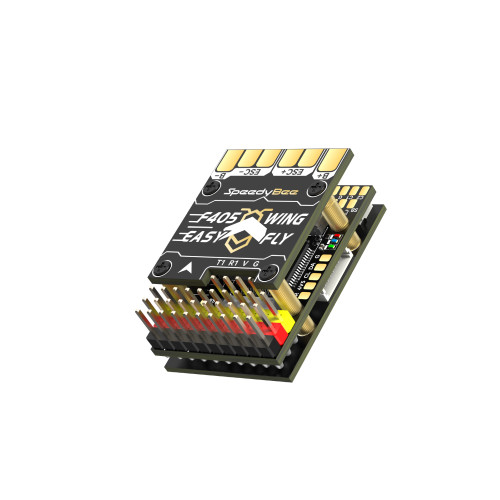

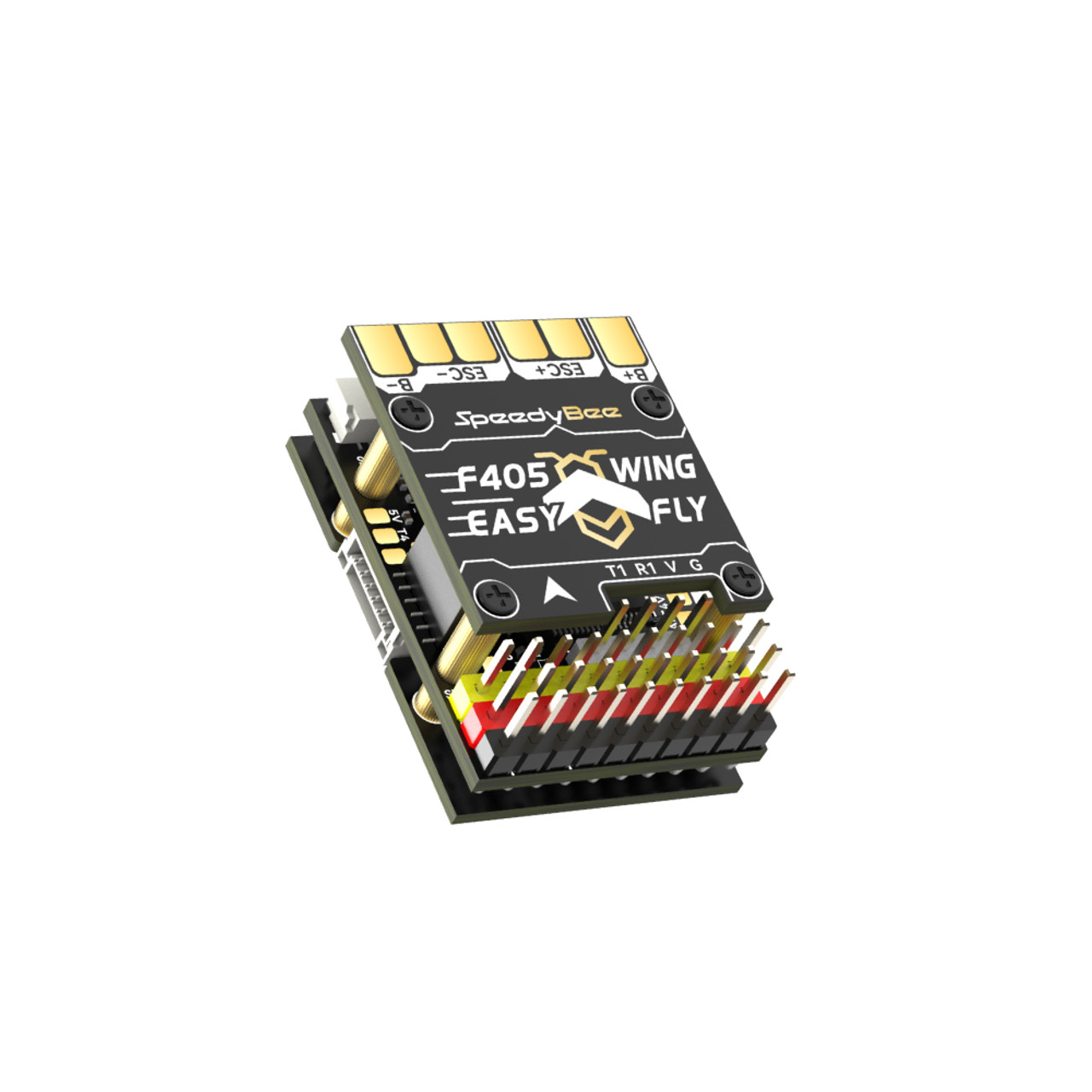

SpeedyBee F405 WING MINI Fixed Wing Flight Controller
€32.27
- SKU:
- SB-F405WING-MINI
- Shipping:
- Free Shipping

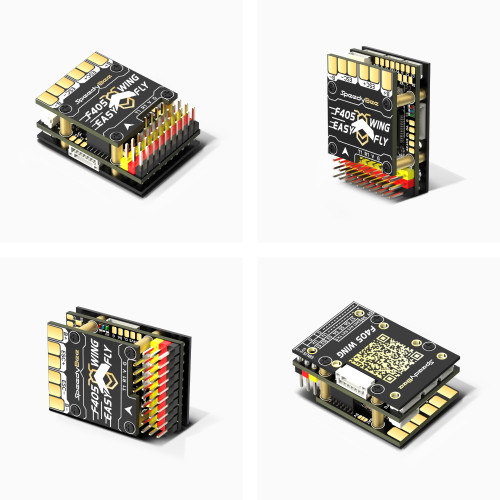

Mini Size, Mega Ease Flexible Installation
Small yet mighty, the compact size of F405 WING MINI doesn't compromise functionality. Its sleek design not only saves space but also cleverly integrates almost all essential features. From compact glider cockpits to sub-250g fixed-wing, F405 WING MINI fits effortlessly into any space.

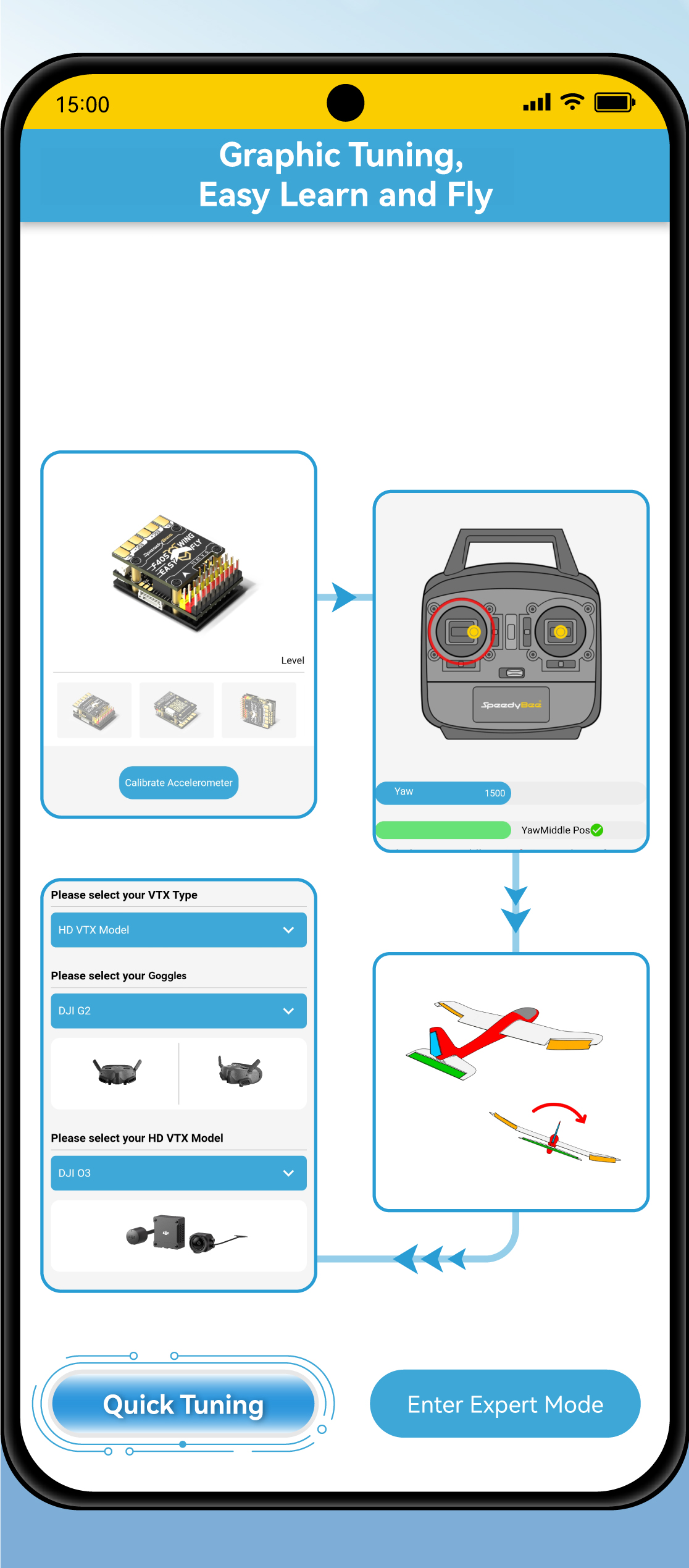

Simplify Complexity: F405 WING MINI utilizes a graphic interface through APP, transforming intricate technical adjustments into intuitive and straightforward operations. Suitable for both beginners and experts, it reduces setup time and gets you into the joy of flying quickly.
Neat and Easy Installation,
Plug-and-Play
Plug-and-Play

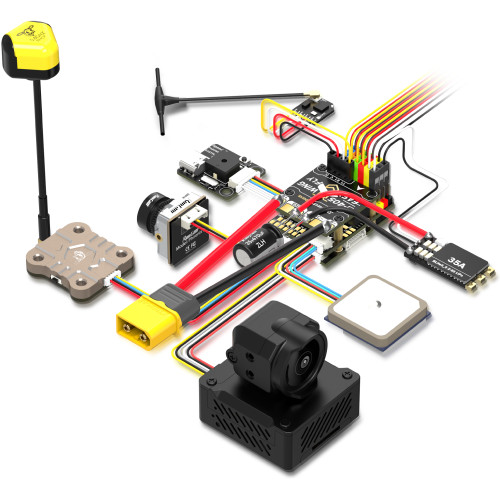

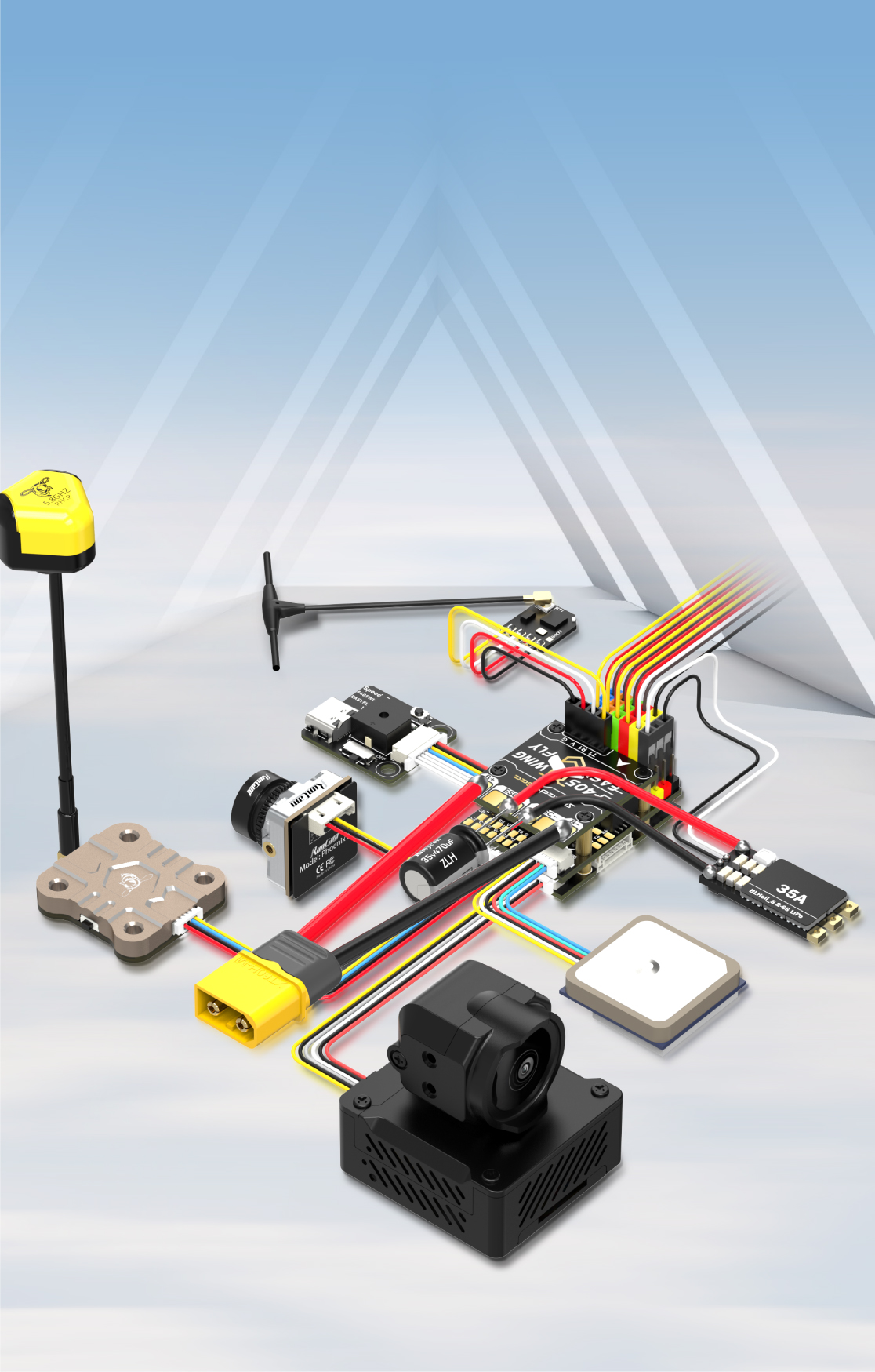

F405 WING MINI provides a tidy and straightforward installation experience. Whether connecting GPS or FPV cameras, the well-organized layout ensures quick and hassle-free connections. With labeled solder pads on the socket's back, it offers an efficient and reliable option for customization, perfectly balancing ease of use and professional-grade reliability.

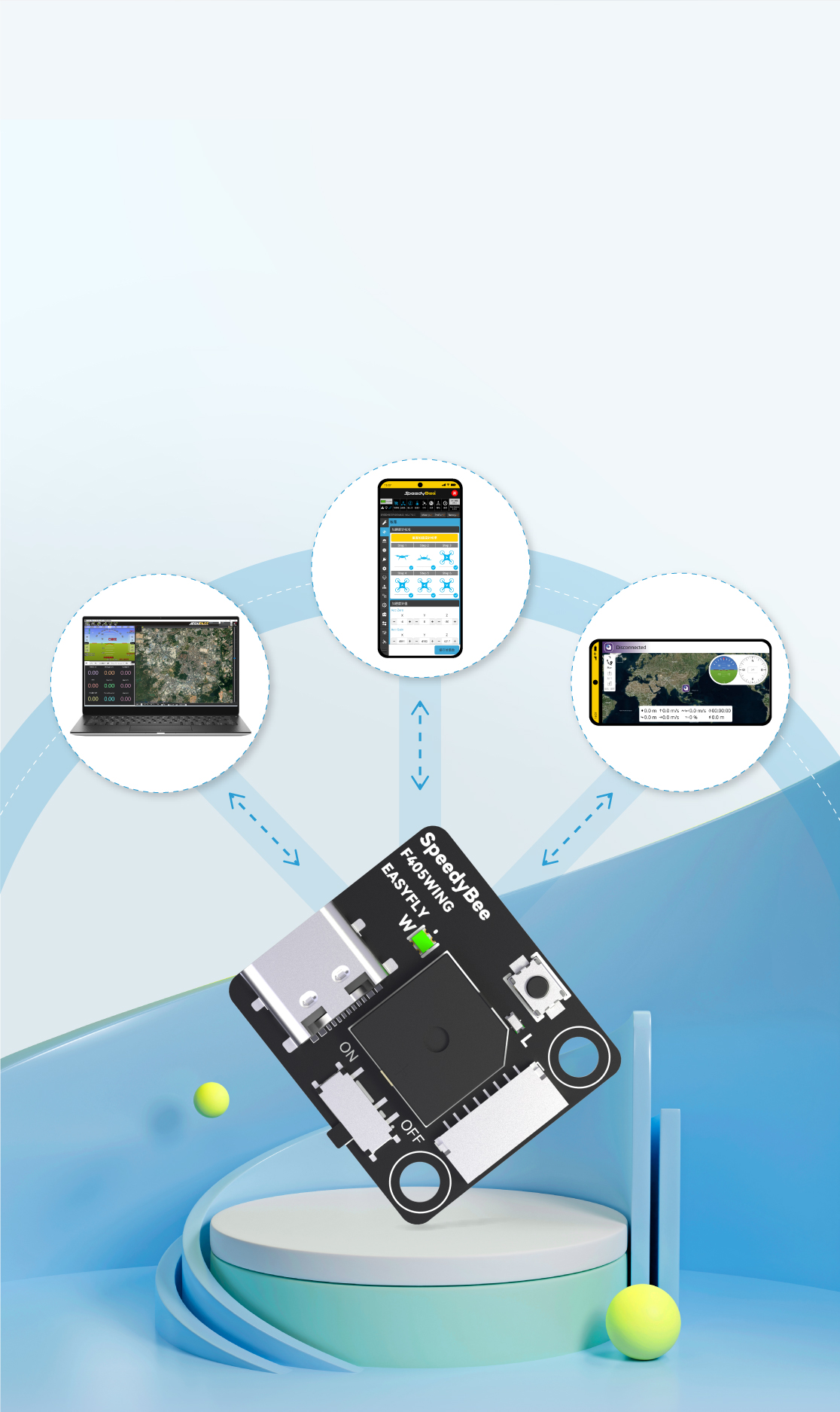

Wireless Tuning 2.0:
Elevated Performance
Elevated Performance
Instant and Stable Connectivity: F405 WING MINI's wireless tuning function has been upgraded to version 2.0, offering a smoother and more reliable experience. App-based operations are now quicker with reduced loading times. Even for long-distance adjustments, it responds rapidly, ensuring efficient and simpler tuning.
Double the View,
Double the Fun
Double the Fun
Explore Your Vision: F405 WING MINI introduces dual camera switching without the need for complex mechanisms. With a simple one-button switch, you can effortlessly capture a wide range of perspectives from different cameras. Whether you want to capture breathtaking landscapes or follow formations, every flight is an exciting exploration filled with fresh angles and joy.
*This feature currently supports switching only between analog cameras.
*This feature currently supports switching only between analog cameras.
Full MCU Pinout BreakOut:
No More Interface Confusion
No More Interface Confusion

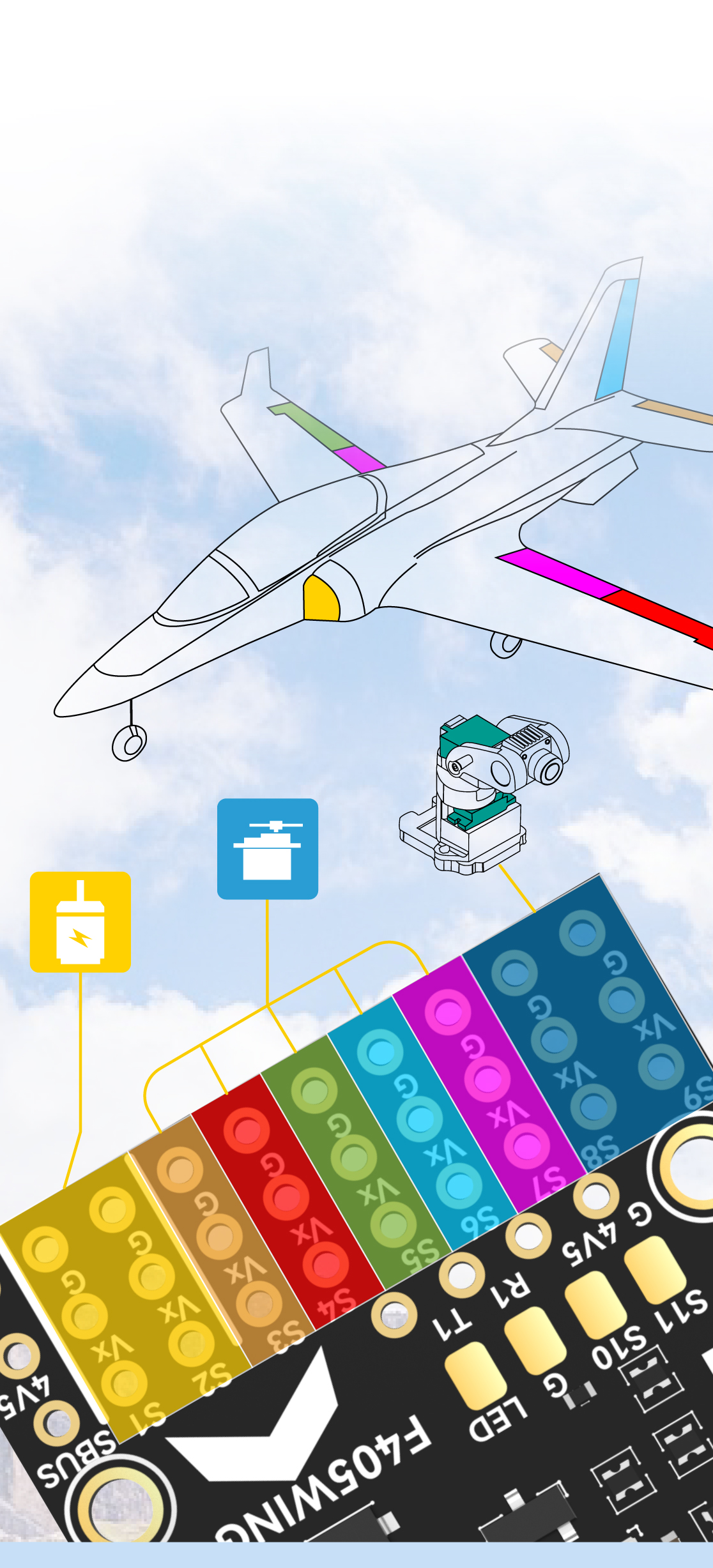

Up to 11 PWM outputs
9 straight-pin headers
3 reserved solder pads
For motor and servo control
9 straight-pin headers
3 reserved solder pads
For motor and servo control
It makes F405 WING MINI suitable for a variety of fixed-wing aircraft, including conventional layout aircraft, V-tail aircraft, aircraft with flaperons, and VTOLs.
*Please refer to the instructions for detailed output settings.
*Please refer to the instructions for detailed output settings.

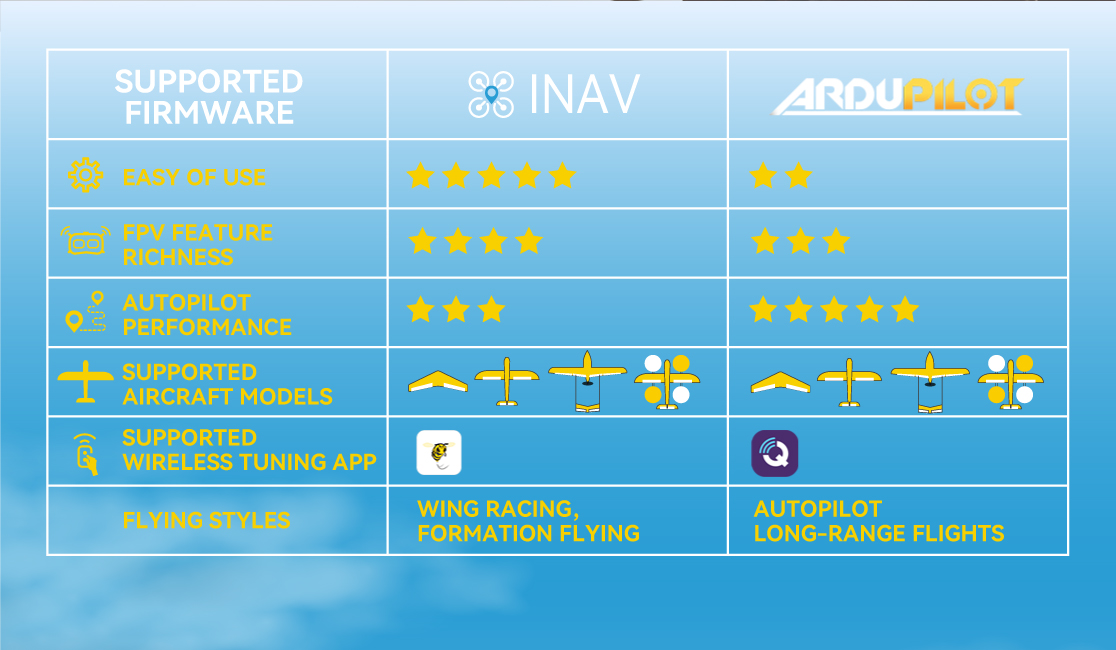

INAV / ArduPilot Dual Firmwares, Choose As You Like
INAV offers a user-friendly setup for easy FPV flight handling, while ArduPilot provides advanced capabilities to explore more challenging flying styles.
Stabilize your flight, automatic take-off, Wing Racing, Formation Flying... whether you are a beginner or an expert, F405 WING MINI can fulfill all your flying dreams.
Stabilize your flight, automatic take-off, Wing Racing, Formation Flying... whether you are a beginner or an expert, F405 WING MINI can fulfill all your flying dreams.

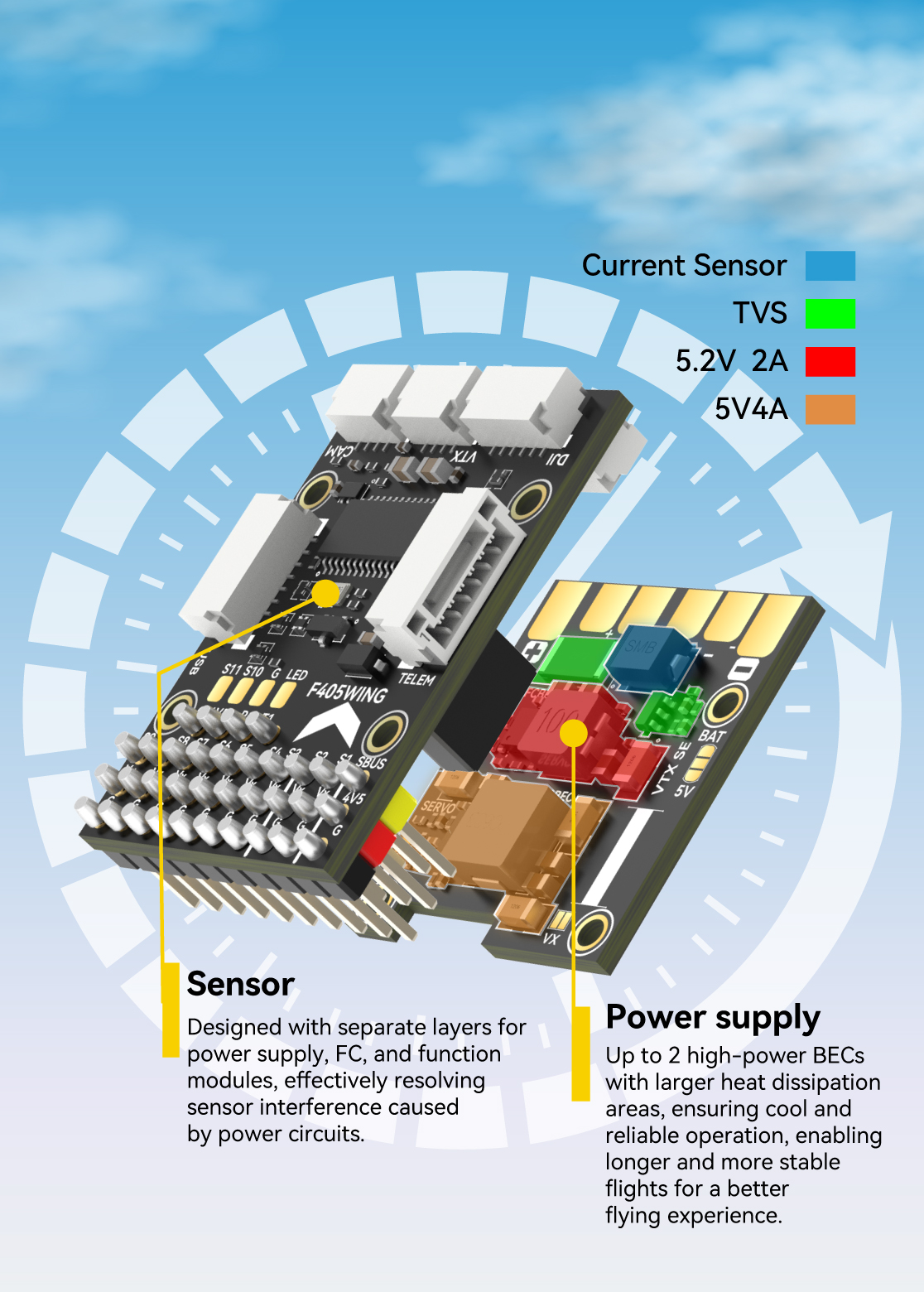

Multi-Layer PCB Design For Cool And Stable Operation Without Interference
Vertical Takeoff and Landing Fly Anywhere!
F405 WING MINI, with seamless vertical takeoff and landing, and intuitive tuning through INAV 7.0 firmware, enables enthusiasts to explore vertical flight effortlessly. F405 WING MINI is versatile, providing convenience in urban and open environments.

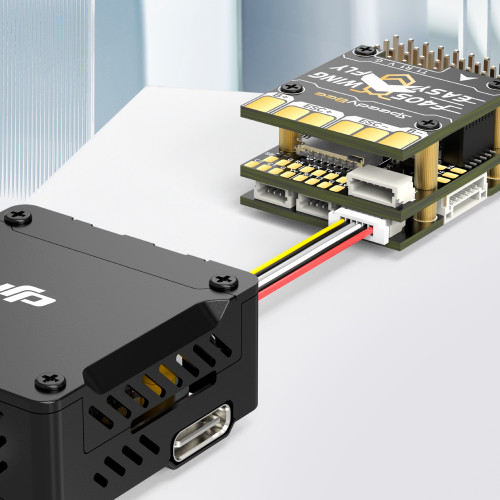

HD & Ana VTX:
Direct Plug-and-Play Interface
Direct Plug-and-Play Interface
HD and Analog, easy flying choices. F405 WING MINI's plug-and-play interface supports both HD and Analog VTX.

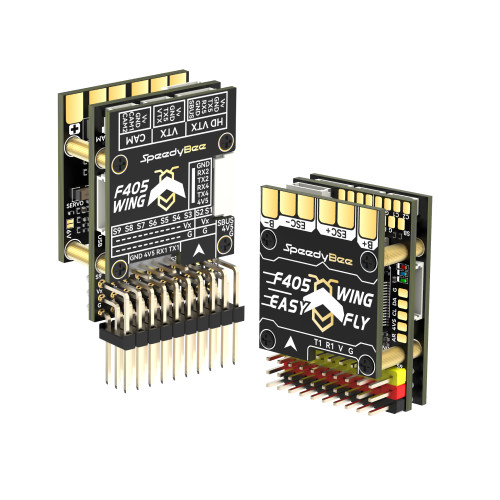

Specifications
| Product Name | SpeedyBee F405 WING MINI FC board |
| MCU | STM32F405, 168MHz, 1MB Flash |
| IMU(Gyro&Accelerometer) | ICM-42688-P |
| Barometer | SPL006-001 |
| OSD Chip | AT7456E |
| Blackbox | MicroSD Card Slot |

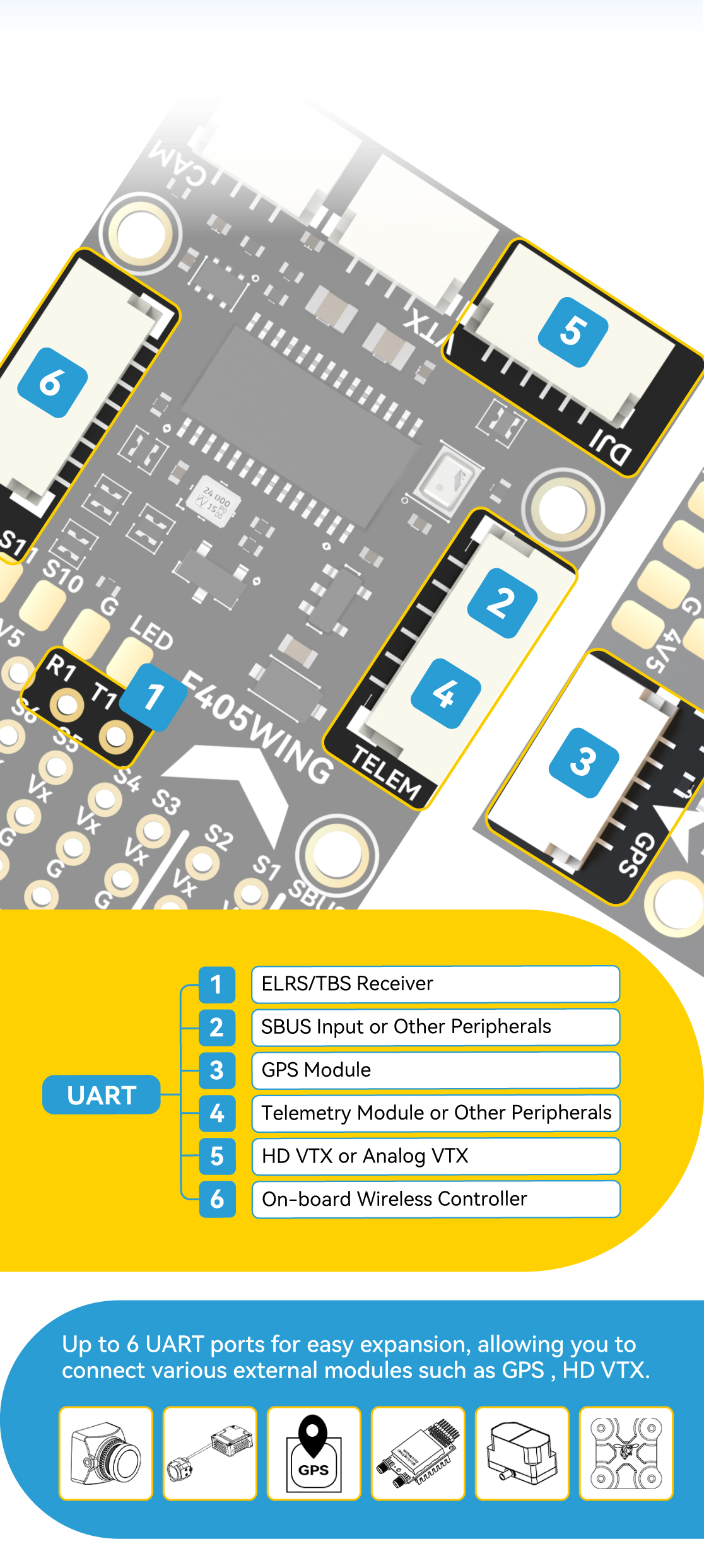

| UART | 6 sets (USART1, USART2, USART3, UART4, UART5, UART6 - Dedicated for Wireless board Telemetry connection) |
| I2C | 1x Used for magnetometer, digital airspeed sensor |
| ADC | 4x (VBAT, Current, Analog RSSI, Analog AirSpeed) |
| PWM | 12x (9x pin headers + 2x solder pads + 1x "LED" pad) |
| ELRS/CRSF Receiver | Supported, connected to UART1 |
| SBUS | Built-in inverter for SBUS input (UART2-RX) |
| LED | 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator (Red) |
| Analog RSSI | Supported, Named as "RS" |
| Dual Analog Camera Switching | Default to Camera1 Video Input (C1). Switch between C1 and C2 using ArduPilot Relay or INAV Modes/USER. Both cameras should have the same video format, either PAL or NTSC. |
| Supported FC Firmware | INAV: SpeedyBeeF405WING (default) ArduPilot: SpeedyBeeF405WING |
| Weight | 5.6g |
| Product Name | SpeedyBee F405 WING MINI PDB board |
| Input voltage range | 7~26V (2~6S LiPo) |
| Battery Voltage Sensor | Connect to FC board VBAT, 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot) |
| Battery Current Sensor | 80A continuous, 150A peak Connect to FC board Current (Scale 195 in INAV, 50 A/V in ArduPilot) |
| TVS Protective diode | Yes |
| FC BEC output | Output 5.2V +/- 0.1V DC Continuous current 2 Amps, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed Sensor, Telemetry module |

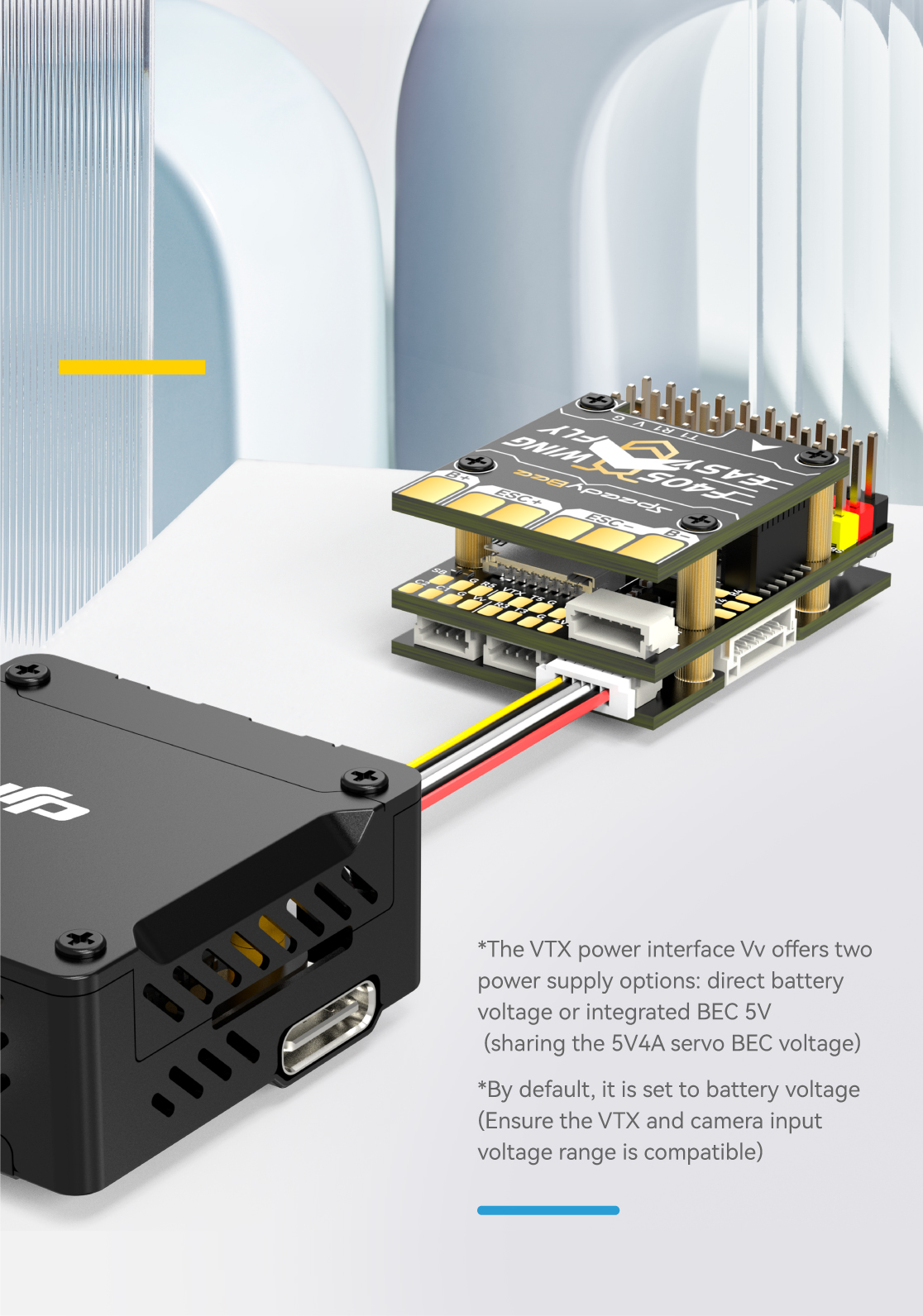

| VTX & Camera power supply | The VTX power interface Vv offers two power supply options: direct battery voltage or integrated BEC 5V (sharing the 5V4A Servo BEC voltage) By default, it is set to battery voltage (Ensure the VTX and camera input voltage range is compatible) Switching to 5V power supply is possible via pad jumper (using Servo BEC output) (If using this method, ensure the current requirements for both servo and VTX are sufficient) |
| Servo BEC output | Output 5V +/- 0.1V DC Continuous current 4 Amps, 5A Peak Voltage adjustable, 5V Default, 6V via jumper Designed for Servos. |
| Weight | 5.5g |
| Product Name | SpeedyBee F405 WING MINI Wireless USB Extender |
| Wireless Configuration (long press BOOT button for 6 seconds to switch modes) INAV:Please make sure the MSP switch on UART 6 is turned on and set to a baud rate of 115200 ArduPilot:Please make sure the Serial 6 is set to baud rate 115200 and protocol Mavlink2 |
BLE mode, connect to Speedybee APP |
| Wi-Fi (AP)mode, able to connect to Speedybee APP, QGroundControl APP, MissionPlanner, etc. WiFi: Speedybee eFLY-WIFI Password: 88888888 | |
| Wi-Fi (STA)mode, able to connect to QGroundControl APP, MissionPlanner, etc. Step 1: turn on Personal Hotspot; Step 2: Set hotspot, locate NAME/Device Name/Hotspot name/etc. Step 3: change the current name to eFLY and the password is, 88888888 |
|
| Wireless off mode | |
| USB Port Type | Type-C |
| Buzzer | 5V Active Buzzer |
| Weight | 3.2g |
