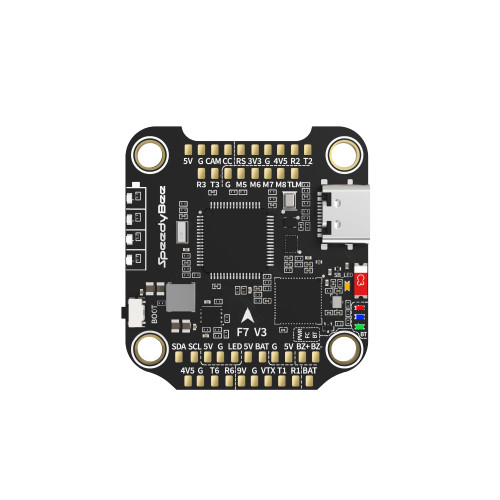

SpeedyBee F7 V3 Flight Controller
€56.47
€41.23
SH 1.0mm 8pin cable( for FC-ESC connection )
€1.34 - €1.78

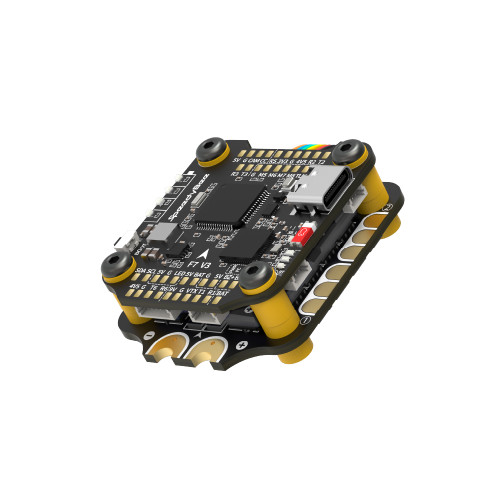

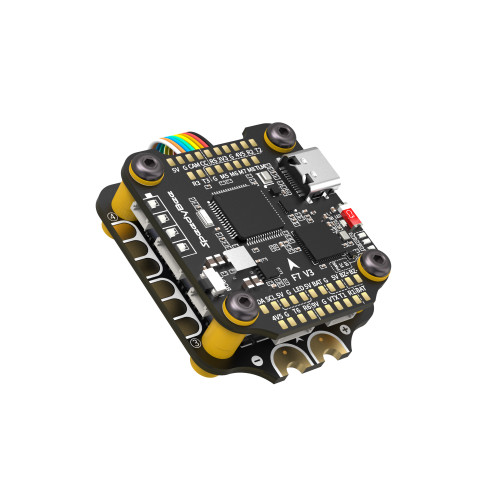

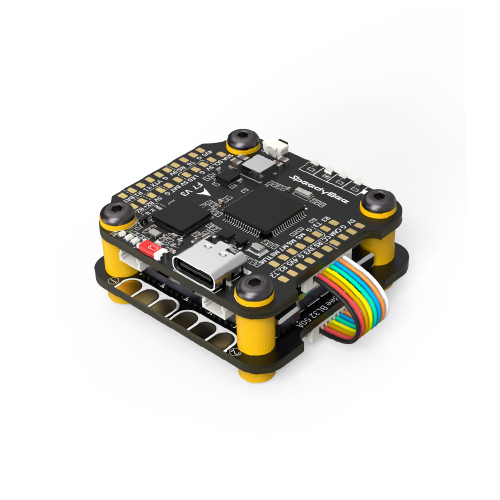

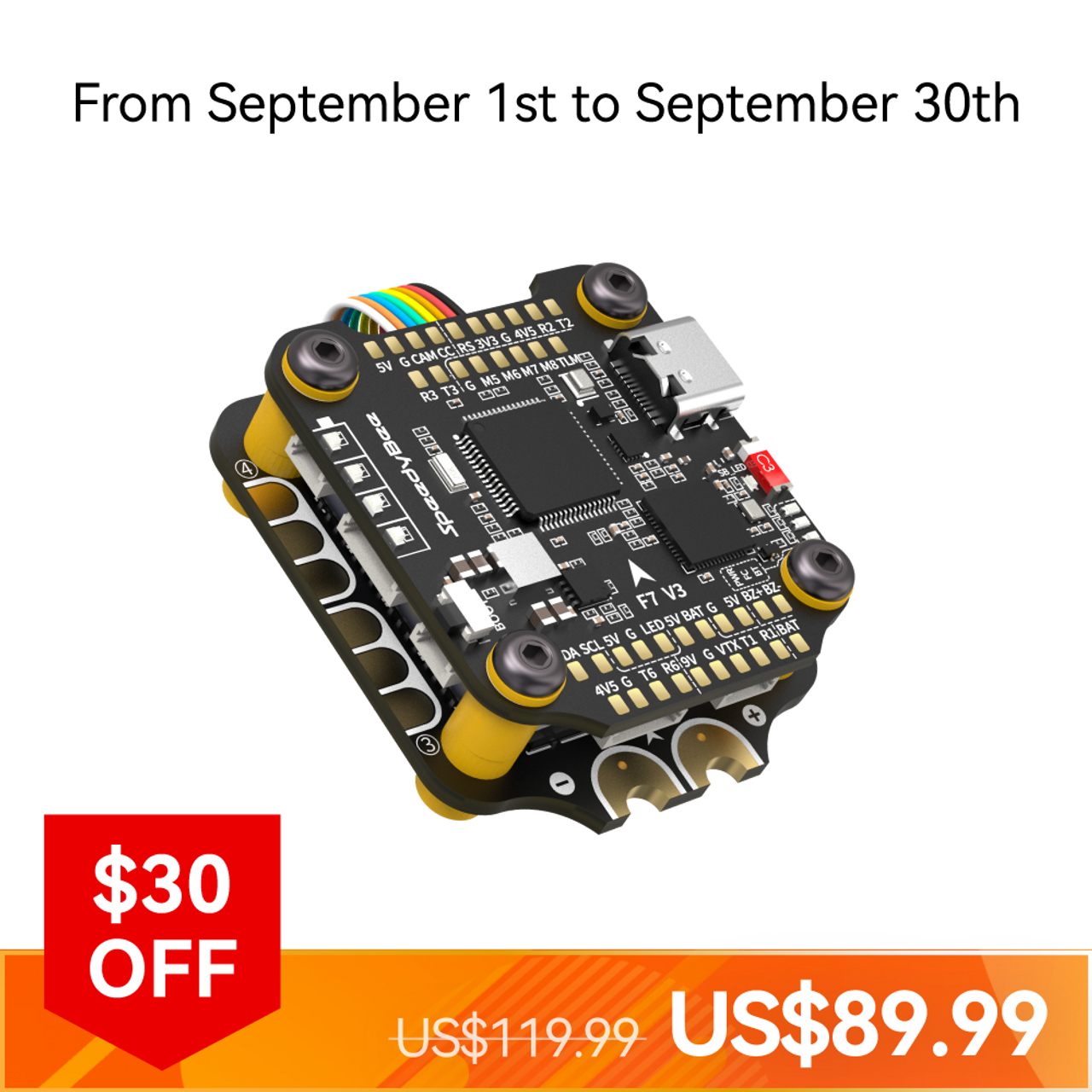

SpeedyBee F7 V3 BL32 50A 30x30 Stack

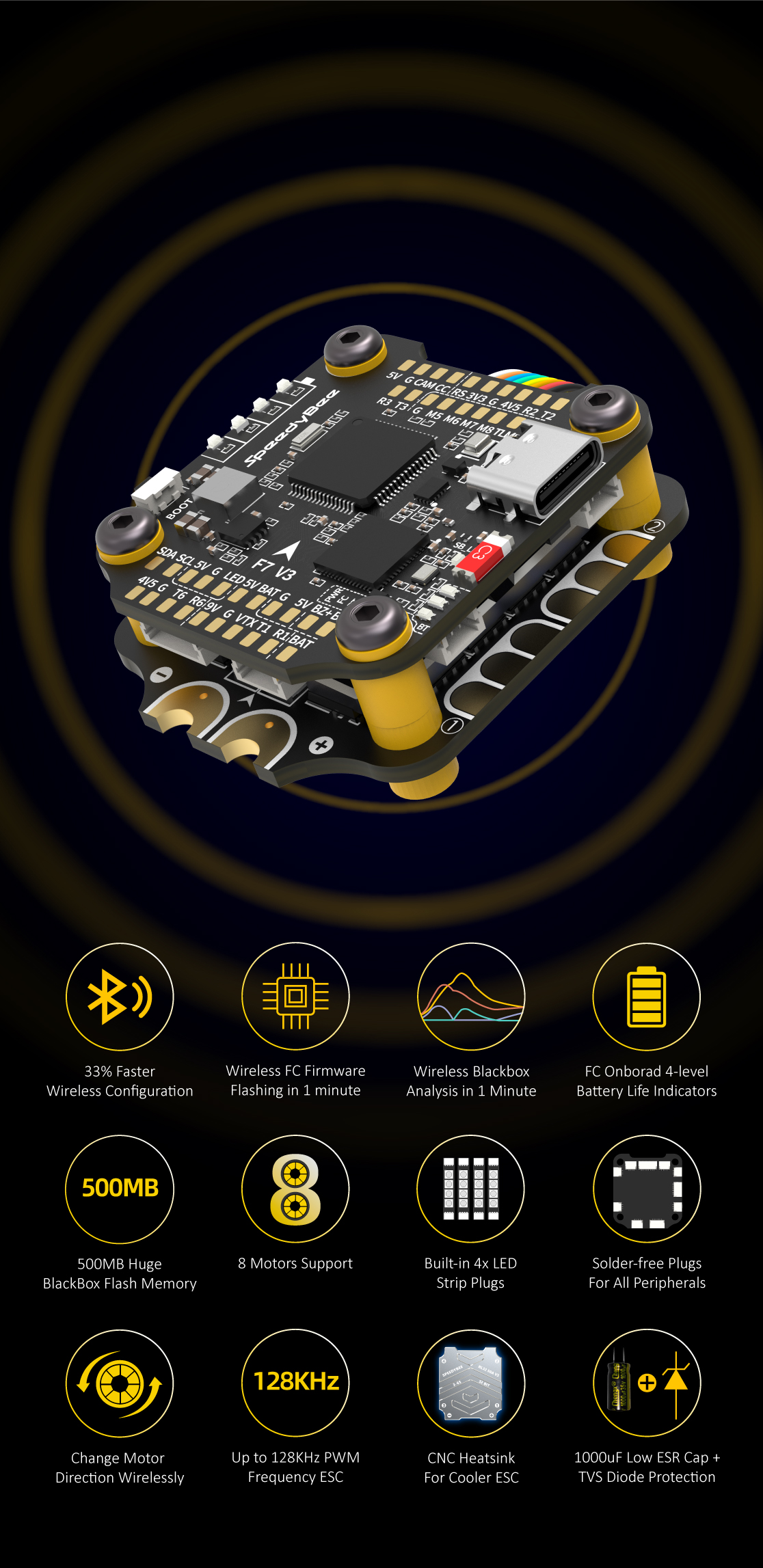

NOW THIS IS A REAL
FLAGSHIP STACK
FLAGSHIP STACK

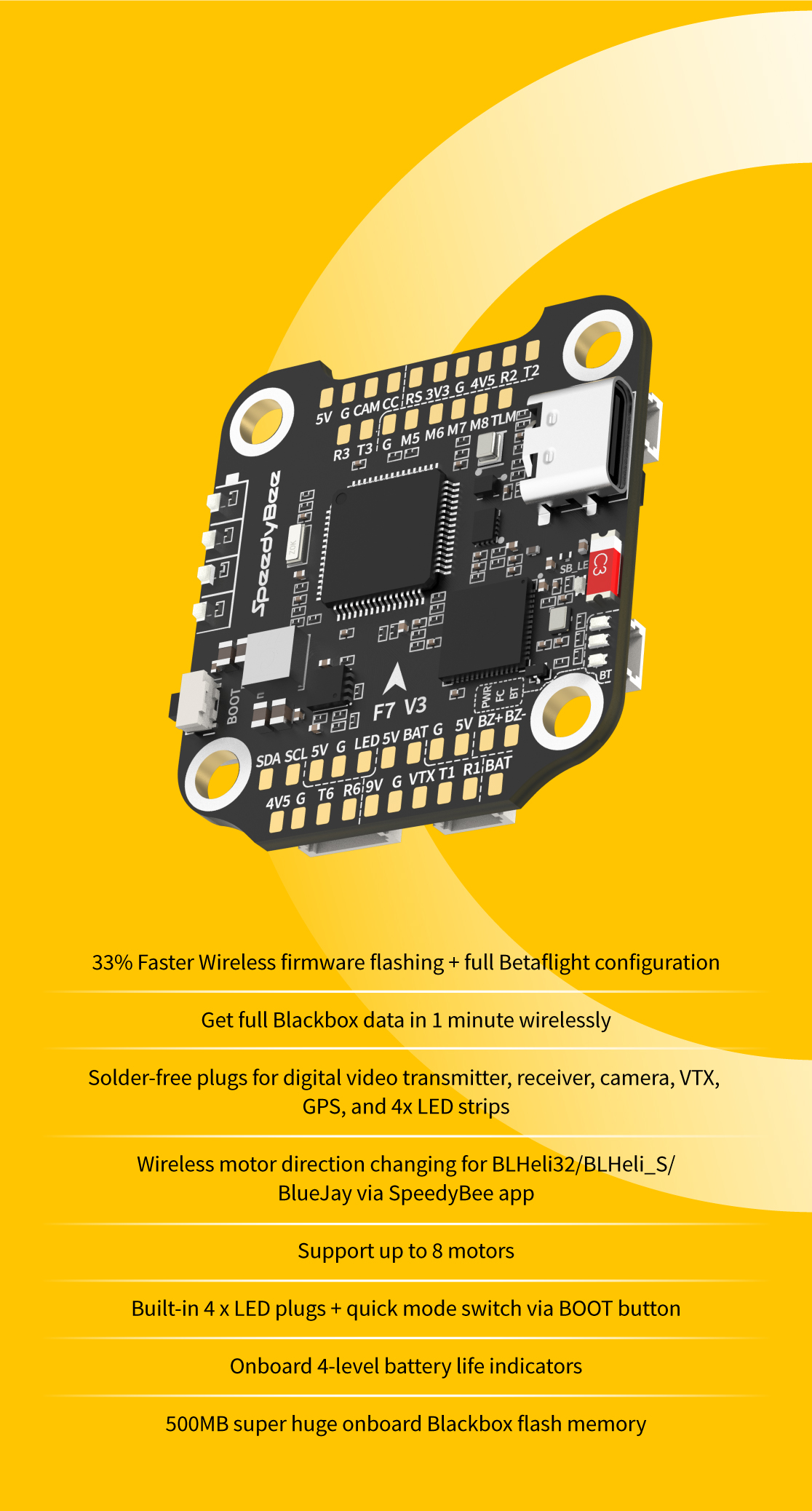

SpeedyBee F7 V3
PREMIUM SPEC.
AFFORDABLE PRICE
AFFORDABLE PRICE

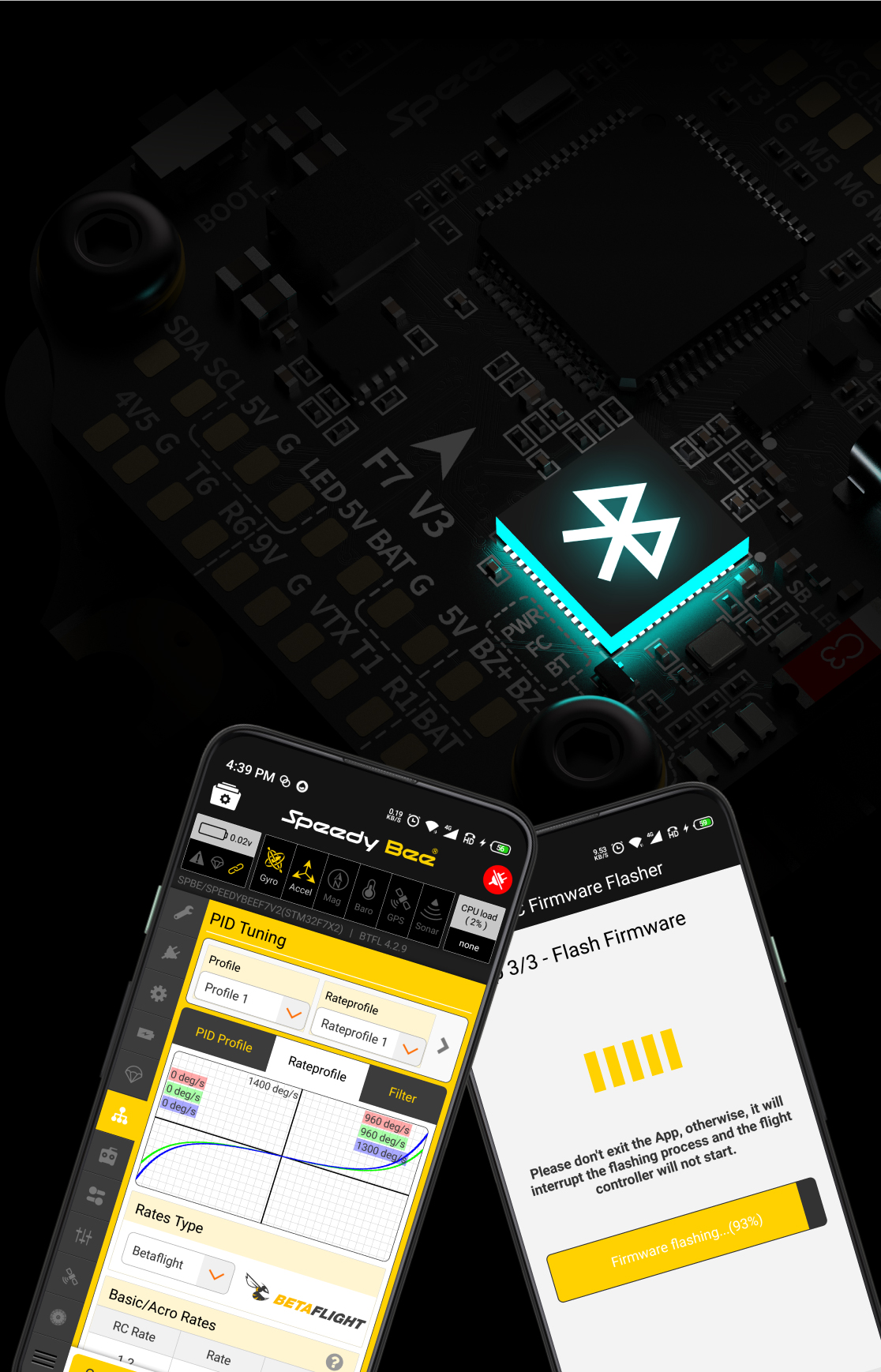

Flash your firmware 33% faster
wirelessly + full FC configuration
wirelessly + full FC configuration
Built with a better Bluetooth/WiFi 2-in-1 chip for 33% faster wireless data
transfer. Update FC firmware with your smartphone in just 1 minute!
Connect this FC via Bluetooth and fully configure any setting for
Betaflight/INAV as you want.
transfer. Update FC firmware with your smartphone in just 1 minute!
Connect this FC via Bluetooth and fully configure any setting for
Betaflight/INAV as you want.

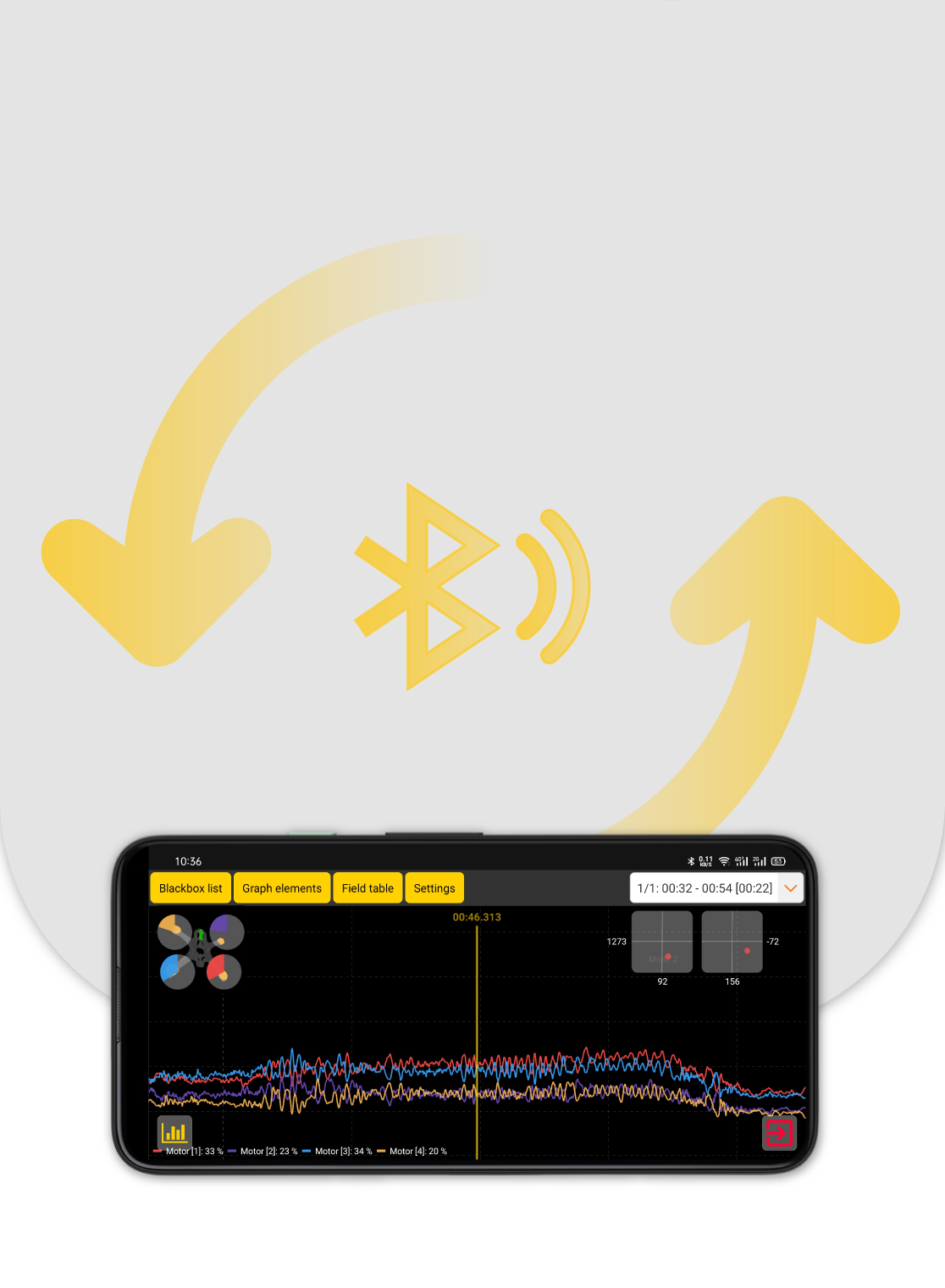

Get your Blackbox data in
1 minute anytime, anywhere
1 minute anytime, anywhere
With an optimized algorithm and upgraded Bluetooth/WiFi chip, you can
dive into your Blackbox data every time you land your quad. Just take
your smartphone out, connect, and download your flight in 20 seconds.
The path to progress has never been easier.
dive into your Blackbox data every time you land your quad. Just take
your smartphone out, connect, and download your flight in 20 seconds.
The path to progress has never been easier.

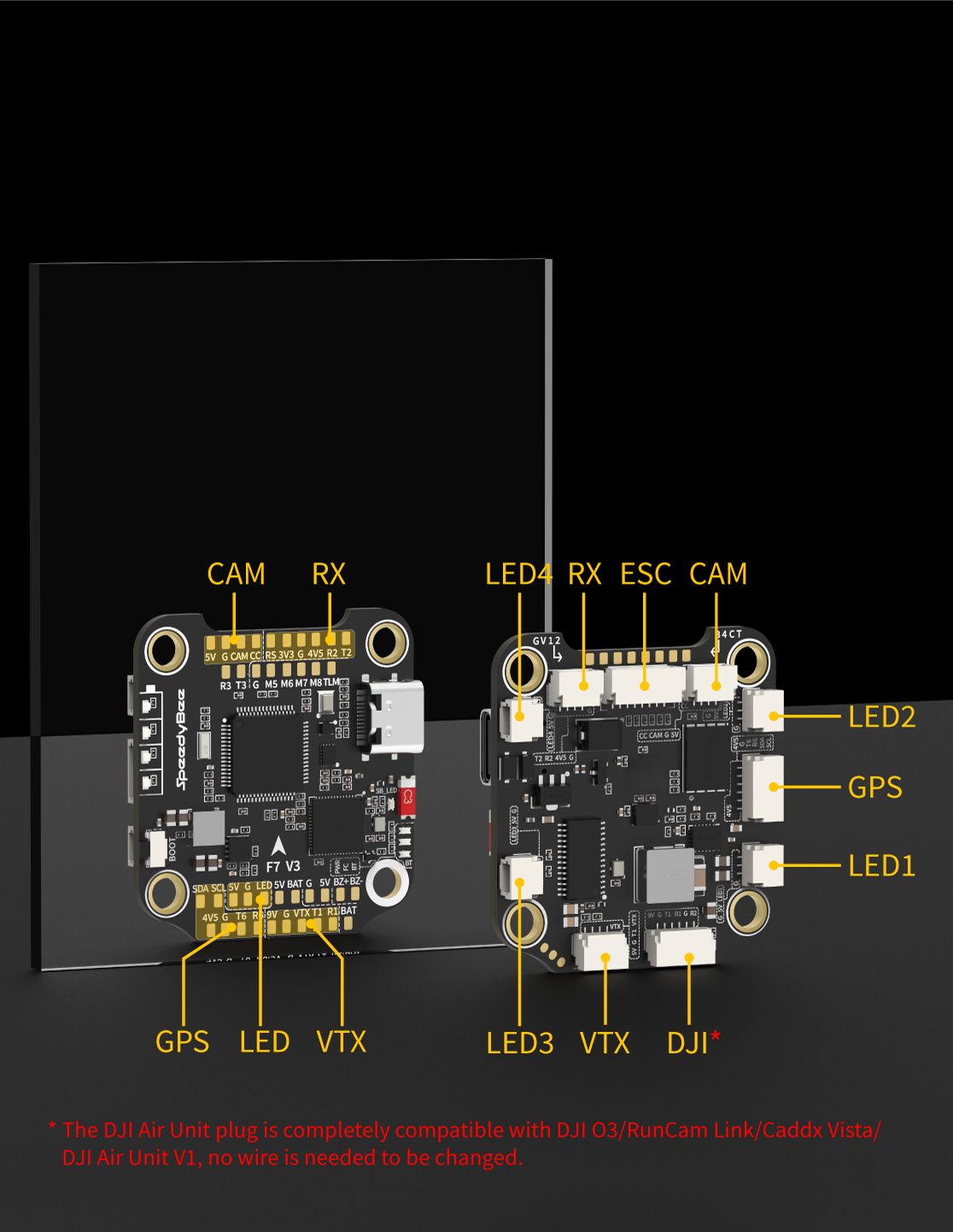

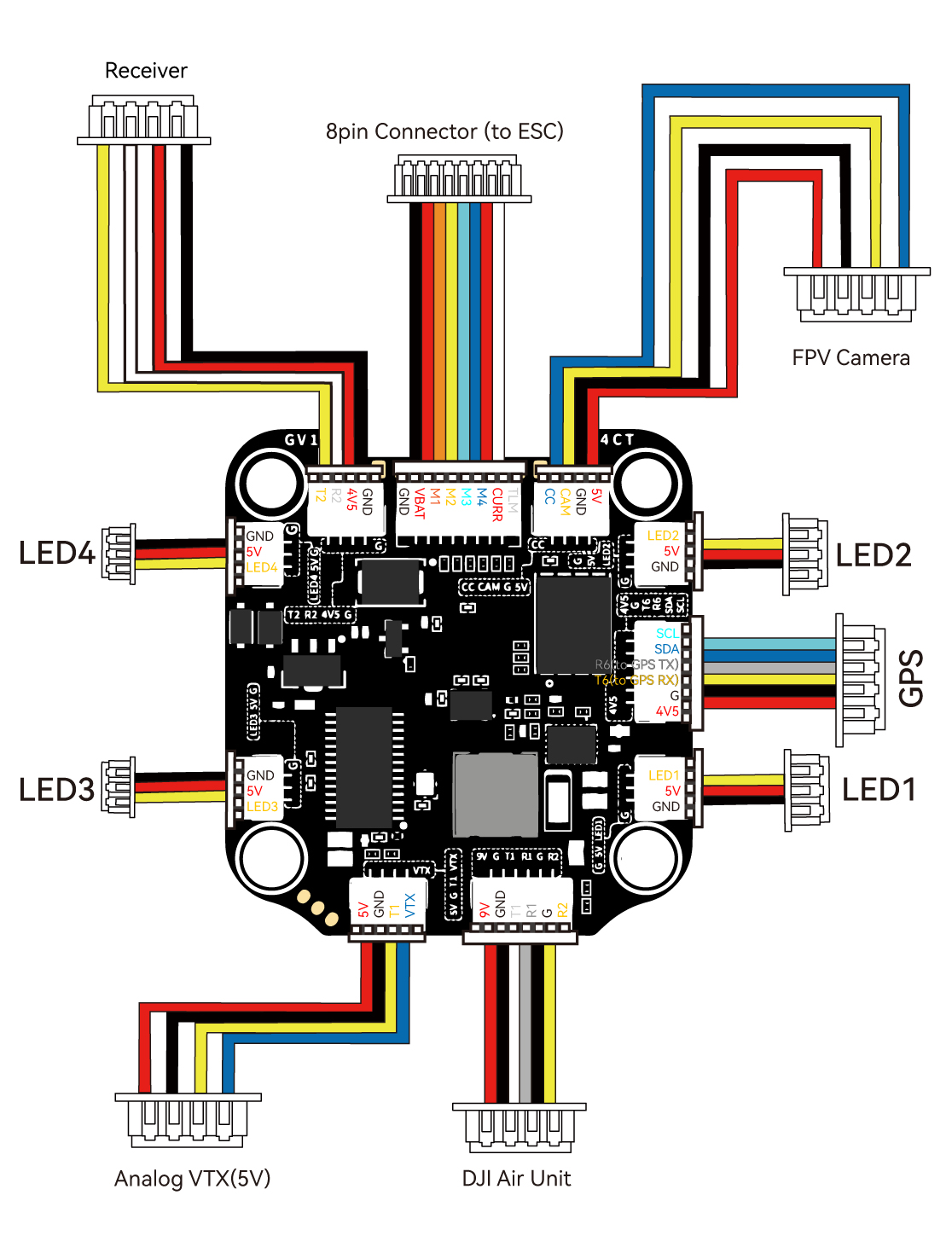

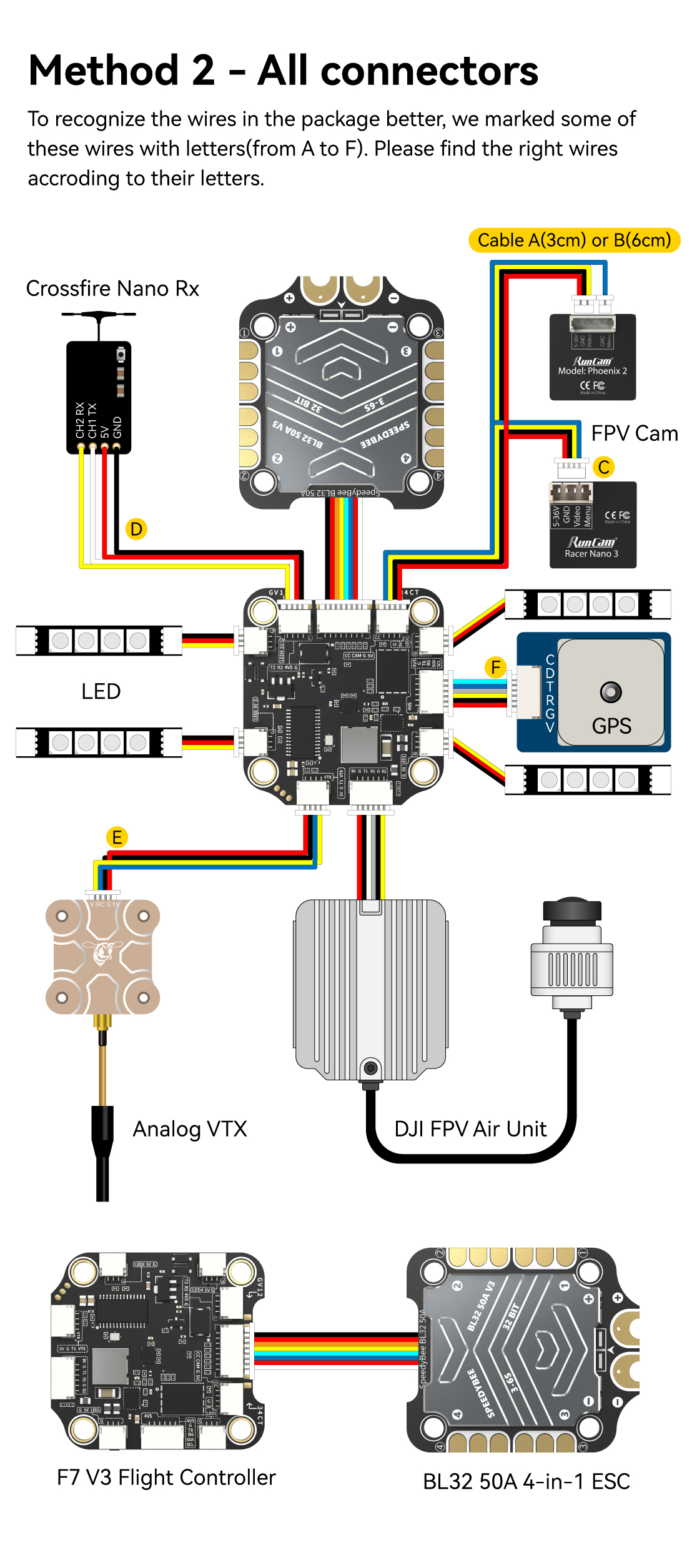

Hate soldering?
Just plug them all in!
Just plug them all in!
It’s 2022, so having a plug vs soldering option is a must! Plug in your
digital video transmitter, receiver, camera, VTX, and GPS to complete
your build in no time. Also comes with 4x LED plugs so you can light
up your quad with no headache. Prefer soldering? Just flip the board
and start working on it.
digital video transmitter, receiver, camera, VTX, and GPS to complete
your build in no time. Also comes with 4x LED plugs so you can light
up your quad with no headache. Prefer soldering? Just flip the board
and start working on it.
Change your motor
direction wirelessly
direction wirelessly
Finishing your latest build? Just replaced your
motor after a crash? Take your smartphone out,
and configure your motor direction wirelessly
with the latest SpeedyBee app. Works for all
BLHeli32 / BLHeli_S / BlueJay ESCs.
motor after a crash? Take your smartphone out,
and configure your motor direction wirelessly
with the latest SpeedyBee app. Works for all
BLHeli32 / BLHeli_S / BlueJay ESCs.

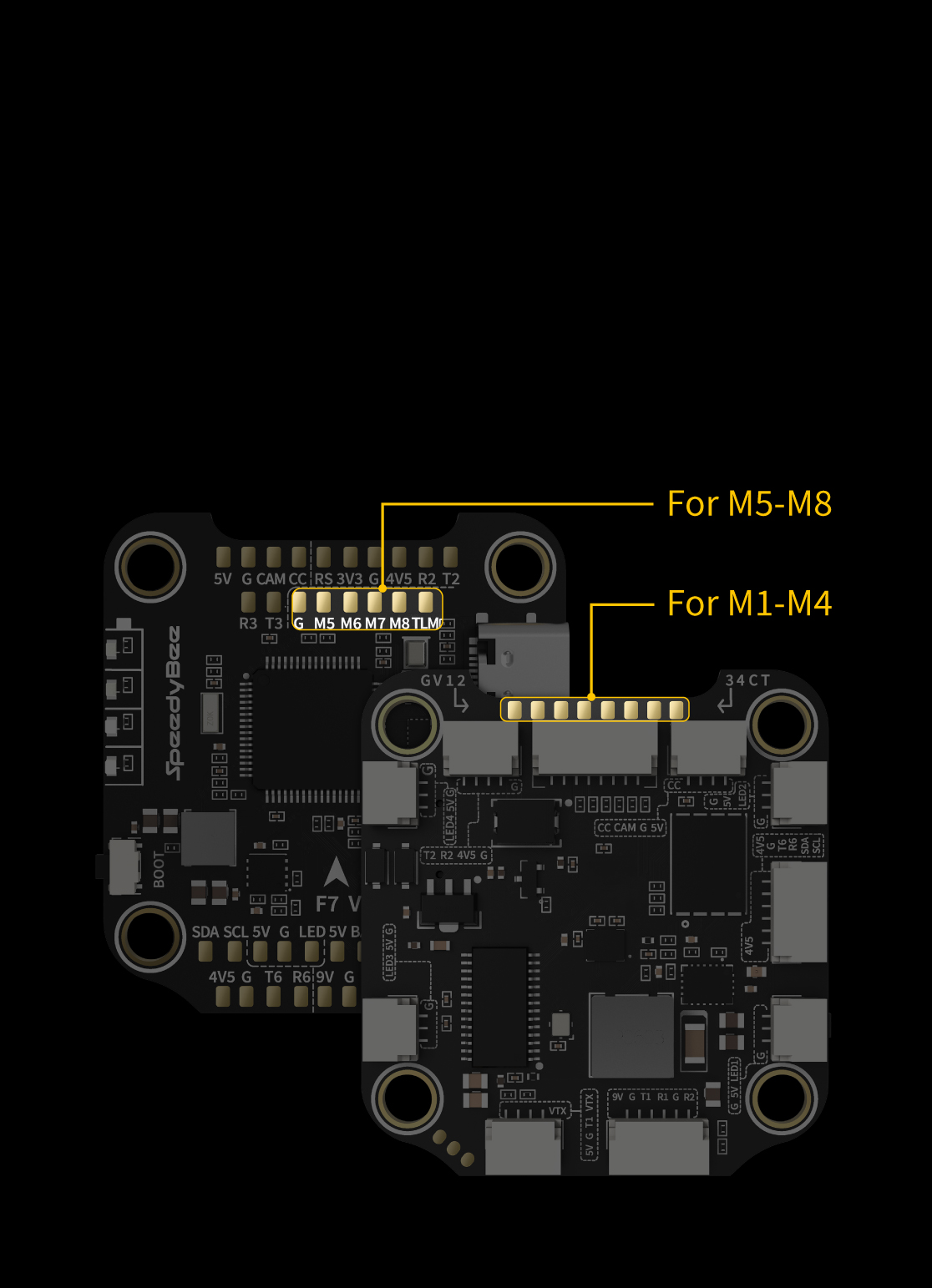

8 motors output, perfect for
your X8 cinelifters!
your X8 cinelifters!
There’s no other X8 flight controller better than this. Forget about
crawling through your massive build just to plug in that USB cable.
Just take out your phone to configure that X8 monster wirelessly
before that challenging commercial shot. Professional FPV pilots
got no time to waste.
crawling through your massive build just to plug in that USB cable.
Just take out your phone to configure that X8 monster wirelessly
before that challenging commercial shot. Professional FPV pilots
got no time to waste.
Light up your quad in no time
with 4x LED plugs
with 4x LED plugs
Need more visibility at night? Just plug in your LEDs and blaze the
darkest trail you can find, no soldering required. With just one tap
on the Boot button, you can cycle through all different LED presets*
and pick the one you love!
darkest trail you can find, no soldering required. With just one tap
on the Boot button, you can cycle through all different LED presets*
and pick the one you love!
*Or long press the boot button to switch to Betaflight LED mode

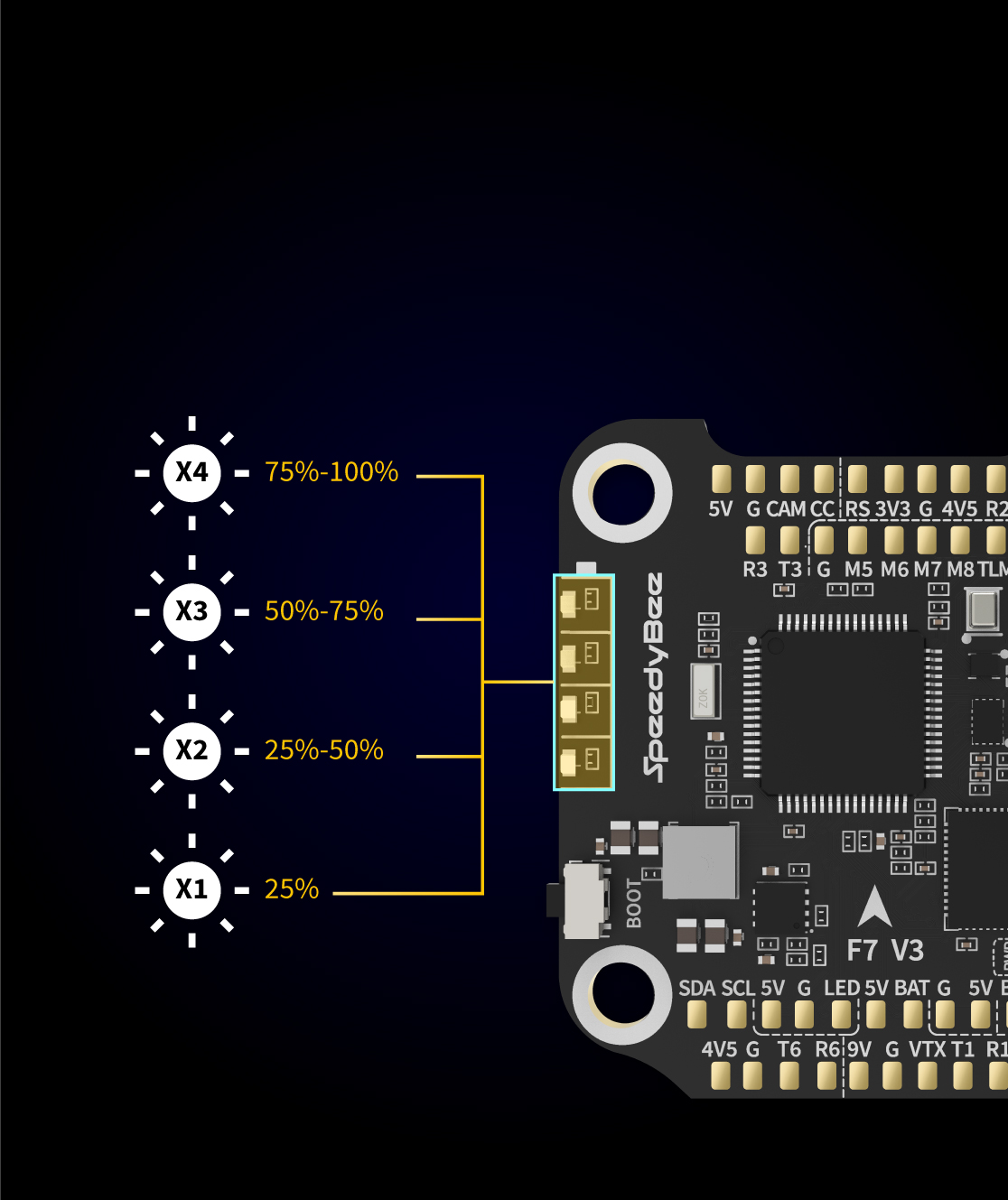

Forgot your LiPo checker?
Just look at the FC!
Just look at the FC!

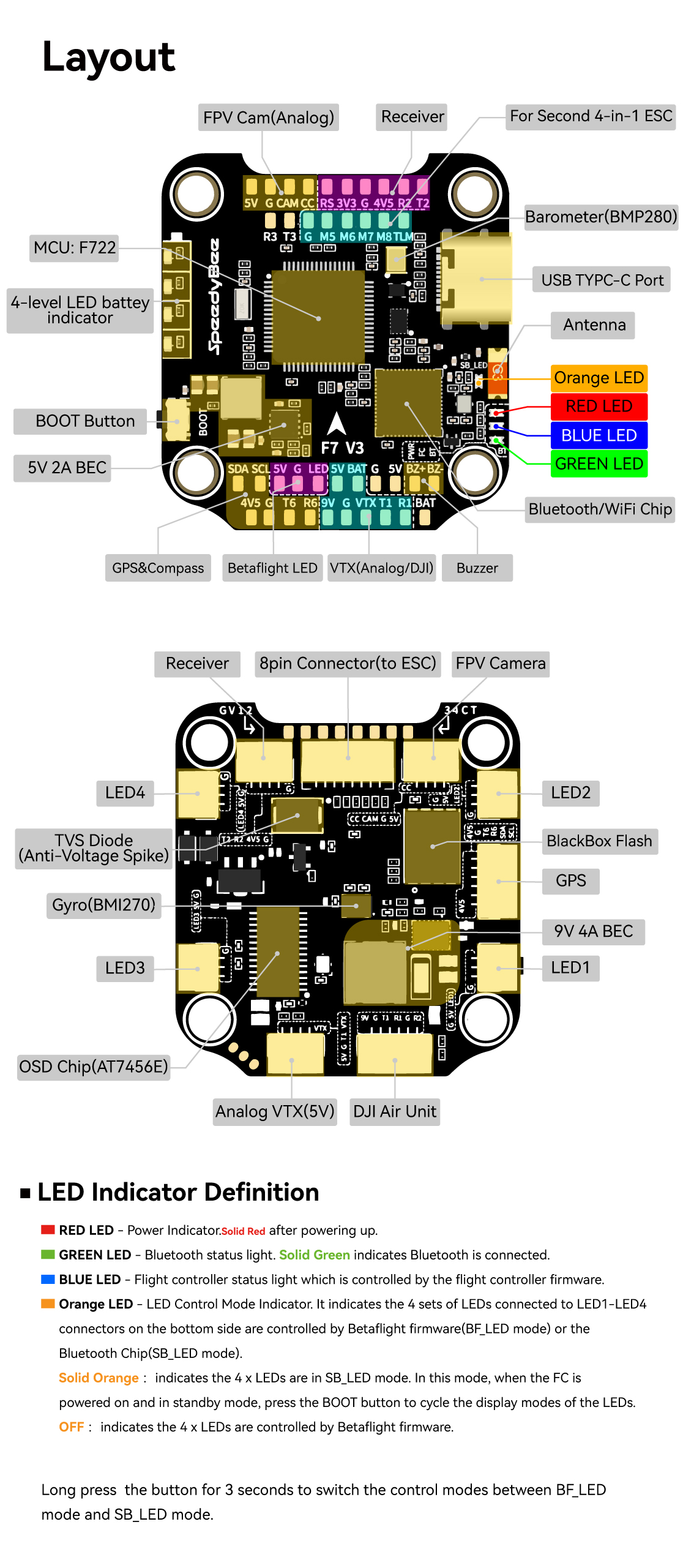

Built with a 4-level LED battery indicator, now you can fly anywhere
worry-free - even without your lipo checker!
worry-free - even without your lipo checker!

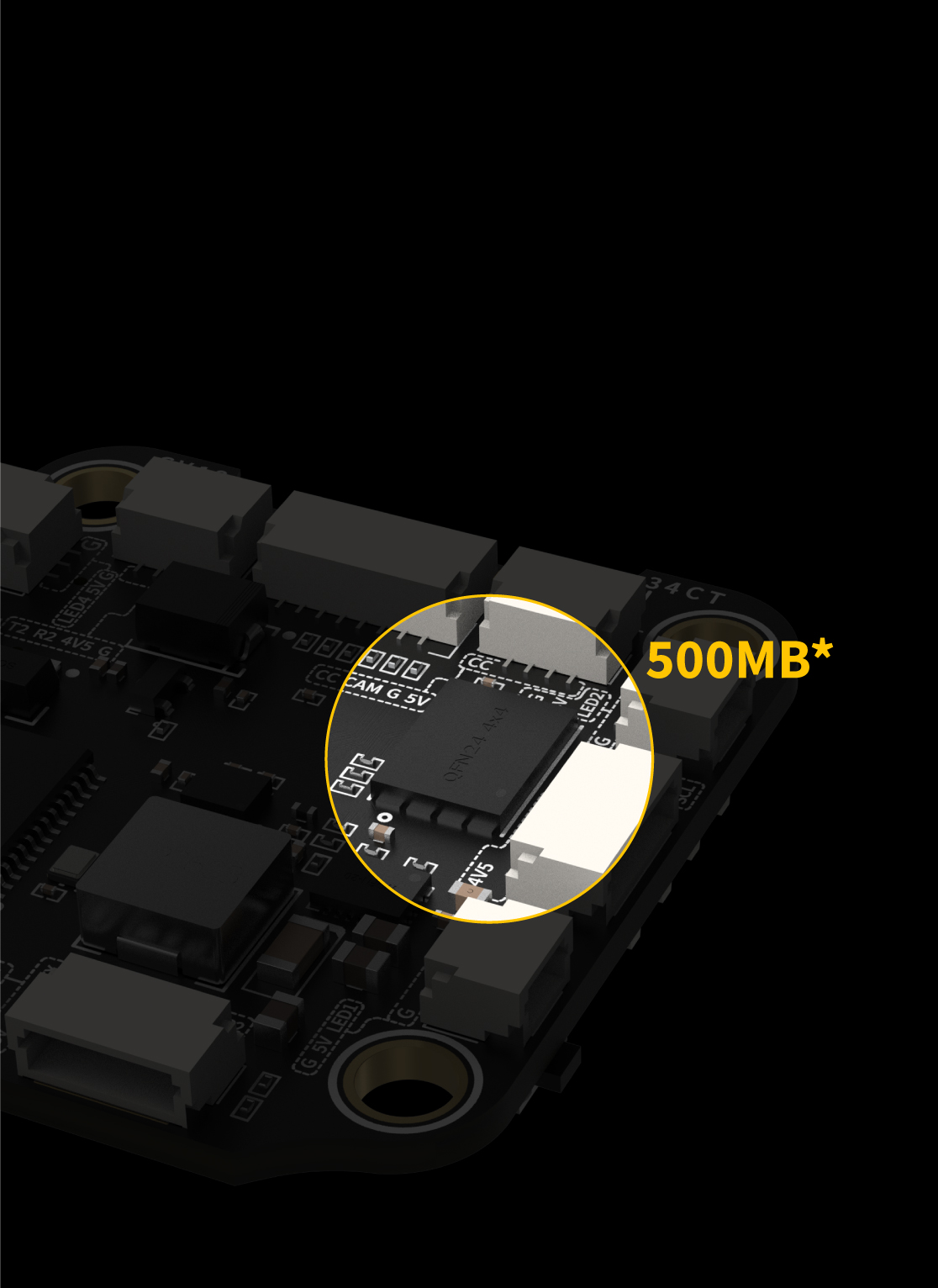

32MB (typical FC memory) X 16
=500MB onboard Blackbox
flash memory
=500MB onboard Blackbox
flash memory
Store up to 100 complete flights with our huge 500MB onboard
Blackbox flash memory. Or keep your encrypted Area 51 files in
it for your top-secret Man in Black mission. Whatever suits your
tactical purpose.
Blackbox flash memory. Or keep your encrypted Area 51 files in
it for your top-secret Man in Black mission. Whatever suits your
tactical purpose.
rate of 1000(instead of 1024), so the display capacity on your
computer will be slightly less than 500MB.

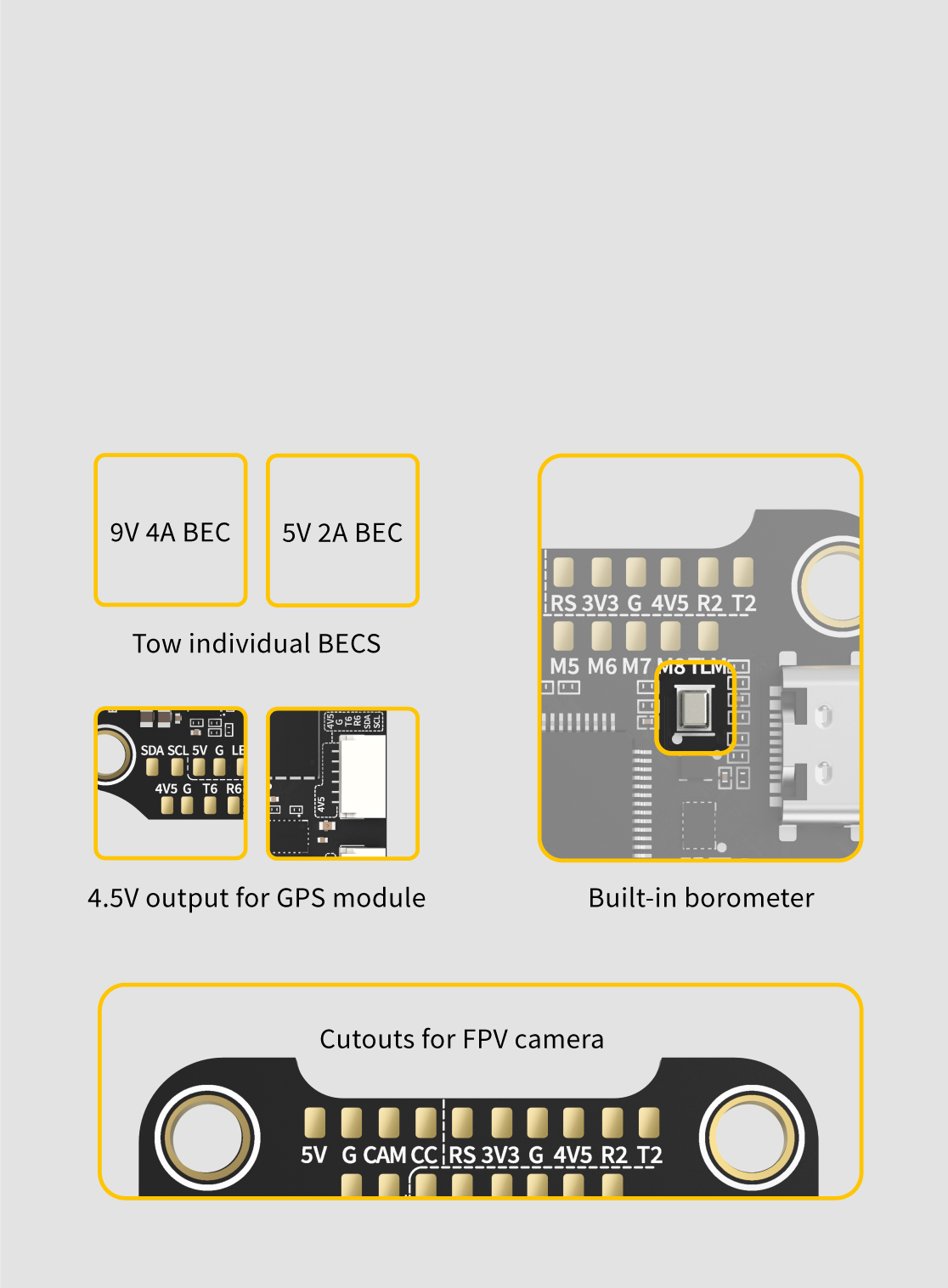

And packed with other useful
features
features
● 9V 4A + 5V 2A individual BECs
● Power your GPS with a USB cable - no battery needed
● 22mm cutouts for FPV camera in your tight build
● Built-in barometer for accurate height calculation
● Power your GPS with a USB cable - no battery needed
● 22mm cutouts for FPV camera in your tight build
● Built-in barometer for accurate height calculation

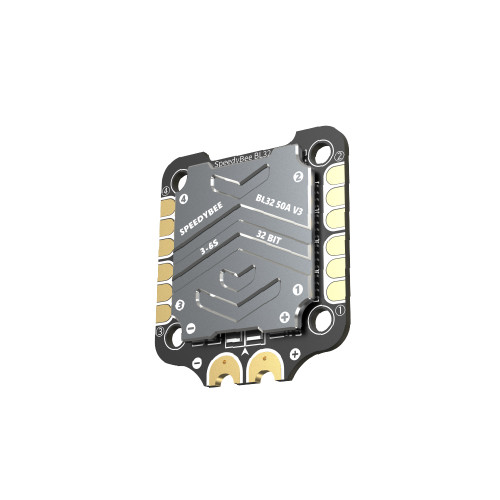

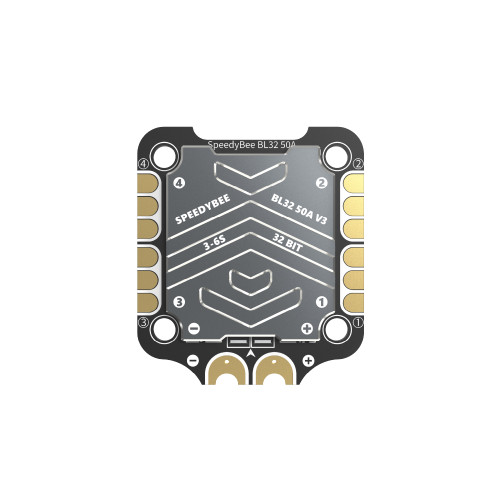

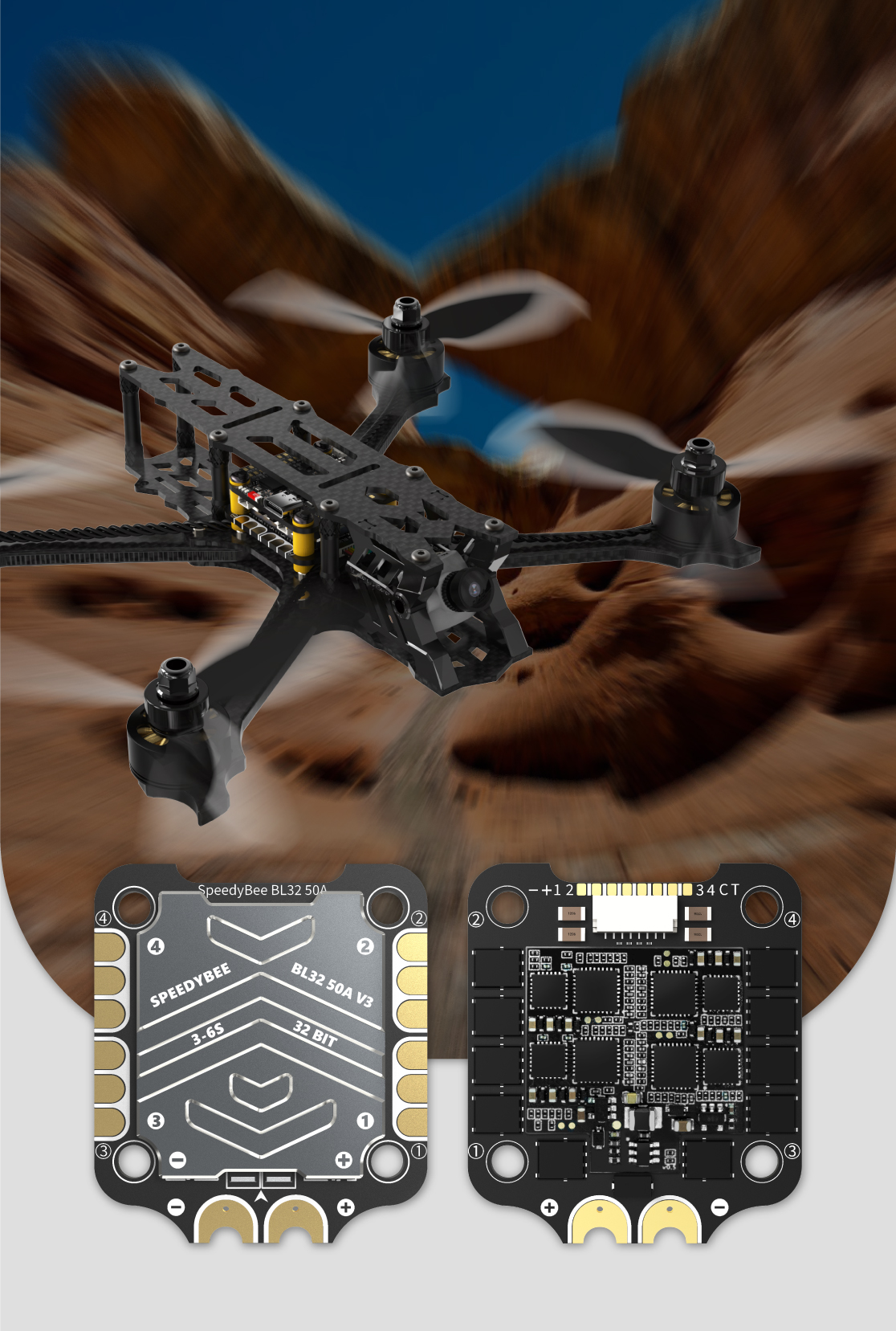

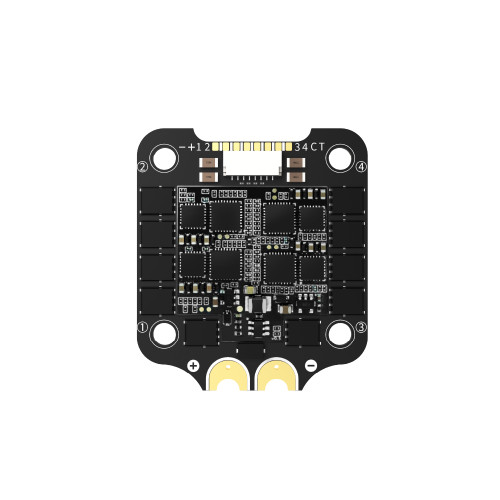

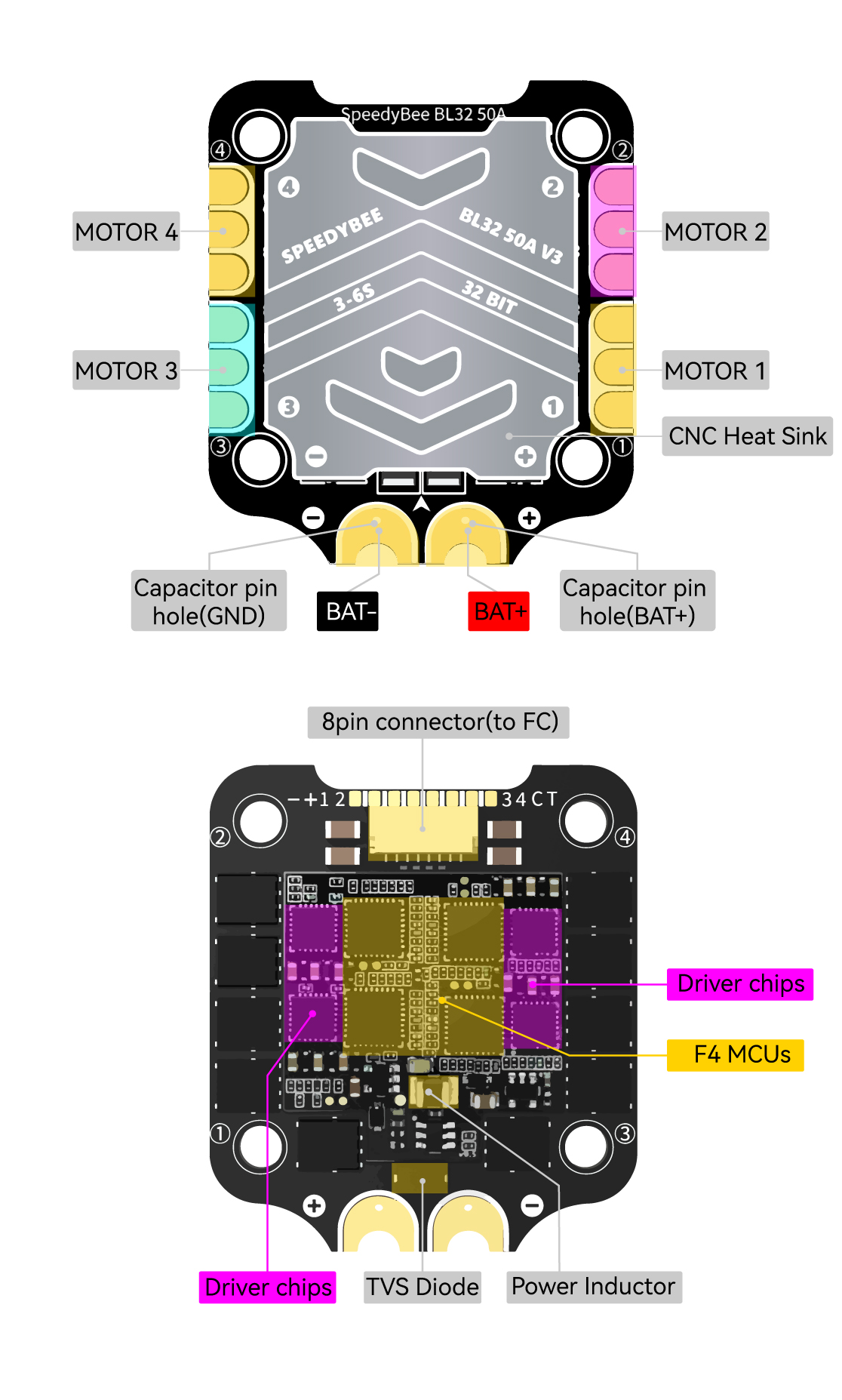

SpeedyBee BL32 50A 4-in-1 ESC

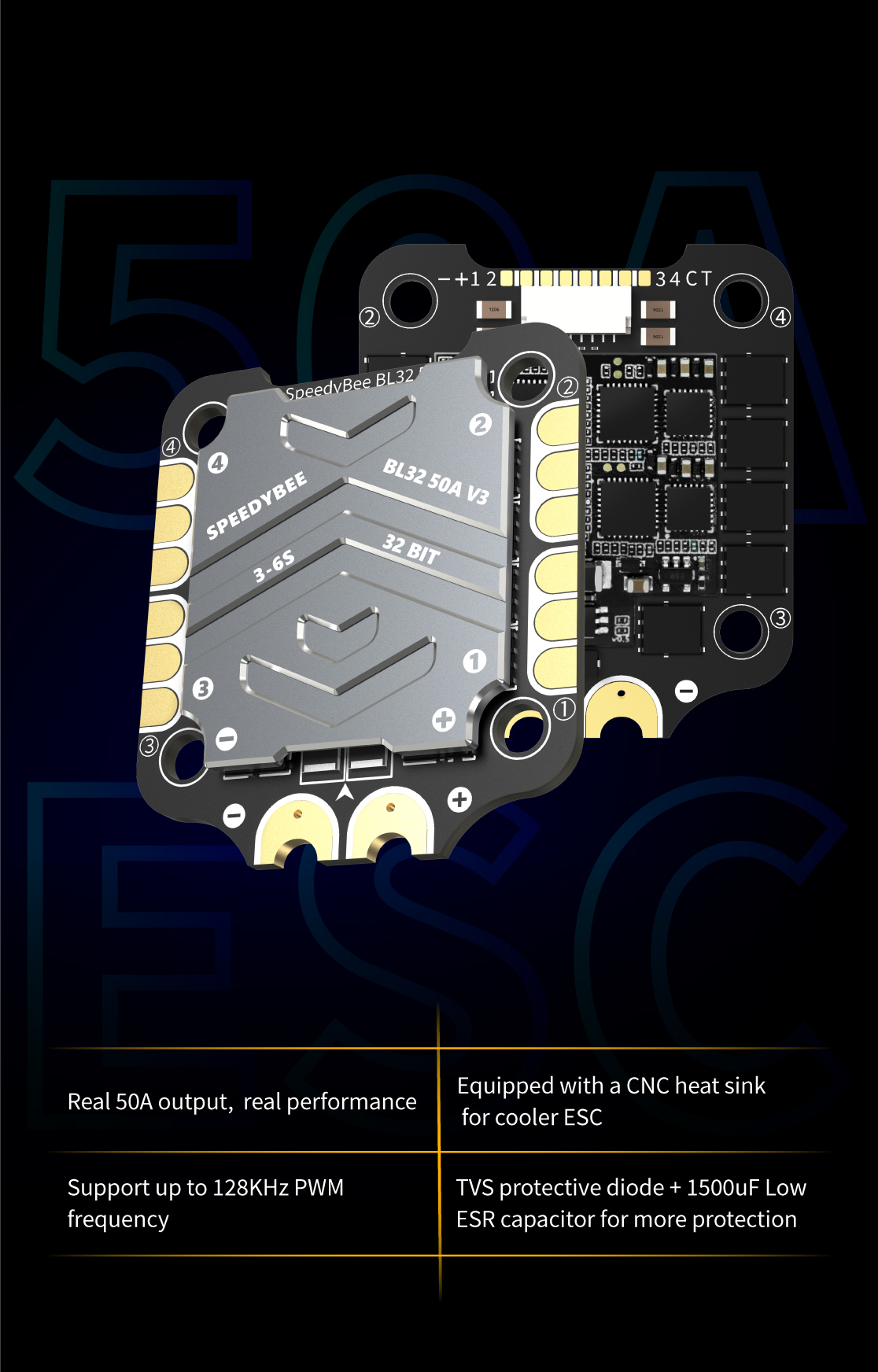

50A ESC MADE FOR CHAMPIONS
When we say 50A, we mean it.
Real 50A output, ready for your baddest, meanest 6S motors.
Blast through any obstacle during freestyle with no worry, or
keep that highest throttle position during races.
Blast through any obstacle during freestyle with no worry, or
keep that highest throttle position during races.

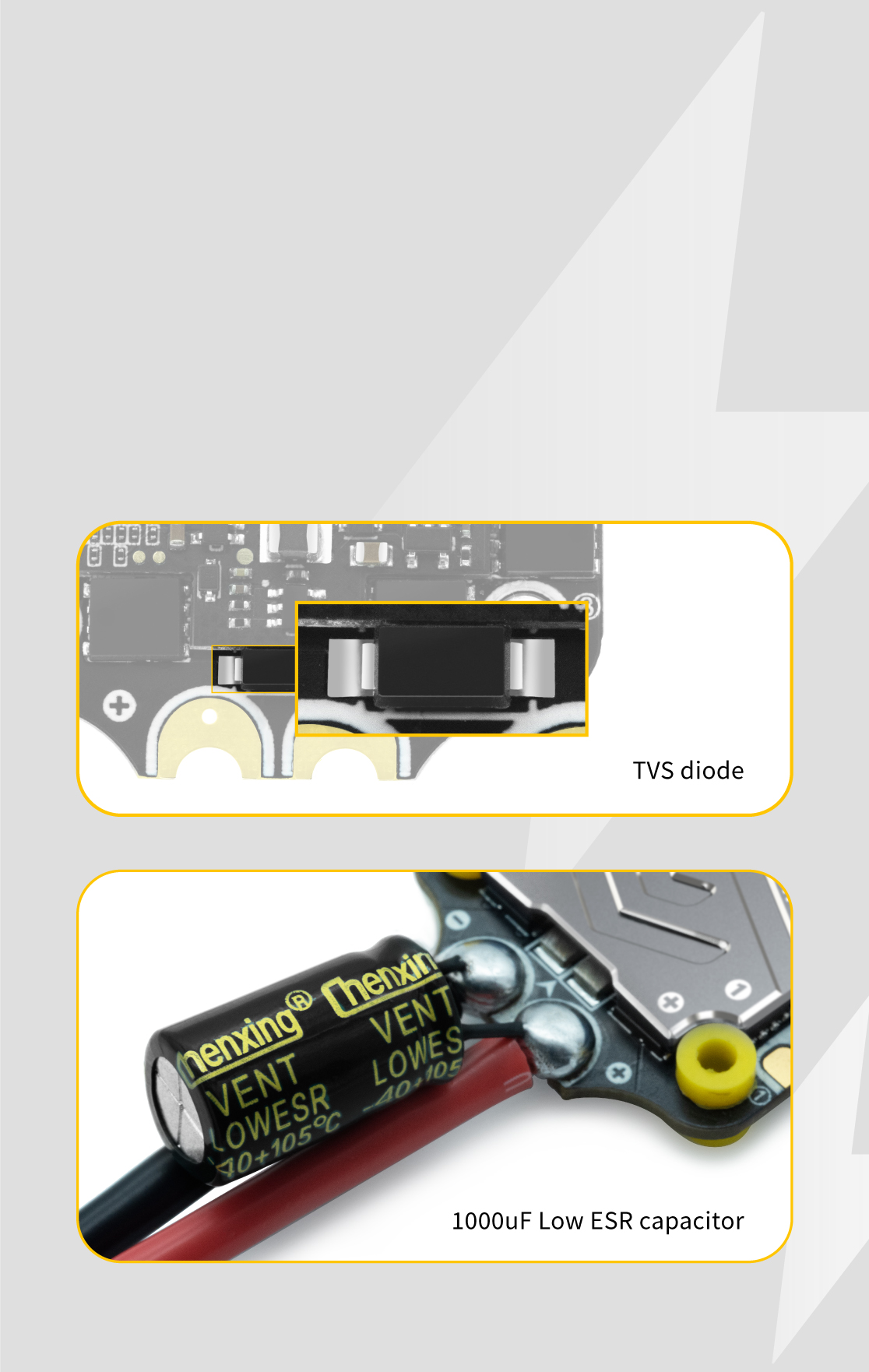

1000uF Low ESR capacitor + TVS
protective diode = Extra protection
protective diode = Extra protection
The ESC is built with TVS protective diode to absorb the voltage spike
when you plug in the battery, or during crashes that block your props.
We also provide a humongous 1000uF low ESR capacitor, ensuring
clean data from the gyro to the FC.
Tested by 2 top racing pilots with both over 1500 packs, or you can
put it to the test yourself.
when you plug in the battery, or during crashes that block your props.
We also provide a humongous 1000uF low ESR capacitor, ensuring
clean data from the gyro to the FC.
Tested by 2 top racing pilots with both over 1500 packs, or you can
put it to the test yourself.
Wanna crank it up to 128KHz PWM?
Why not?
Why not?
With F4 MCU, you can set the PWM frequency up to 128KHz. Find
the best PWM frequency* to get for your build without any limitation.
the best PWM frequency* to get for your build without any limitation.
frame, motors, props, and other factors. Higher PWM frequency
doesn't necessarily means smoother flight. If the default 48KHz is
not working for your build, you can increase the value gradually
until you find the sweet spot. Check your motor temperature to
avoid overheating.

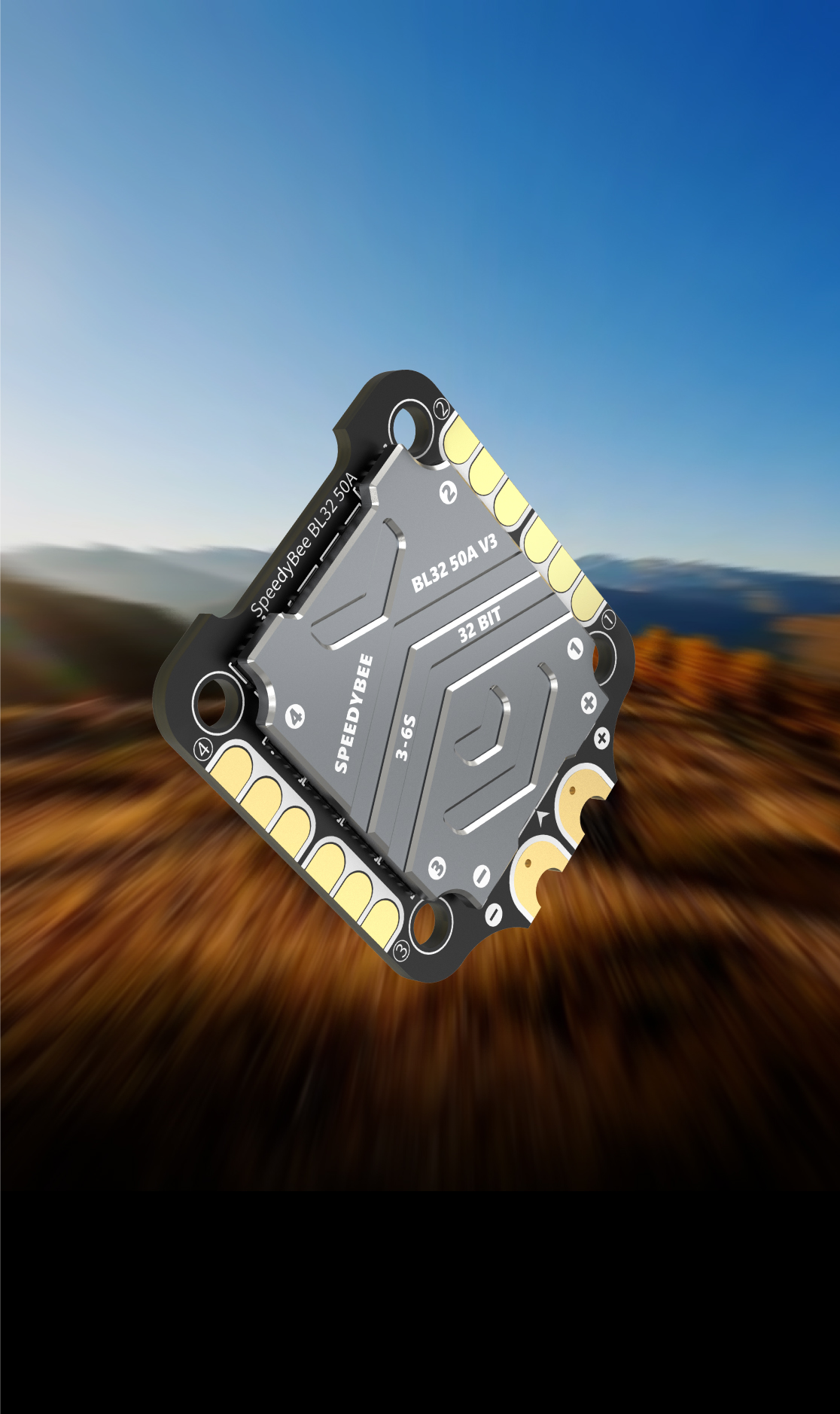

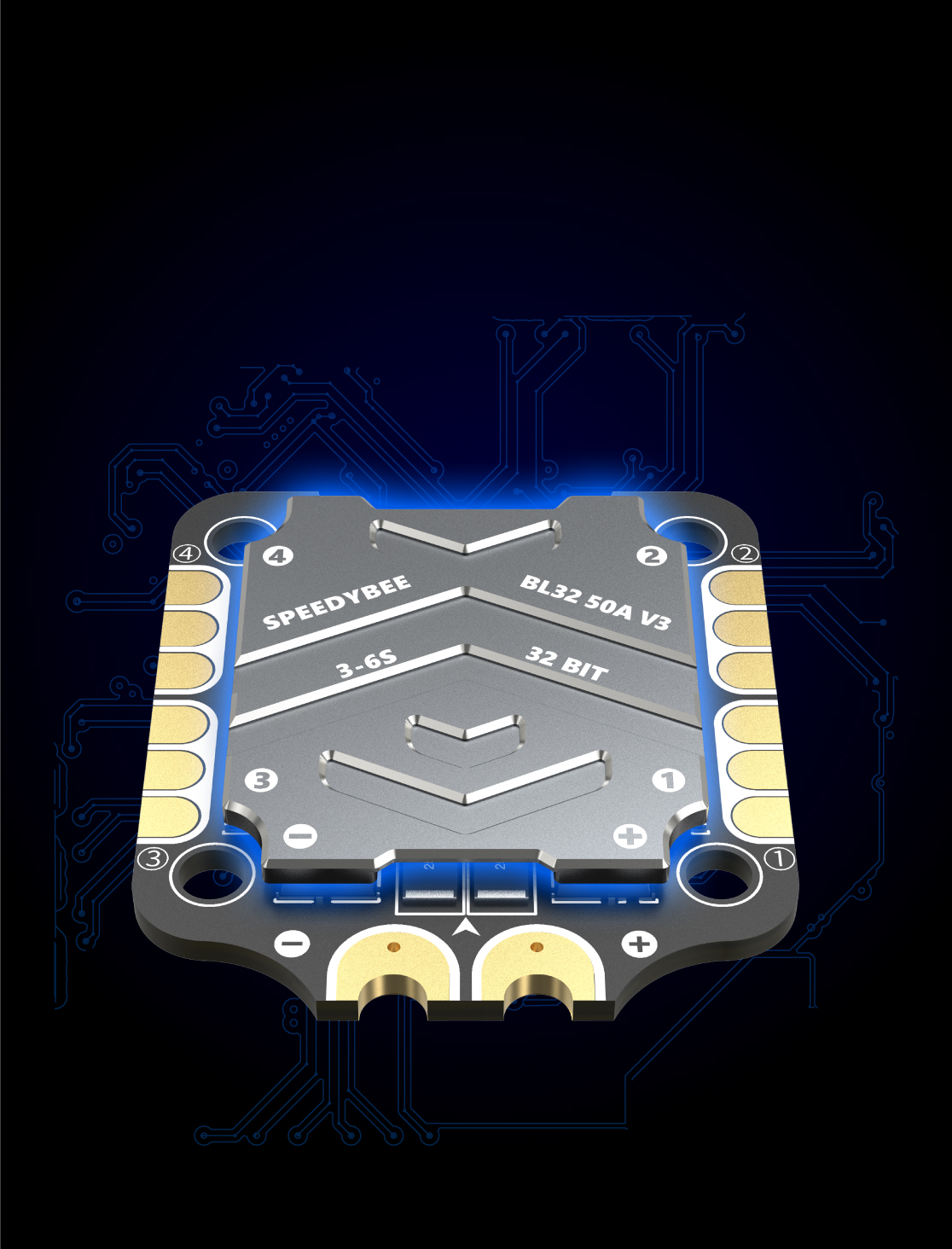

CNC heat sink shield =
no overheating in any condition
no overheating in any condition
Built with high-quality CNC heat sink to significantly reduce the
heat from your MOSFETs ensuring stable current flow at a high
throttle position. Great benefit in a stylish blue finish.
heat from your MOSFETs ensuring stable current flow at a high
throttle position. Great benefit in a stylish blue finish.
Specifications
| Product Name | SpeedyBee F7 V3 Flight Controller |
| MCU | STM32F722 |
| IMU(Gyro) | BMI270 |
| USB Port Type | Type-C |
| Barometer | BMP280 |
| OSD Chip | AT7456E chip |
| BLE Bluetooth | Supported. Used for Flight Controller configuration,built-in a single 2.4 GHz Wi-Fi-and-Bluetooth combo chip |
| Flash FC Firmware Wirelessly | Supported. Please enter MENU > FC Firmware Flasher |
| Download/Analyze Blackbox | Supported.Please enter MENU > Blackbox Analyzer |

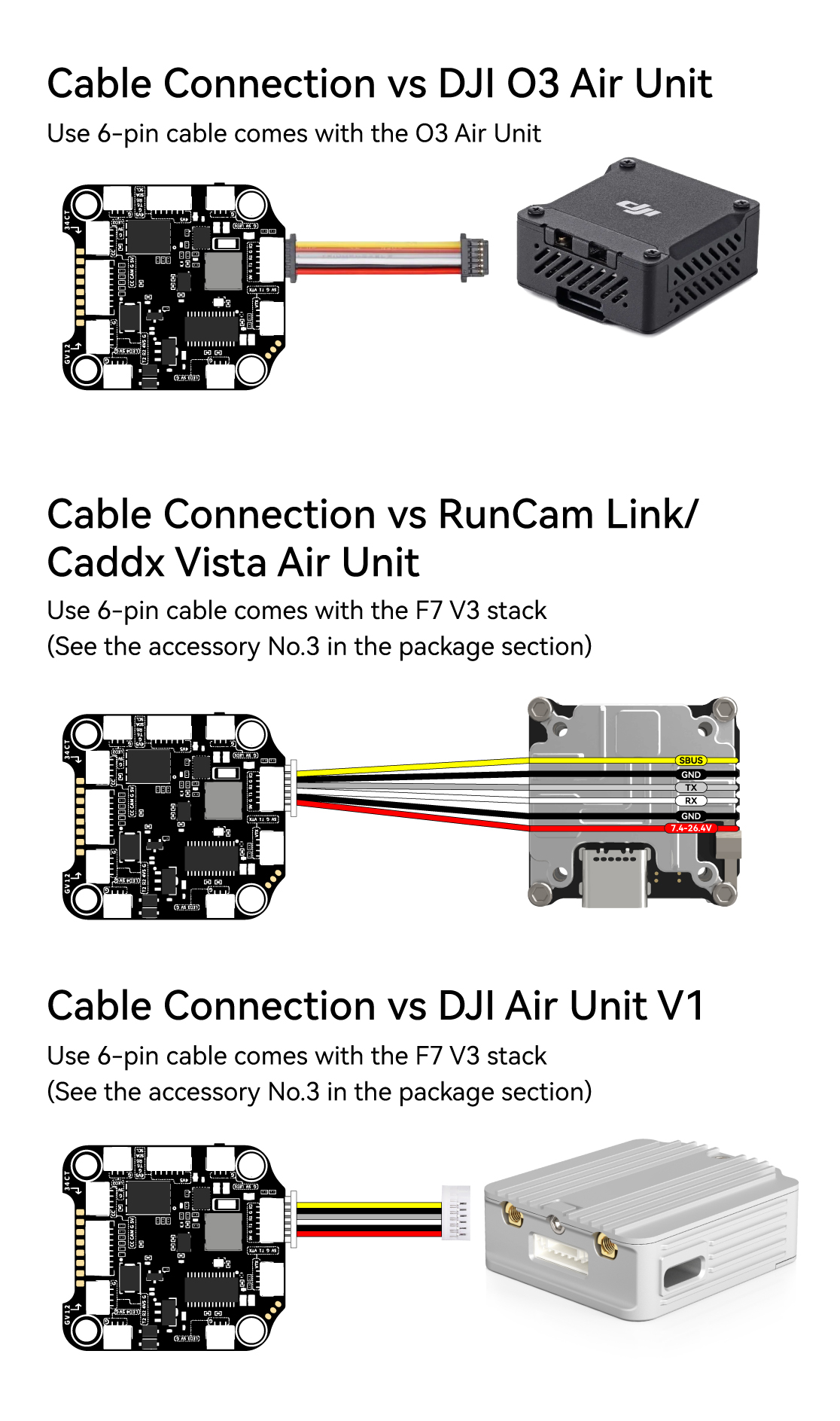

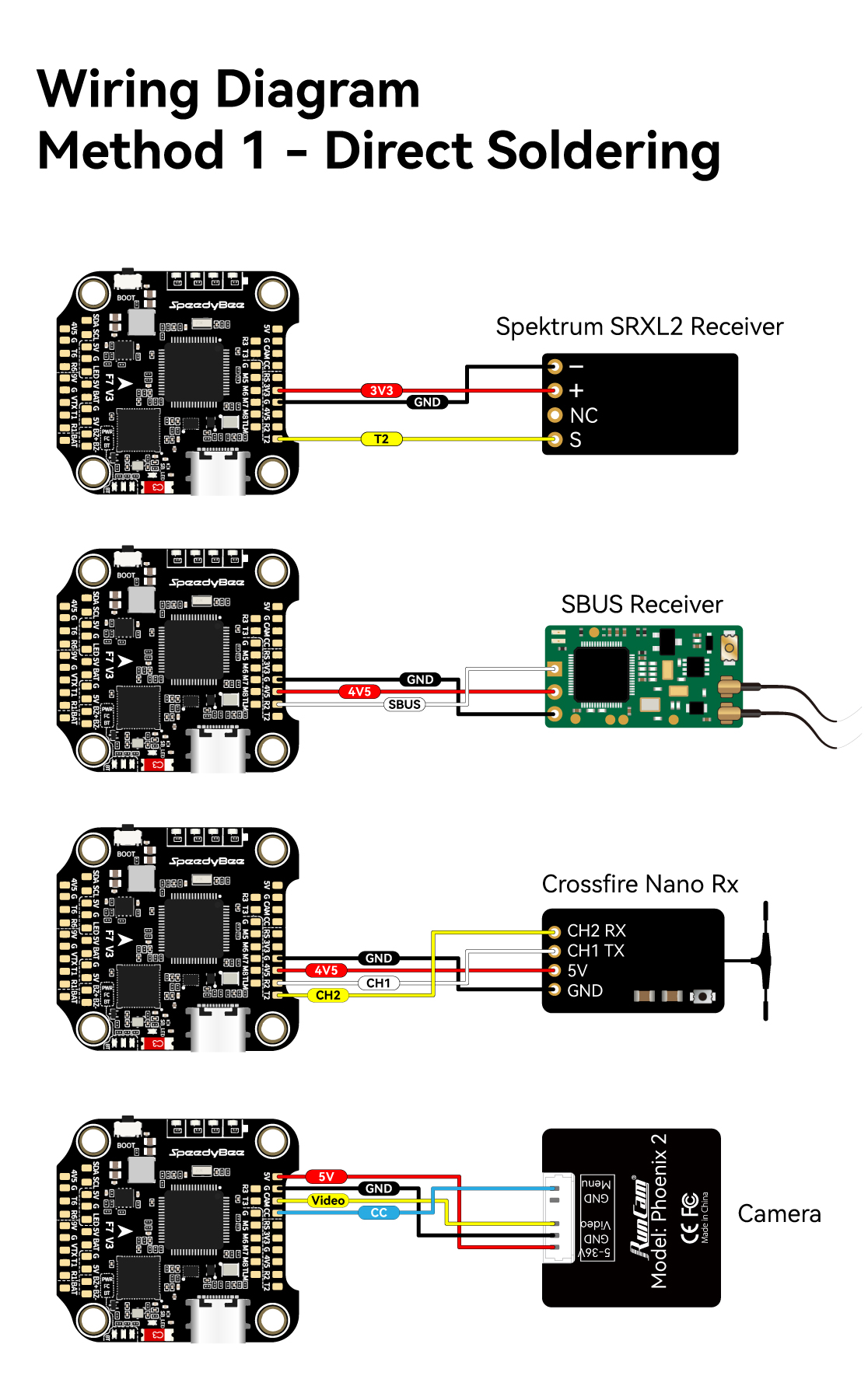

| DJI Air Unit Connection Way | Two ways supported: 6-pin connector or direct soldering. |

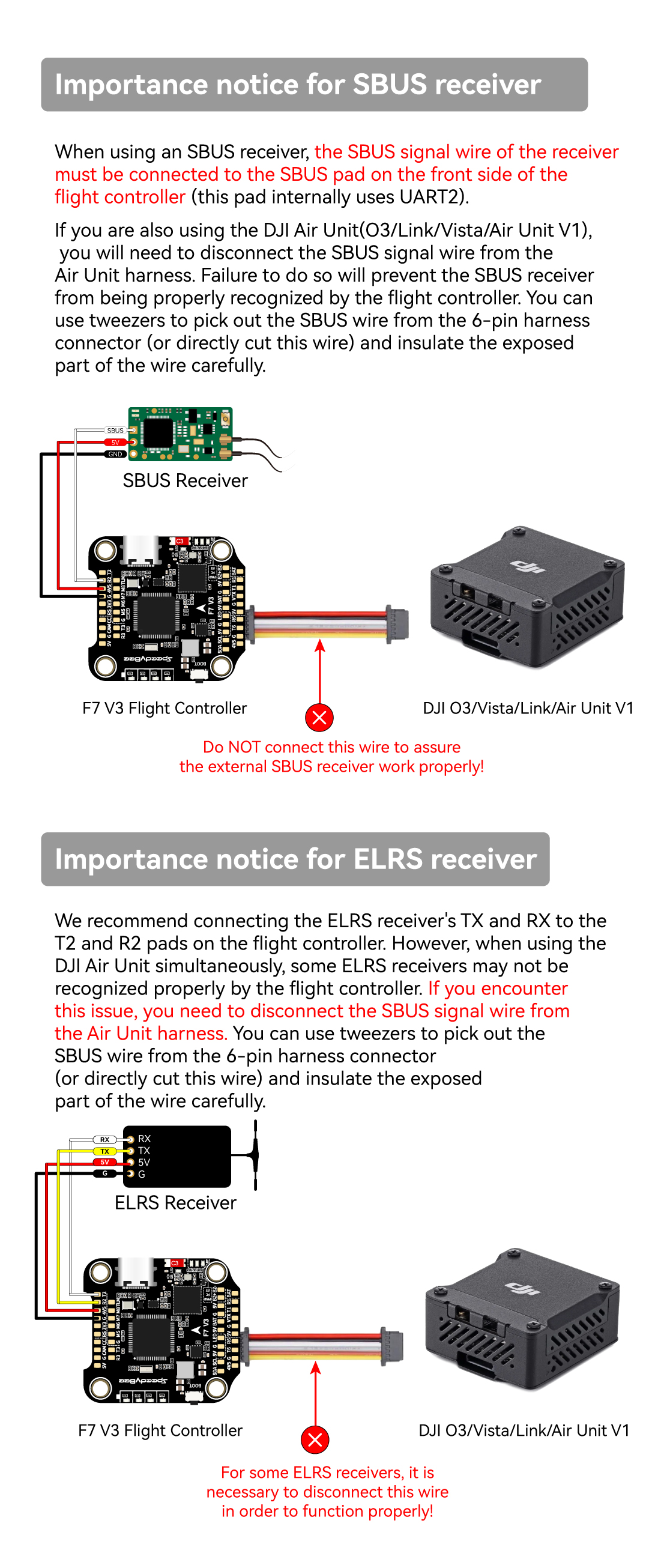

| 6-pin DJI Air Unit Plug | Supported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed. |
| Flash(for BlackBox) | 500MB |
| BetaFlight Camera Control Pad | Yes(CC pad on the front side) |
| Power Input | 3S - 6S Lipo |
| 5V Output | 10 groups of 5V output, three +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 6 +5V output included in the connectors on bottom side. The total current load is 2A. |
| 9V Output | 2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 4A. |
| 3.3V Output | Supported. Designed for 3.3V-input receivers. Up to 500mA current load. |
| 4.5V Output | Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load. |
| ESC Signal Pads | M1 - M4 on bottom side and M5-M8 on front side. |
| UART | 5 sets(UART1, UART2, UART3, UART4(For ESC Telemetry), UART6) |
| ESC Telemetry UART | R4(UART4) |
| I2C | Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc. |
| LED Pad | Used for WS2812 LED controlled by Betaflight firmware. |
| Buzzer | BZ+ and BZ- pad used for 5V Buzzer |
| BOOT Button | Supported. [A]. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked. [B]. When the FC is powered on and in standby mode, the BOOT button can be used to controller the LED strips connected to LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware. |
| RSSI Input | Supported. Named as RS on the front side. |
| SmartPort | Supported |
| Supported Flight Controller Firmware | BetaFlight(Default),INAV |
| Firmware Target Name | SPEEDYBEEF7V3 |
| Mounting | 30.5 x 30.5mm( 4mm hole diameter) |
| Dimension | 41(L) x 38(W) x 8.1(H)mm |
| Weight | 10.7g |
| Product Name | SpeedyBee BL32 50A 4-in-1 ESC |
| Firmware | SpeedyBee BL32 50A |
| Configurator Download Link | http://github.com/bitdump/BLHeli/releases |
| Continuous Current | 50A * 4 |
| Burst Current | 55A(5seconds) |
| TVS Protective diode | Yes |
| Heat Sink | Yes |
| External Capacitor | 1000uF Low ESR Capacitor(In the package) |
| ESC Protocol | DSHOT300/600 |
| PWM Frequency Range | 16KHz-128KHz |
| Power Input | 3-6S LiPo |
| Power Output | VBAT |
| Current Sensor | Support (Scale=490 Offset=0) |
| ESC Telemetry | supported |
| Mounting | 30.5 x 30.5mm( 4mm hole diameter) |
| Dimension | 45.6(L) * 40(W) * 8.8mm(H) |
| Weight | 19.2g with heat sink |
