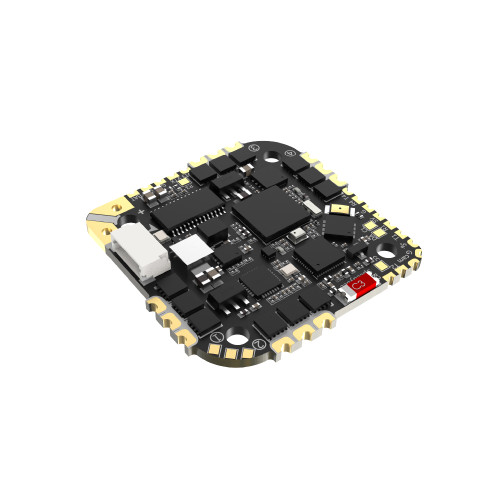

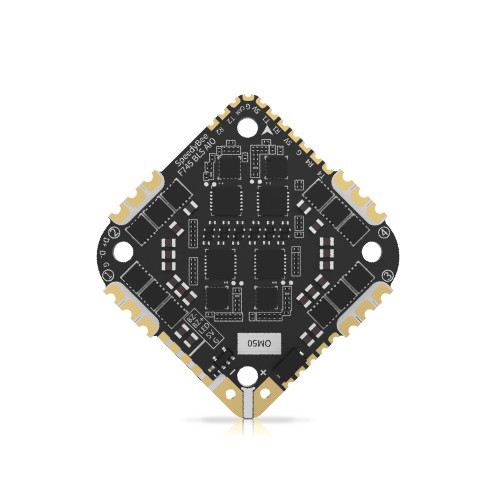

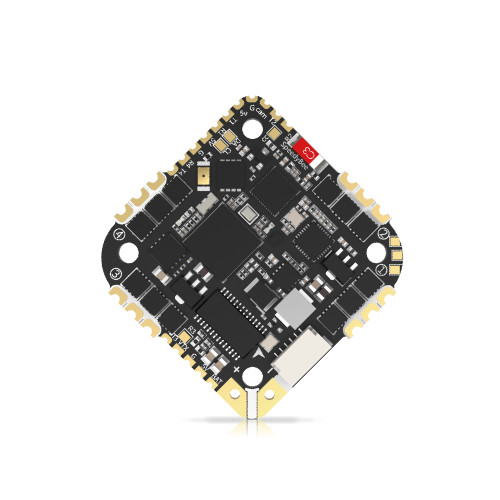

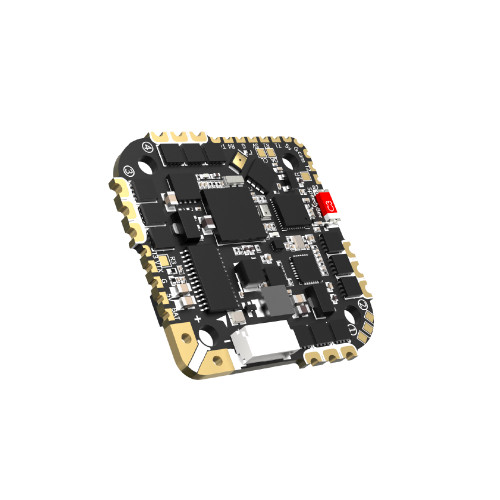

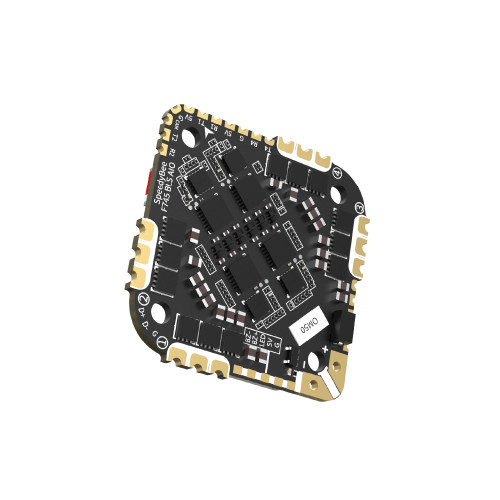

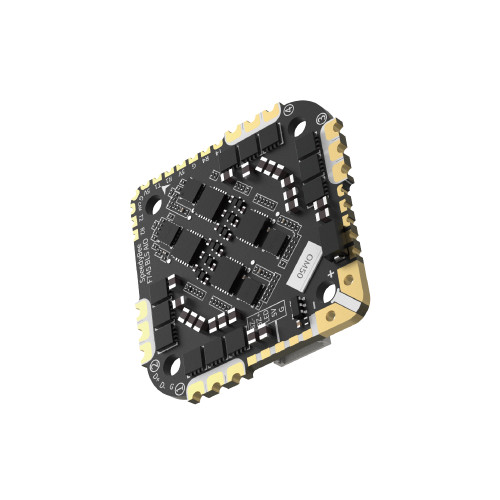

SpeedyBee F745 35A BLS 25.5x25.5 AIO Flight Controller
€103.99
- SKU:
- SB-F7-35A-AIO
- Shipping:
- Free Shipping
SpeedyBee Flex25 HD Falcon 120fps Cinewhoop
€313.77 - €337.97
Important Note:
Make sure the AIO's slightly bigger size can fit your own quad! The size of this AIO is 36.5(L)*36.5(W)*7.0(H)mm.
We suggest you use this AIO on your 3.5" to 5" cinewhoops/long-range or lightweight quads.For quads below 3.5",
you should carefully check if your quad has enough room for this AIO.
We suggest you use this AIO on your 3.5" to 5" cinewhoops/long-range or lightweight quads.For quads below 3.5",
you should carefully check if your quad has enough room for this AIO.
Specifications
| Overview | |
| Product Name | SpeedyBee F745 35A BLS AIO |
| Power Input | 3S - 6S Lipo |
| Mounting | 25.5 x 25.5mm, 3mm hole diameter |

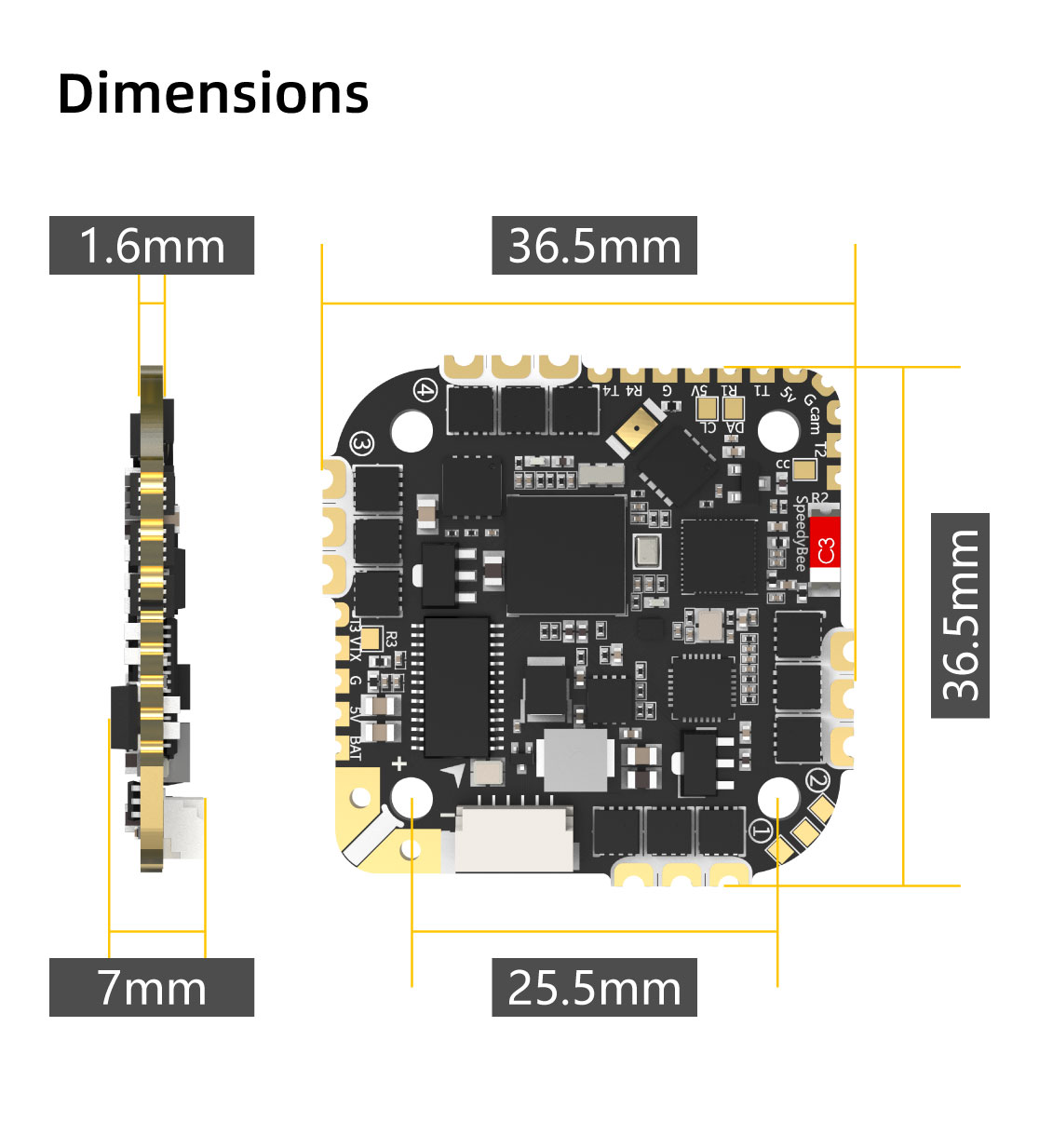

| Dimension | 36.5mm(L) x 36.5mm(W) x 7mm(H), recommended for quads at 3.5" or above |
| Weight | 10.1g |
| FC | |
| MCU | STM32F745 |
| IMU(Gyro) | MPU6000 |
| USB Connection | Need to solder a USB TYPE-C module to D+,D-,GND pads. |
| Barometer | BMP280 |
| OSD | Supported |
| BLE Bluetooth | Supported. Used for parameter configuration,built-in a single 2.4 GHz Wi-Fi-and-Bluetooth combo chip |

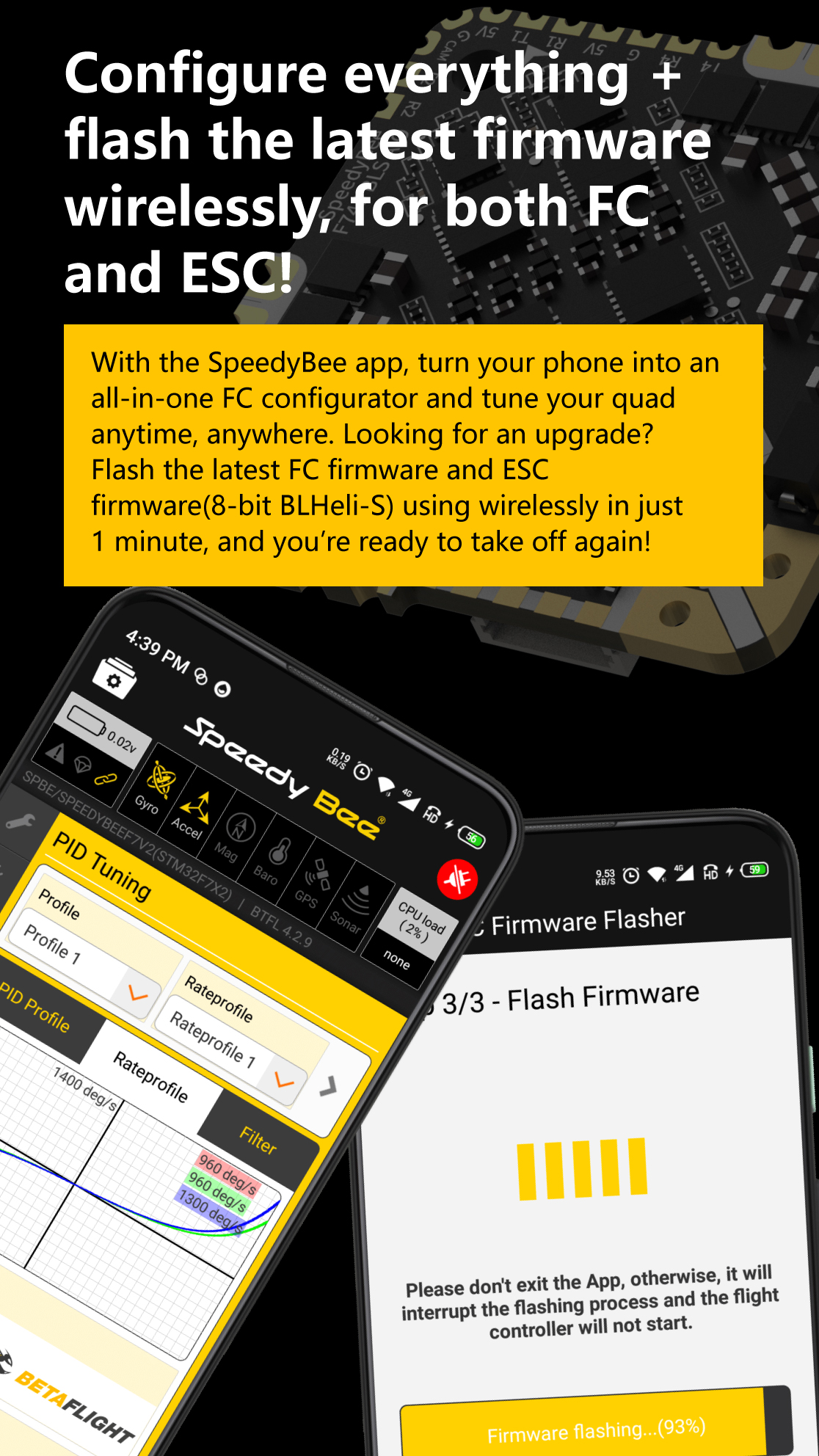

| Flash FC Firmware Wirelessly | Supported |
| Download/Analyze Blackbox | Supported |

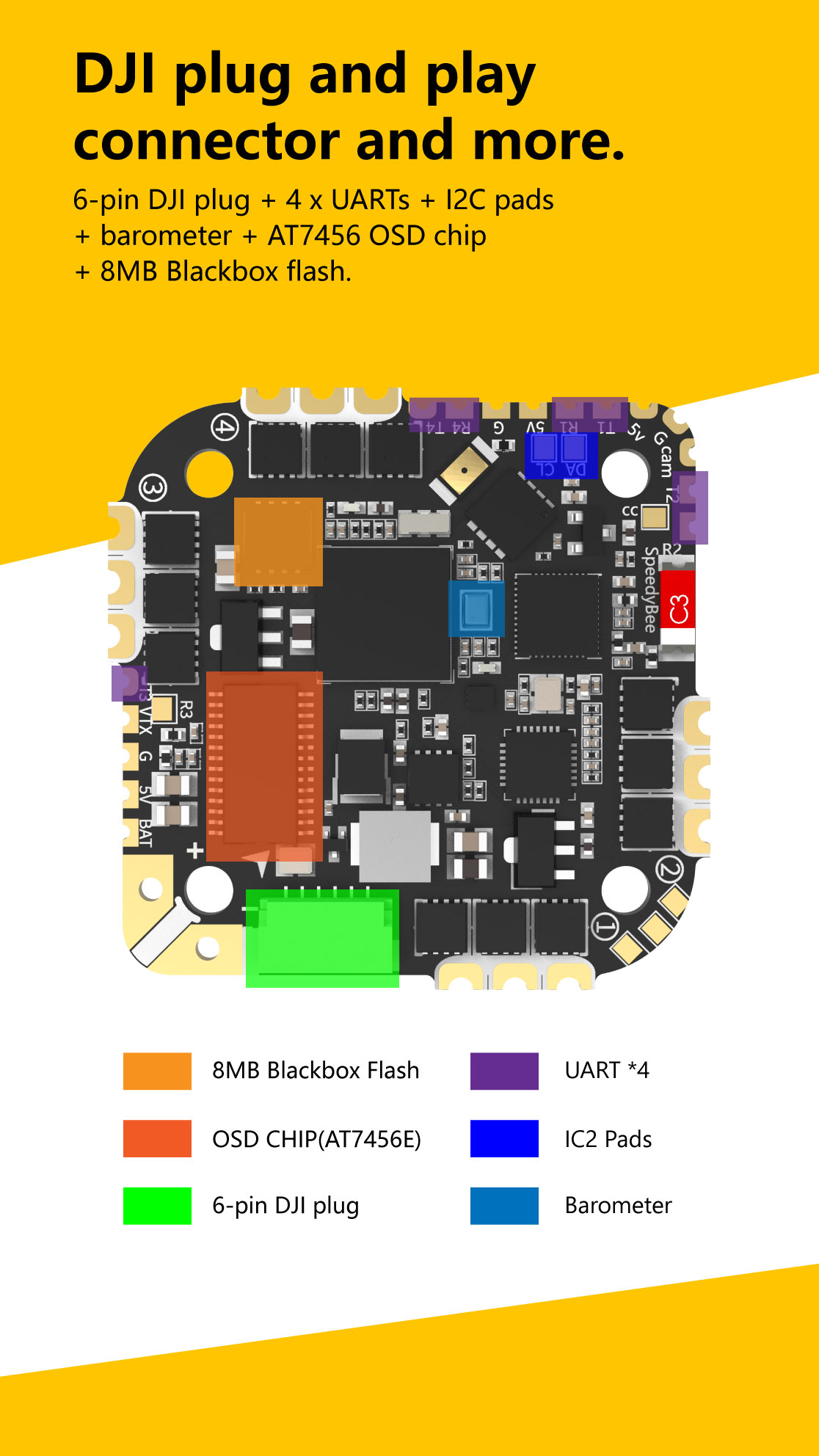

| DJI Air Unit 6-pin Connector | Built-in. |
| Flash(for BlackBox) | 8MB |
| Current Sensor | Supported. Scale=256 |
| BetaFlight Camera Control Pad | Yes(CC pad) |
| 5V Output | 4 groups of 5V output. The total current load is 2.5A. |
| 9V Output | None |
| ESC Signal Pads | M1 - M4 |
| UART | Full UART * 4(UART1, UART2, UART3,UART4) |
| ESC Telemetry UART | None |
| I2C | Supported. |
| LED Pad | Used for WS2812 LED |
| Buzzer | BZ+ and BZ- pad used for 5V Buzzer |
| BOOT Button | Used to enter DFU mode |
| RSSI Input | Not supported |
| SmartPort | Not Supported |
| Supported Flight Controller | BetaFlight(Default) |
| Firmware Target Name | SPEEDYBEE F745AIO |

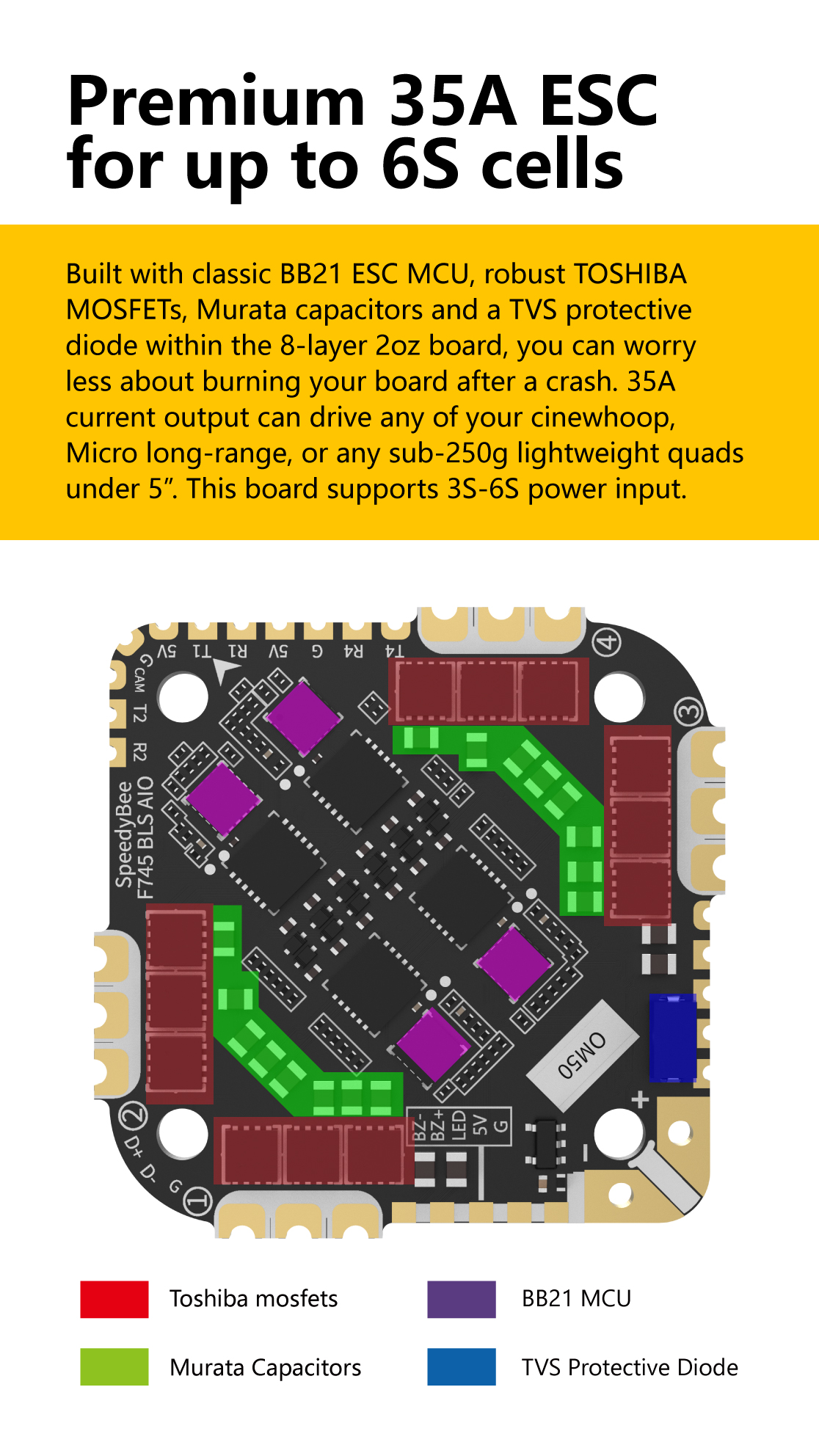

| ESC | |
| Power Input | 3-6S LiPo |
| Continuous Current | 35A * 4 |
| Burst Current | 45A(5seconds) |
| ESC Protocol | DSHOT300/600 |
| Power Output | VBAT |
| Current Sensor | Supported(Sacle=256) |
| Firmware | BLHeli_S JH40 |
