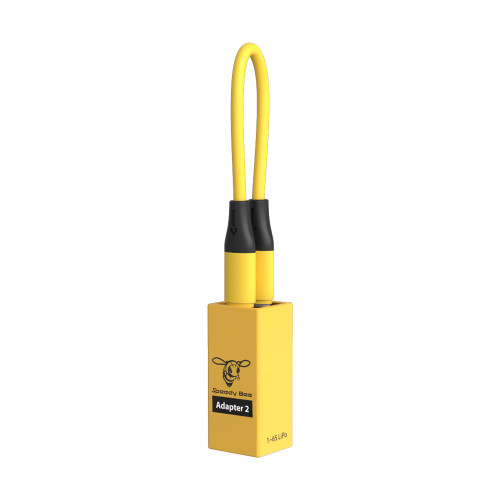

Speedy Bee Adapter 2
Full-featured BF/INAV/Emu configrator in your pocket
·Upgrade FC firmware via App
·Full-featured BF/INAV/Emu configuration
·Built-in WiFi
·XT60 & PH2.0 battery connectors
·1-6S power input
·Full-featured BF/INAV/Emu configuration
·Built-in WiFi
·XT60 & PH2.0 battery connectors
·1-6S power input

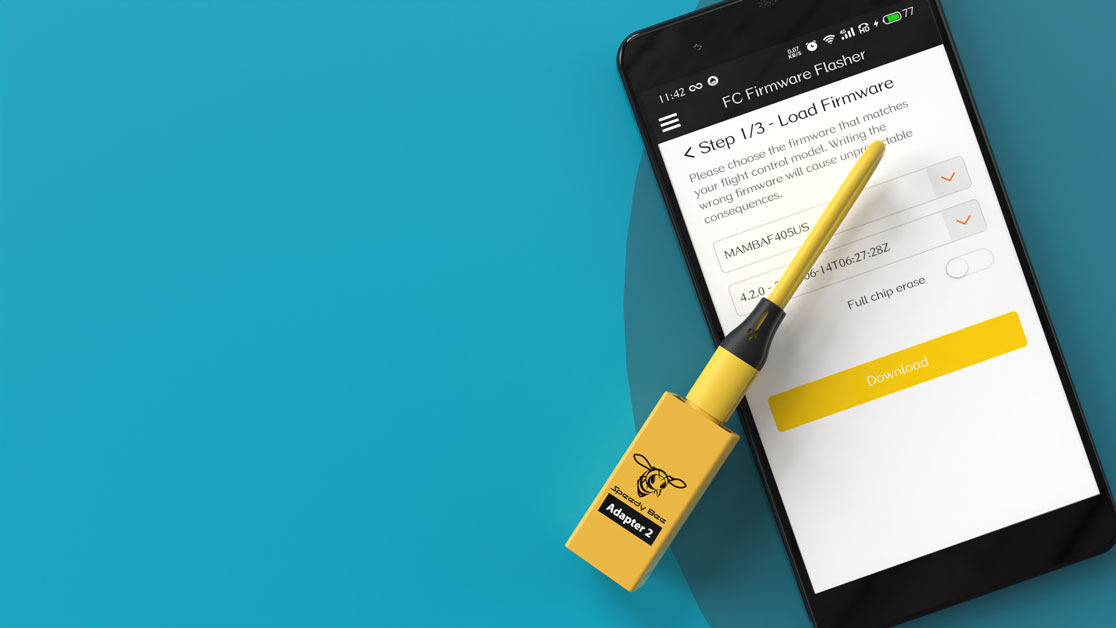

Upgrade your flight controller via App!
We put a WiFi chip in the Adapter 2 which greatly improves the
transmission speed and makes it possible to upgrade your flight
controllers The whole upgrading process costs only 2-3 minutes.
* The firmware flashing currently supports Betaflight/Emuflight
via WiFi connection to the Adapter 2.
transmission speed and makes it possible to upgrade your flight
controllers The whole upgrading process costs only 2-3 minutes.
* The firmware flashing currently supports Betaflight/Emuflight
via WiFi connection to the Adapter 2.

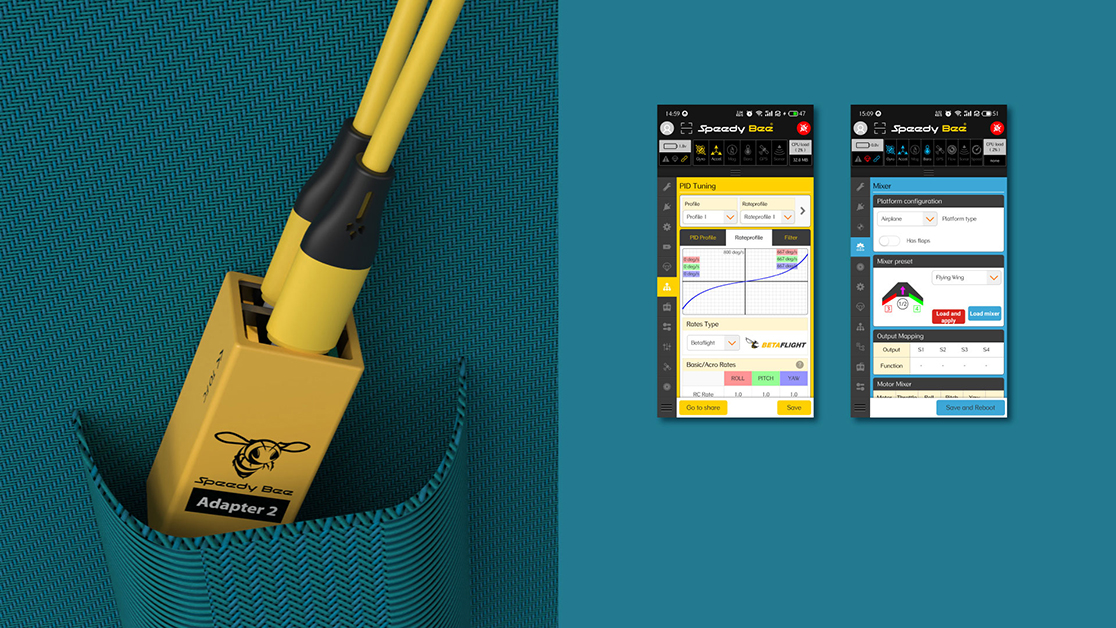

Full-featured BF/INAV/Emu configuration.
Now the SpeedyBee Adapter 2 is a full-featured mobile
BF/iNav/Emu configurator. Just go to the field to fly
without carrying a heavy laptop.
BF/iNav/Emu configurator. Just go to the field to fly
without carrying a heavy laptop.

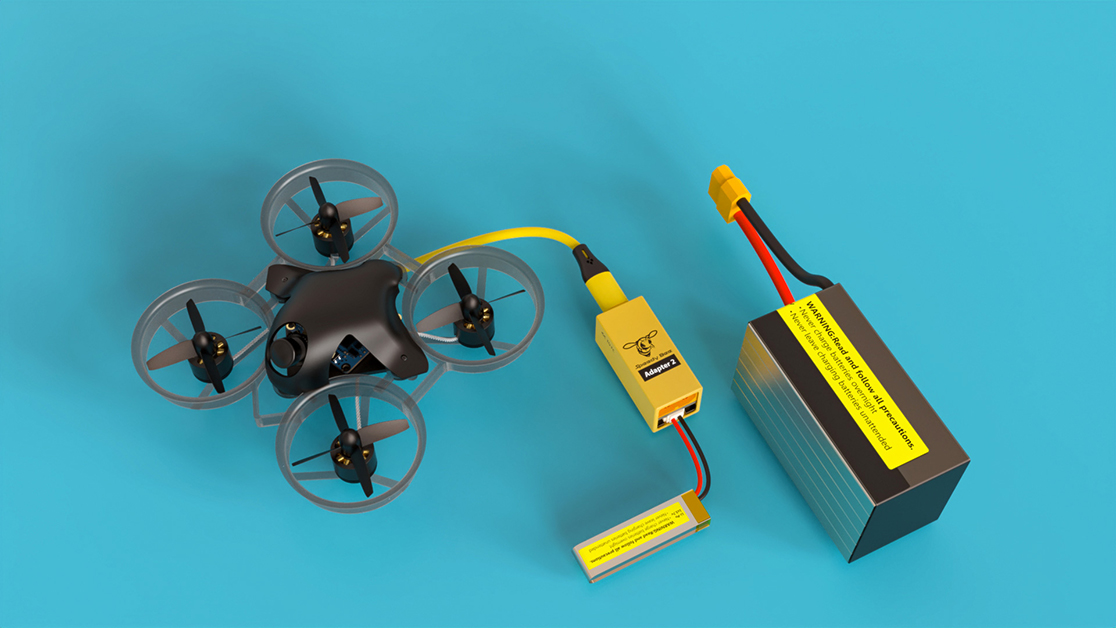

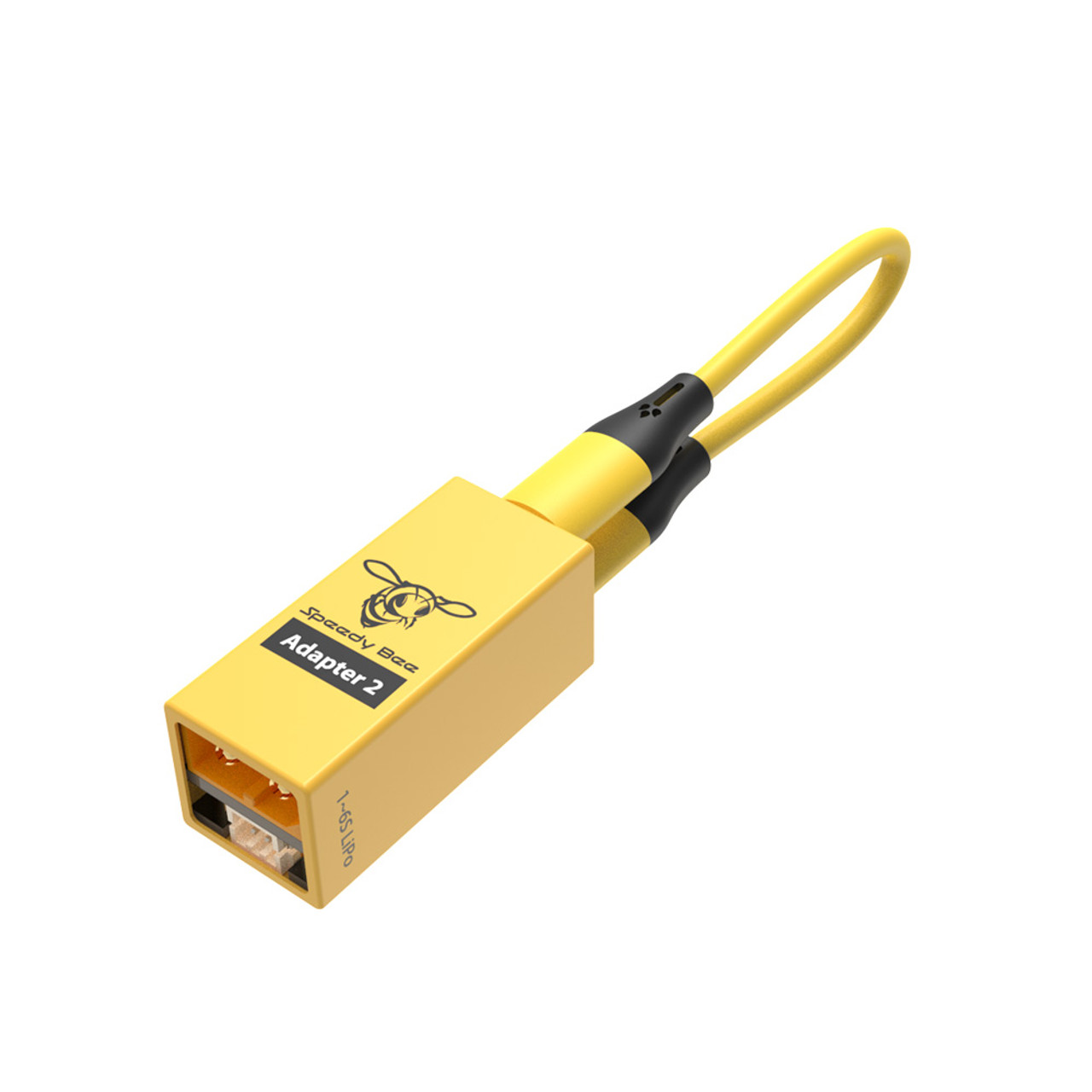

Power the whole thing with one battery.
Soldering work should be done on the user end on the previous generation. But the Adapter 2 now has
built-in XT60 and PH2.0 connectors which both support 1-6S LiPo batteries input*. As the Adapter 2
can power your flight controller, you don't need another battery to power your quad.
built-in XT60 and PH2.0 connectors which both support 1-6S LiPo batteries input*. As the Adapter 2
can power your flight controller, you don't need another battery to power your quad.
*For 1S batteries, 3.8V or above is requried. Because some(very few)
quadcopters may consume a lot of current, and the output
voltage of the adapter 2 will be greatly reduced.
quadcopters may consume a lot of current, and the output
voltage of the adapter 2 will be greatly reduced.

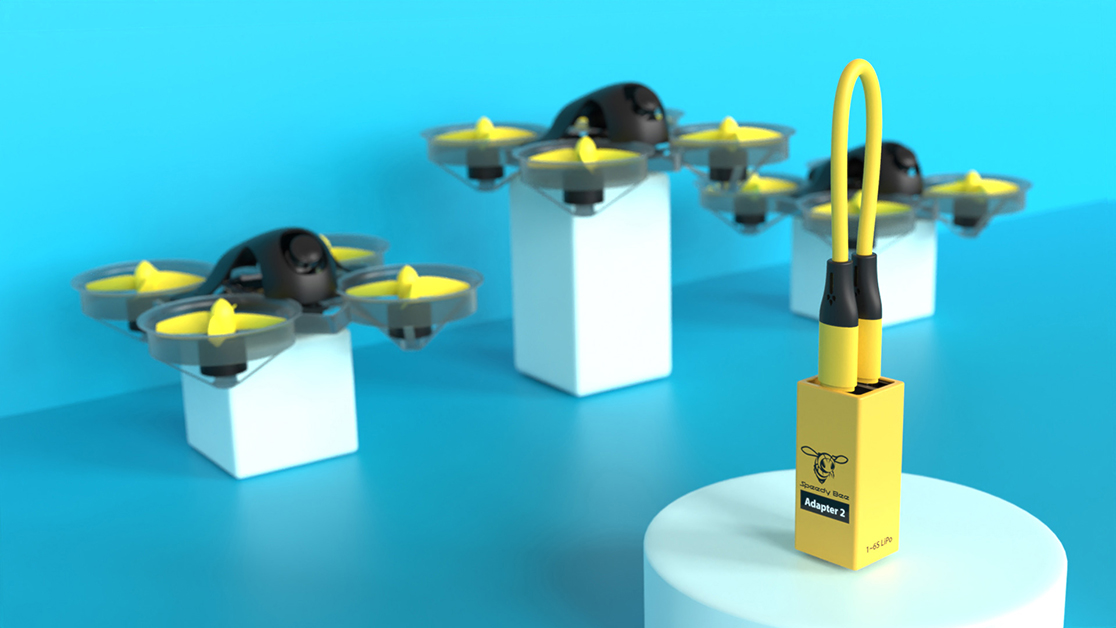

One Adpater 2 for all of your quads!
With one Adapter 2, you could connect to all of your
quads running Betaflight or iNav.
quads running Betaflight or iNav.
Say goodbye to OTG problems.
Some Android phones don't support OTG
or can't supply suficient power to your
flight controllers... But with Adapter 2,
just say goodbye to all these problems.
or can't supply suficient power to your
flight controllers... But with Adapter 2,
just say goodbye to all these problems.

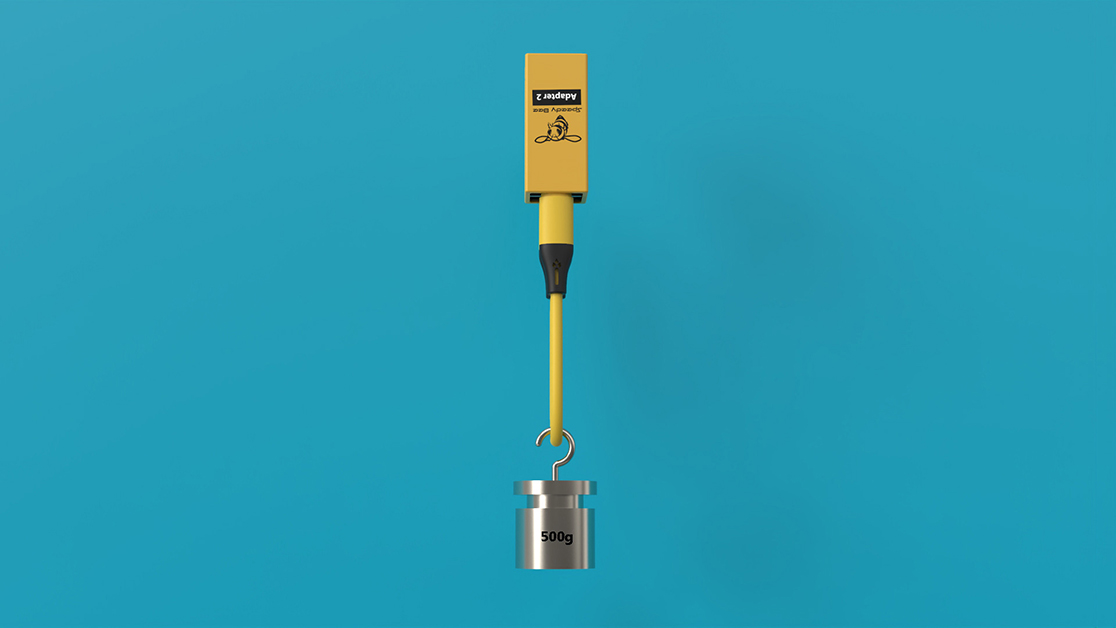

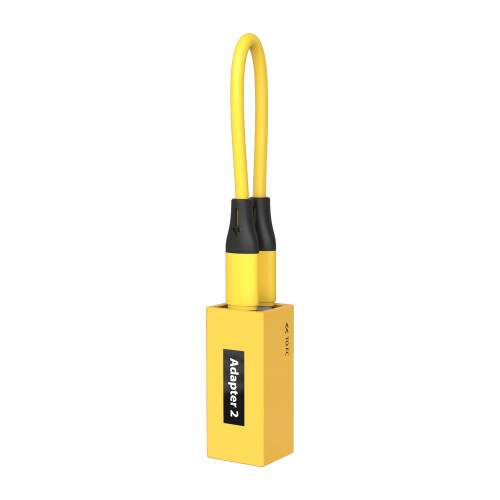

The lanyard-style cable is easy to store.
The liquid silicone cable is with two same micro USB ports on both ends.
The connection is tight enough to prevent the cable from being lost.
The lanyard-style cable can even easily carry 500 grams.
The connection is tight enough to prevent the cable from being lost.
The lanyard-style cable can even easily carry 500 grams.

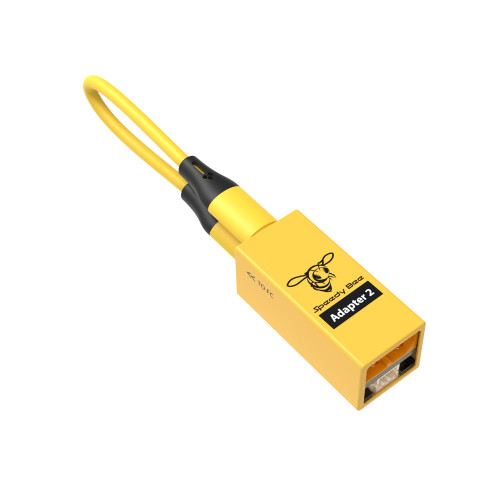

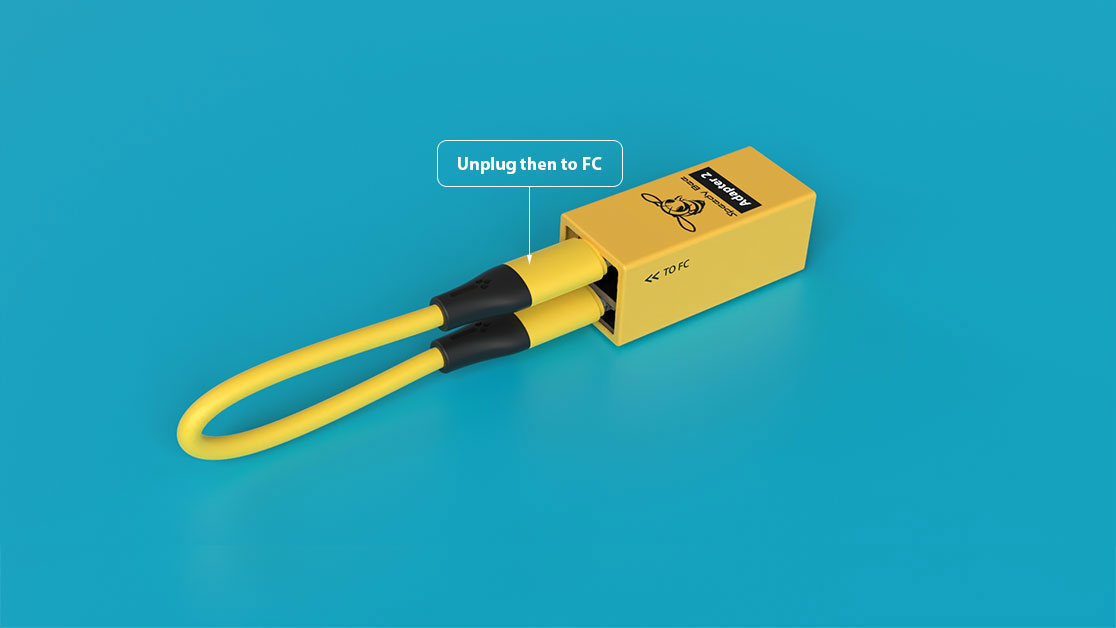

Connection Tips
'TO FC' stands for 'unplug the USB cable from this end,
then plug the cable into your flight controller'.
then plug the cable into your flight controller'.

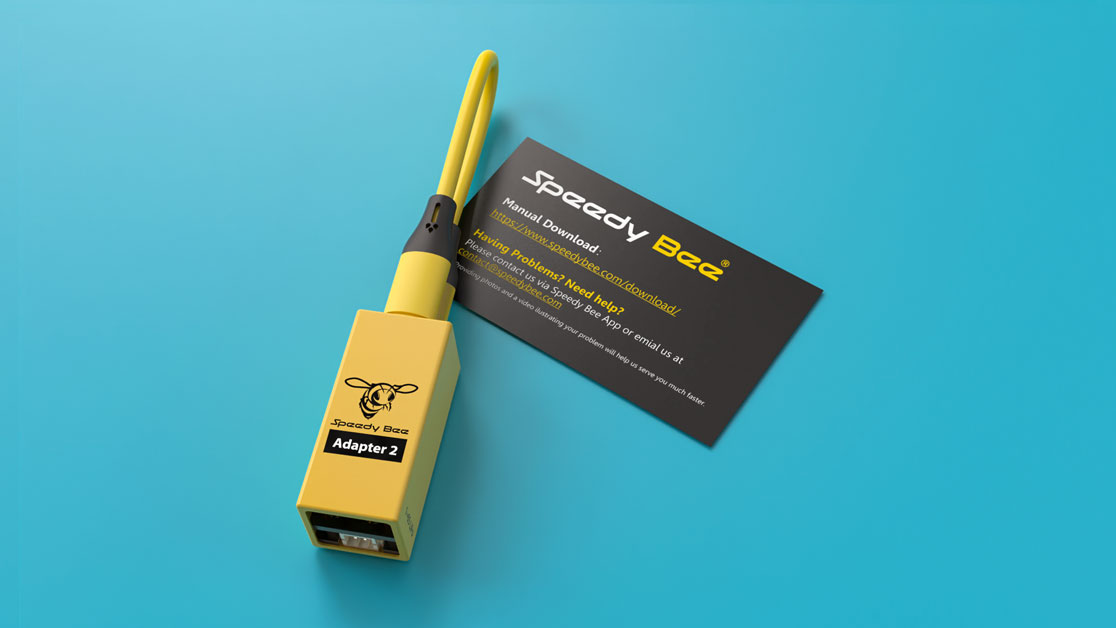

Package
·1 x Adapter 2
·1 x Maunal
·1 x Maunal
Specifications
| Product Name | Speedy Bee Adapter 2 |
| Power Input Voltage Range | 1-6S(3.8V+ for 1S) |
| Power Input Interface | XT60-Male, PH2.0 male |
| Case Meterial | Heat-shrink Tubing |
| Liquid Silicone Cable Length(Pure Wire) | 10cm |
| Net Weight | 21.8g |
| WiFi Transmission Distance | 3 meters |
| Standby Working Current Under 5V | 120mA |
| Maximum Output Current | 200mA @5V |
| Dimension(Main Body) | 18*18.5*42mm |
