SpeedyBee Master 5 V1 V2 Programmable 2812 Cellular LED

€4.47
SKU:
SB-M5-LEDB-V2
Shipping:
Free Shipping
Write a Review
Maste5
LED BOARD
Master 5 V2
Ways to connect
Connect LED Strip
via connector
Plugging connector directly
Soldering cable
with FC

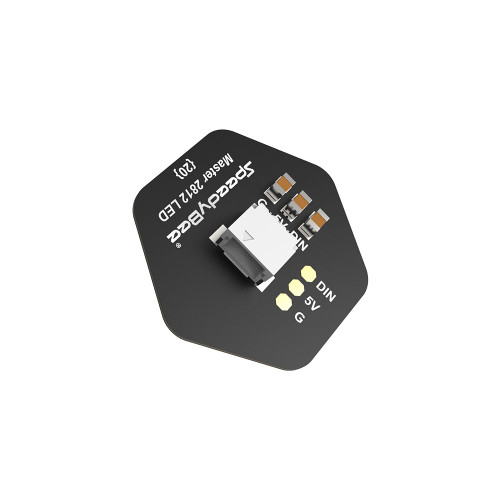

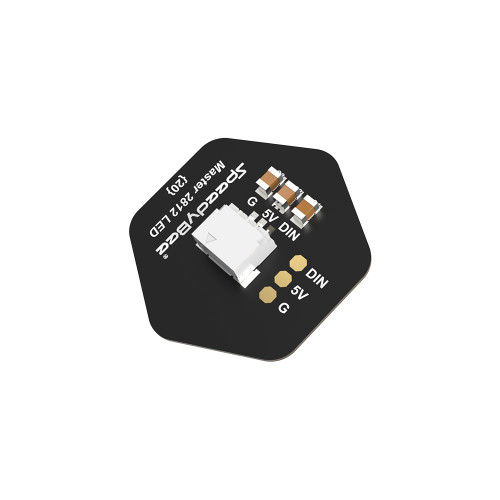

Support soldering and free-soldering

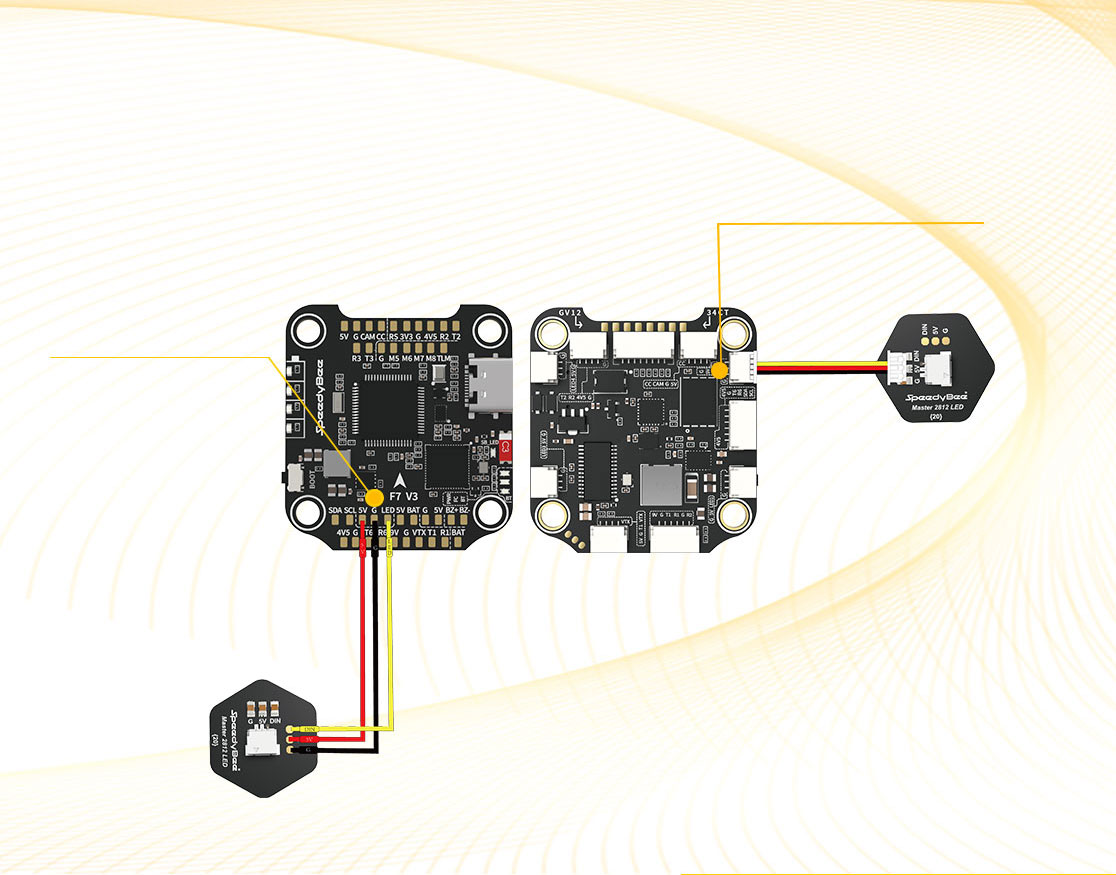

Two ways to connectto FC
Master 5 V2

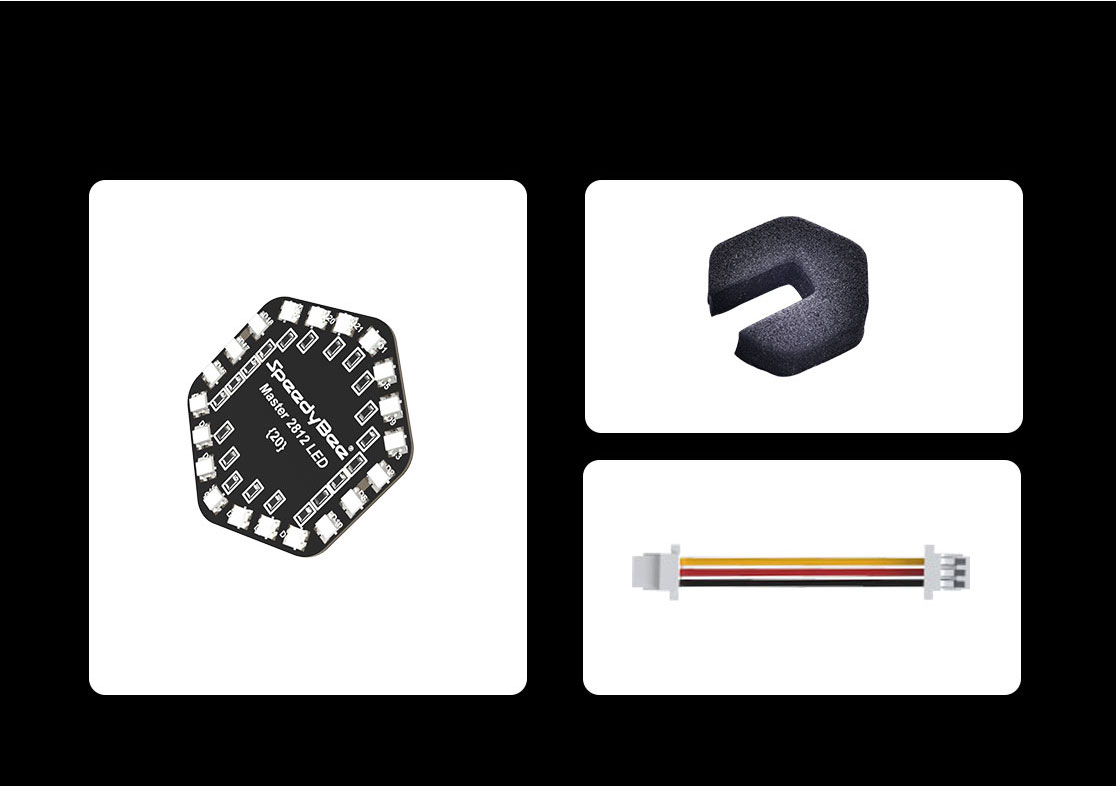

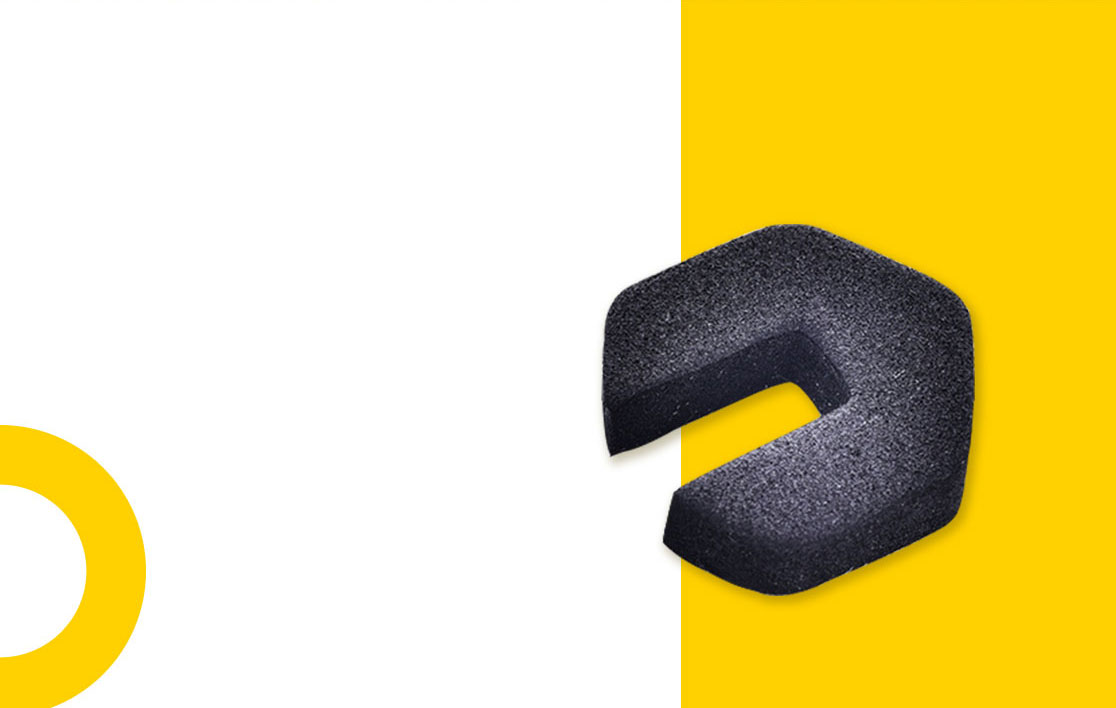

Free shock proof foam included,
protecting from ESC
Master 5 V2

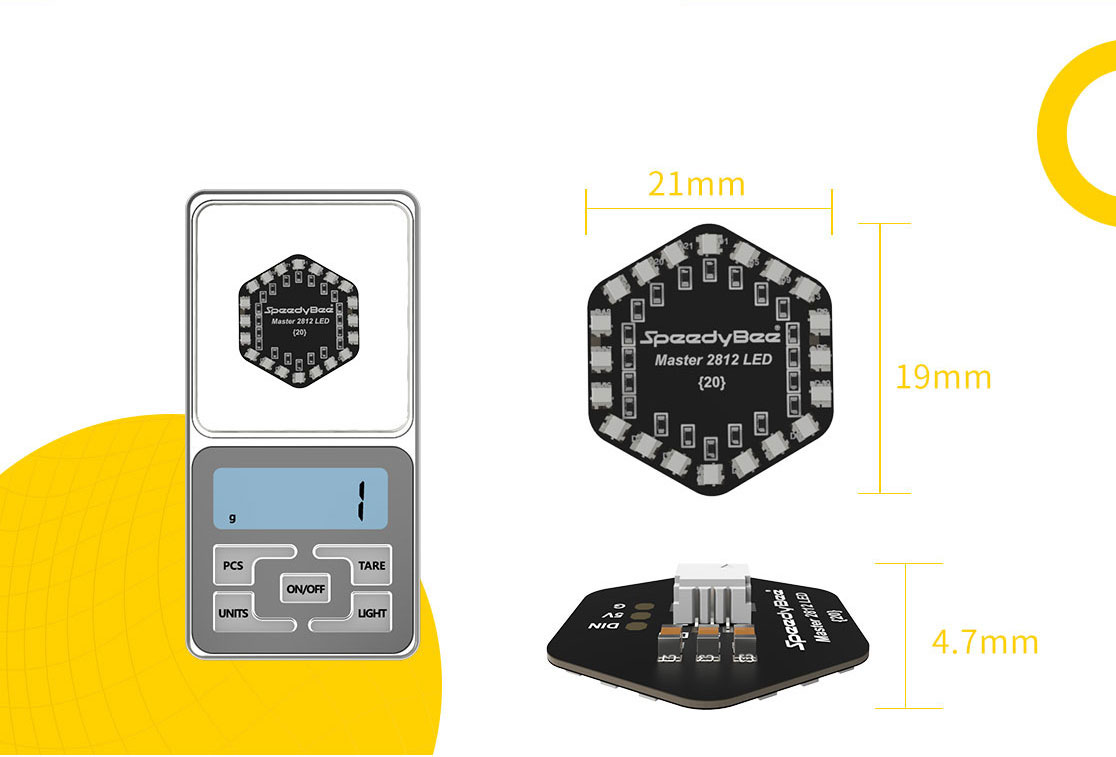

Dimension and Weight
Master 5 V2

Master 5 V2

Master 5 V2

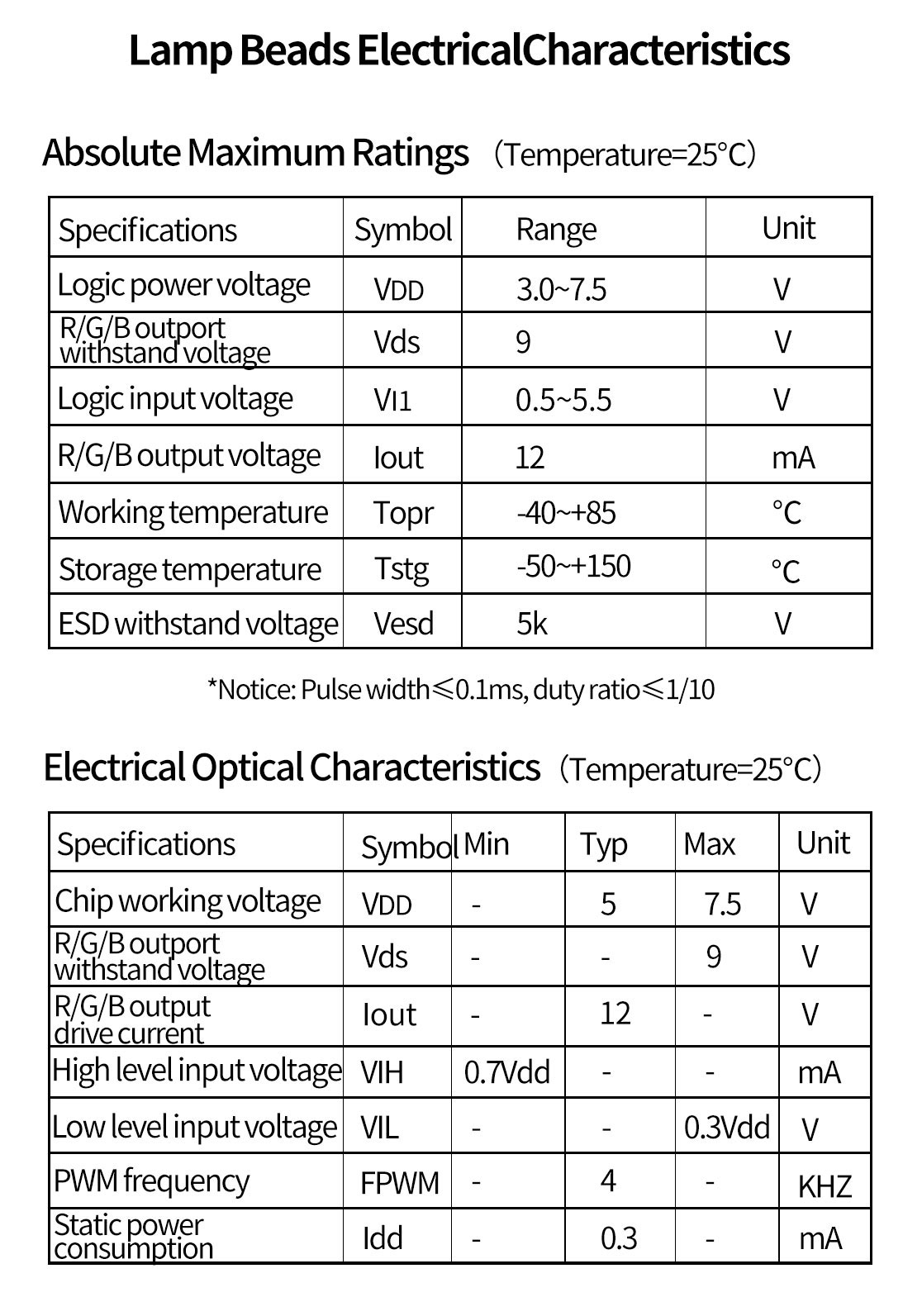

LampBeadsElectricalCharacteristics
AbsoluteMaximumRatings(Temperature=25℃)
Specifications Symbol Range Unit
Logic power voltag VDD 3.0~7.5 V
R/G/B outport withstand voltag Vds 9 V
Logic input voltage VI1 0.5~5.5 V
R/G/B output voltage Iout 12 mA
Working temperature Topr -40~+85
Storage temperature Tstg -50~+150
ESD withstand voltage Vesd 5k V
*Notice:Pulsewidth≤0.1ms,dutyratio≤1/10
ElectricalOpticalCharacteristics(Temperature=25℃)
Specifications Symbol Min Typ Max Unit
Chip working voltage VDD - 5 7.5 V
R/G/B outport withstand voltage Vds - - 9 V
R/G/B output drive current Iou - 12 - V
High level input voltage VIH 0.7Vdd - - mA
Low level input voltage VIL - - 0.3Vdd V
PWM frequenc FPWM - 4 - KHZ
Static power consumption ldd - 0.3 - mA
