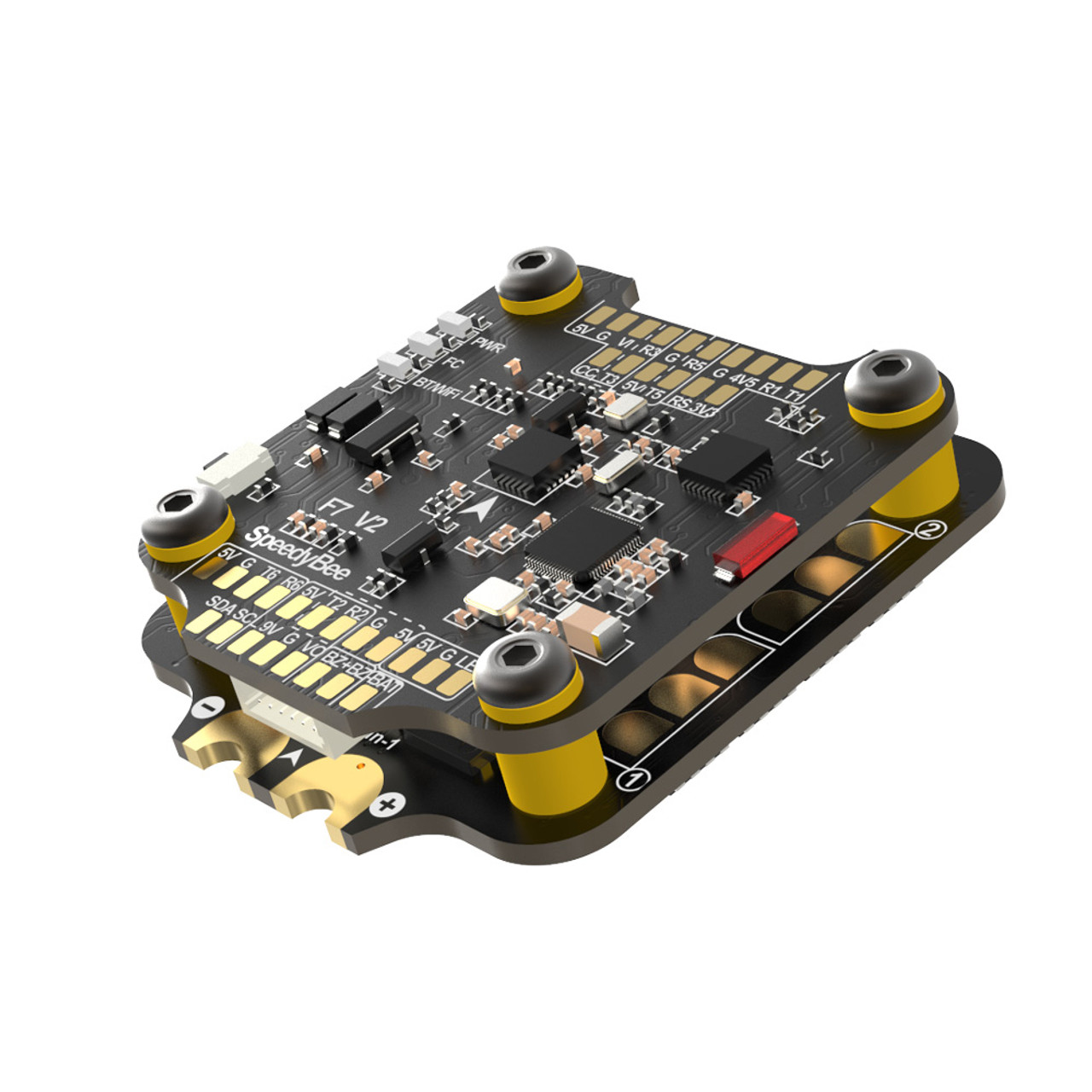

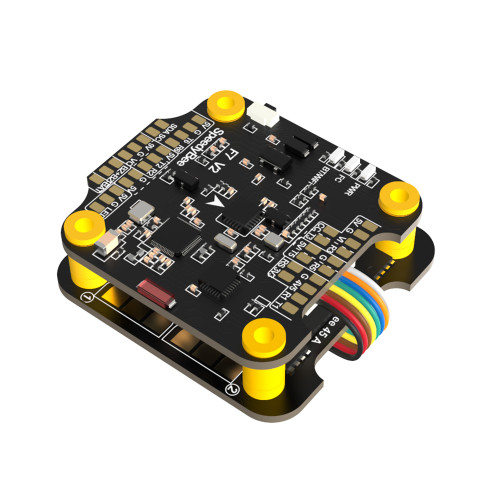

SpeedyBee F7 V2 BL32 45A Stack(with V22 ESC)

€98.61
SKU:
SPEEDYBEE-STACK
Availability:
Discontinued
Write a Review
NOTICE:
For earlier batches V2/V21 ESC, if you're running BLHeli32 Rev32.8 firmware, please don't enable bidirectional
DShot in Betaflight. To use the bidirectional DShot feature, make sure to upgrade to Rev32.9 firmware.
V22 ESC doesn't have the issue.
Learn more
SpeedyBee Stack

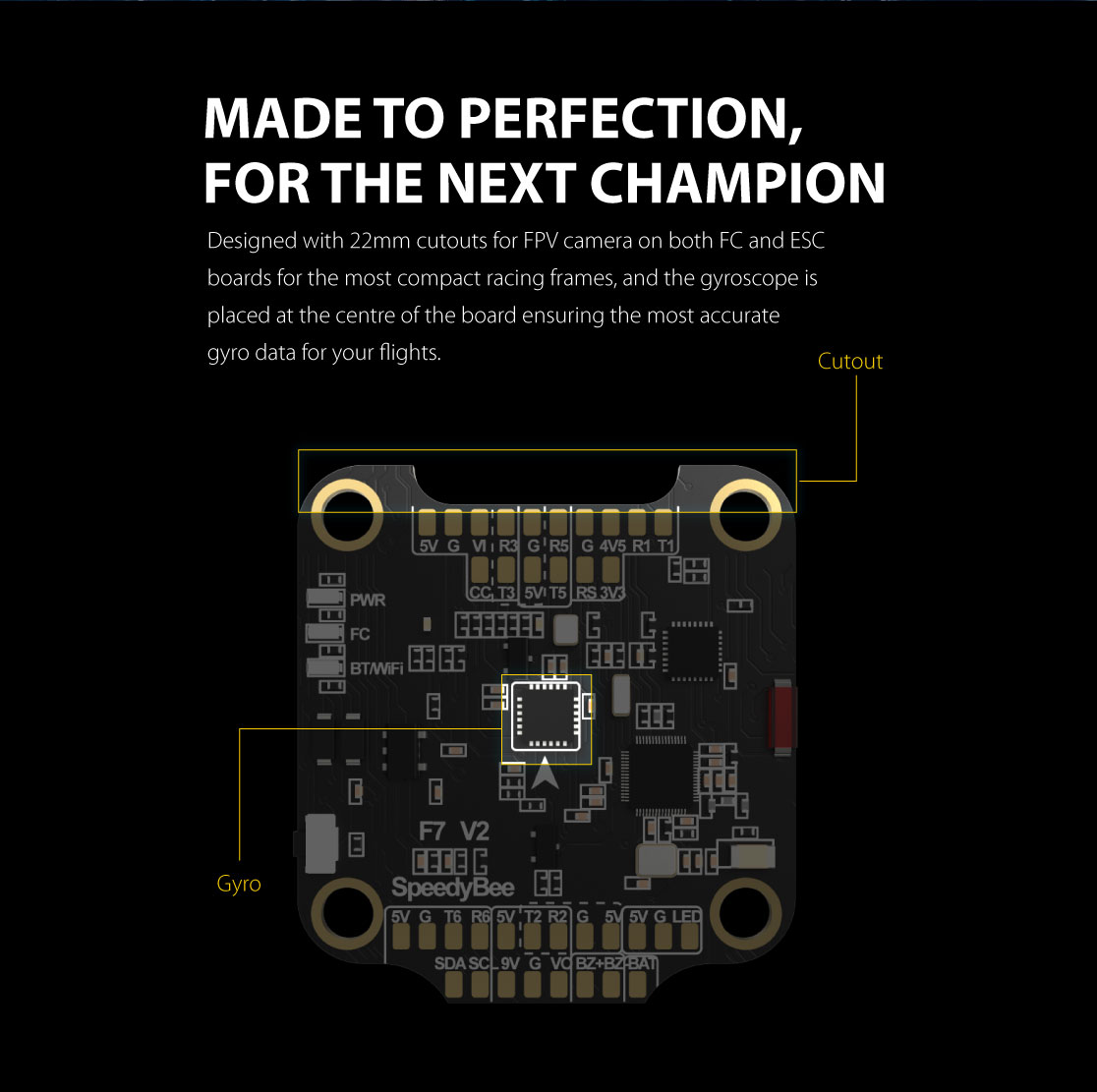

SpeedyBee Stack

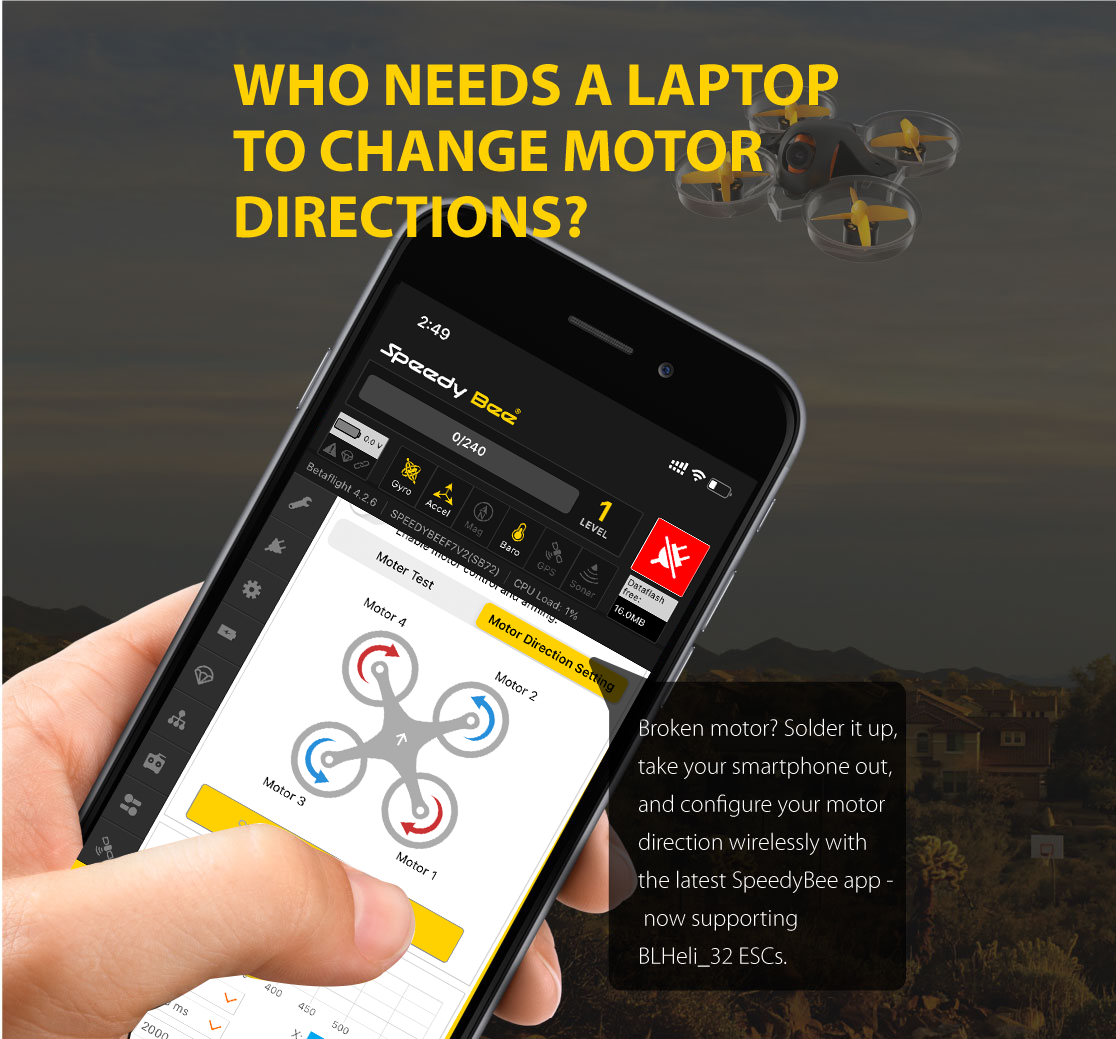

SpeedyBee Stack

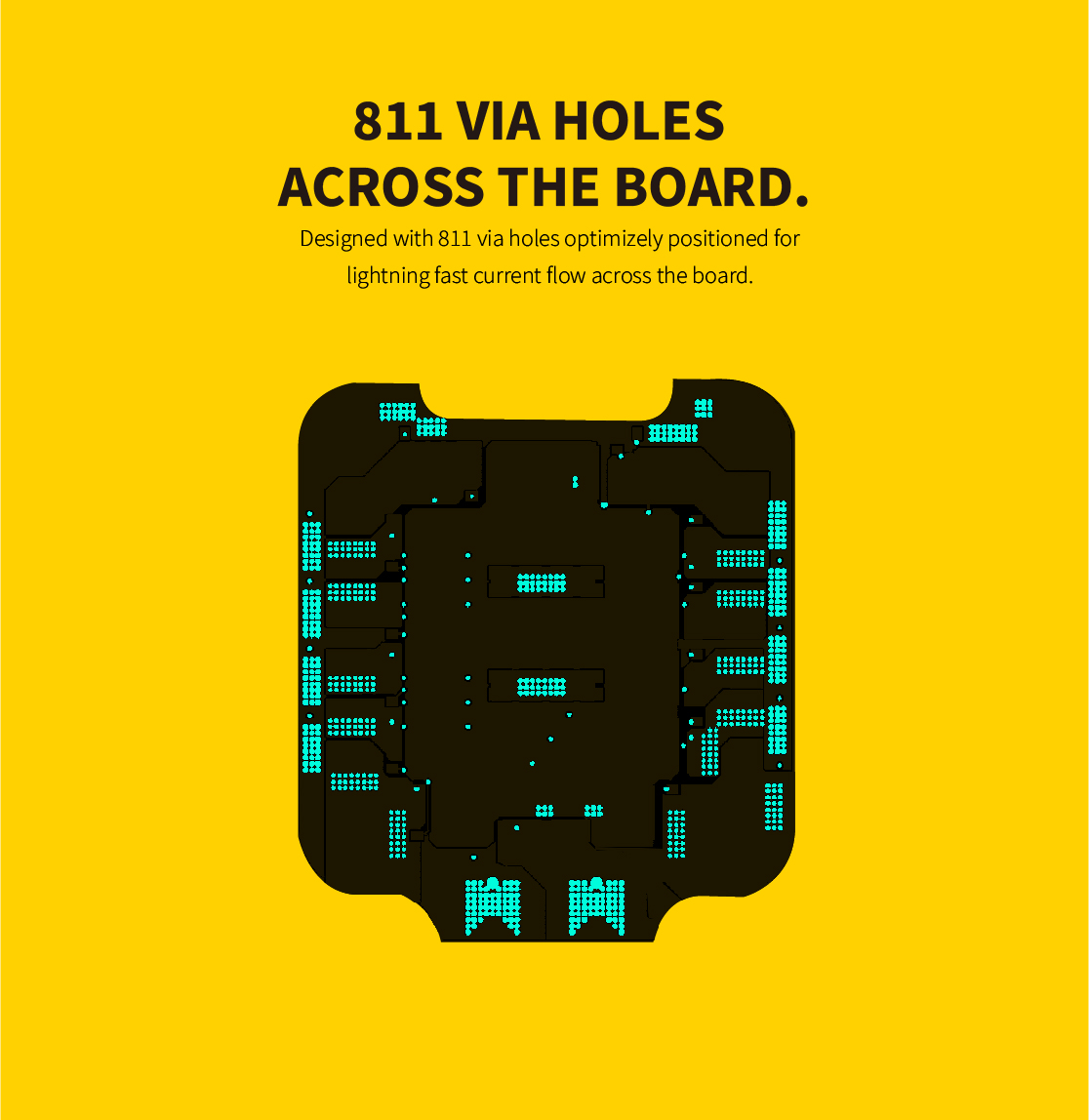

SpeedyBee Stack

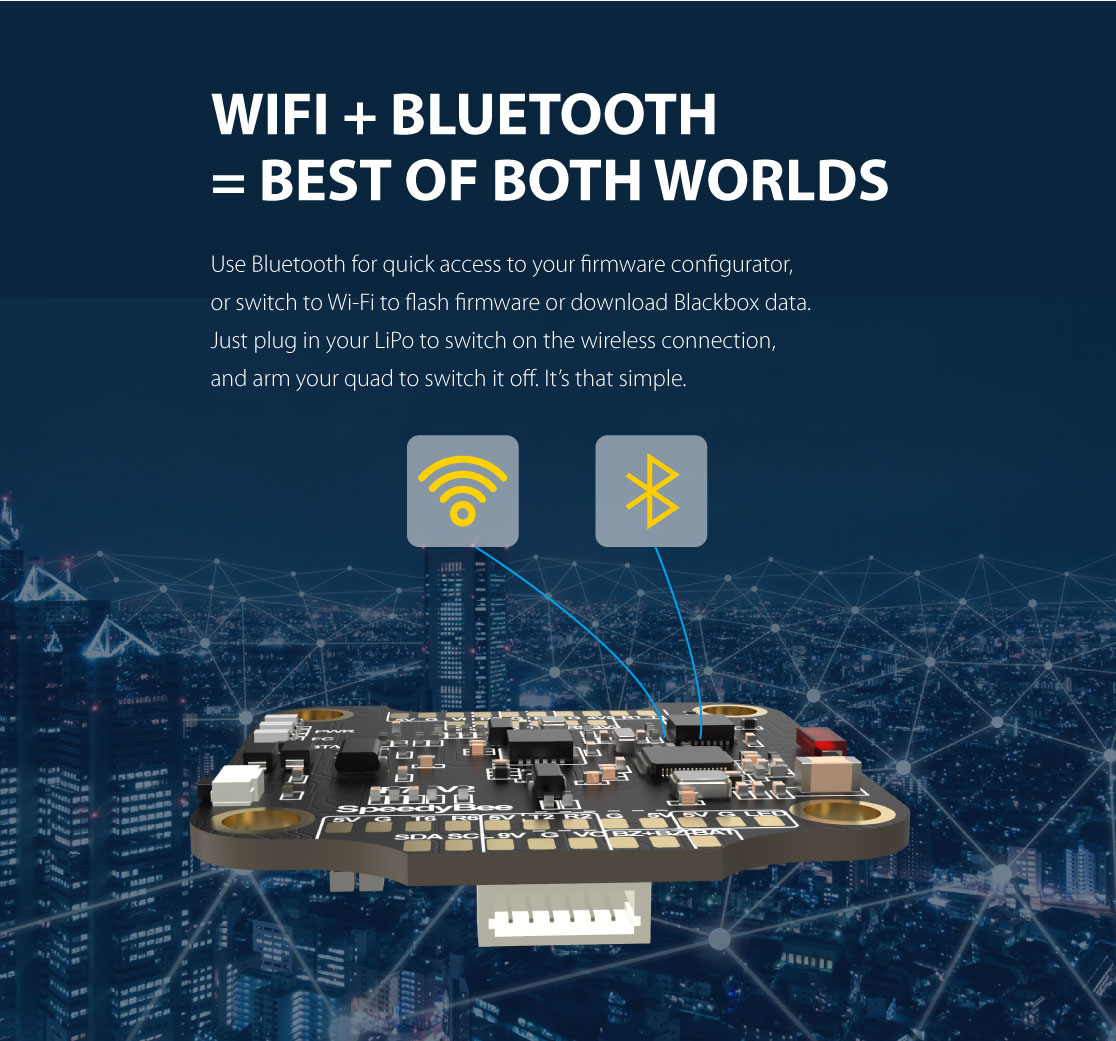

SpeedyBee Stack

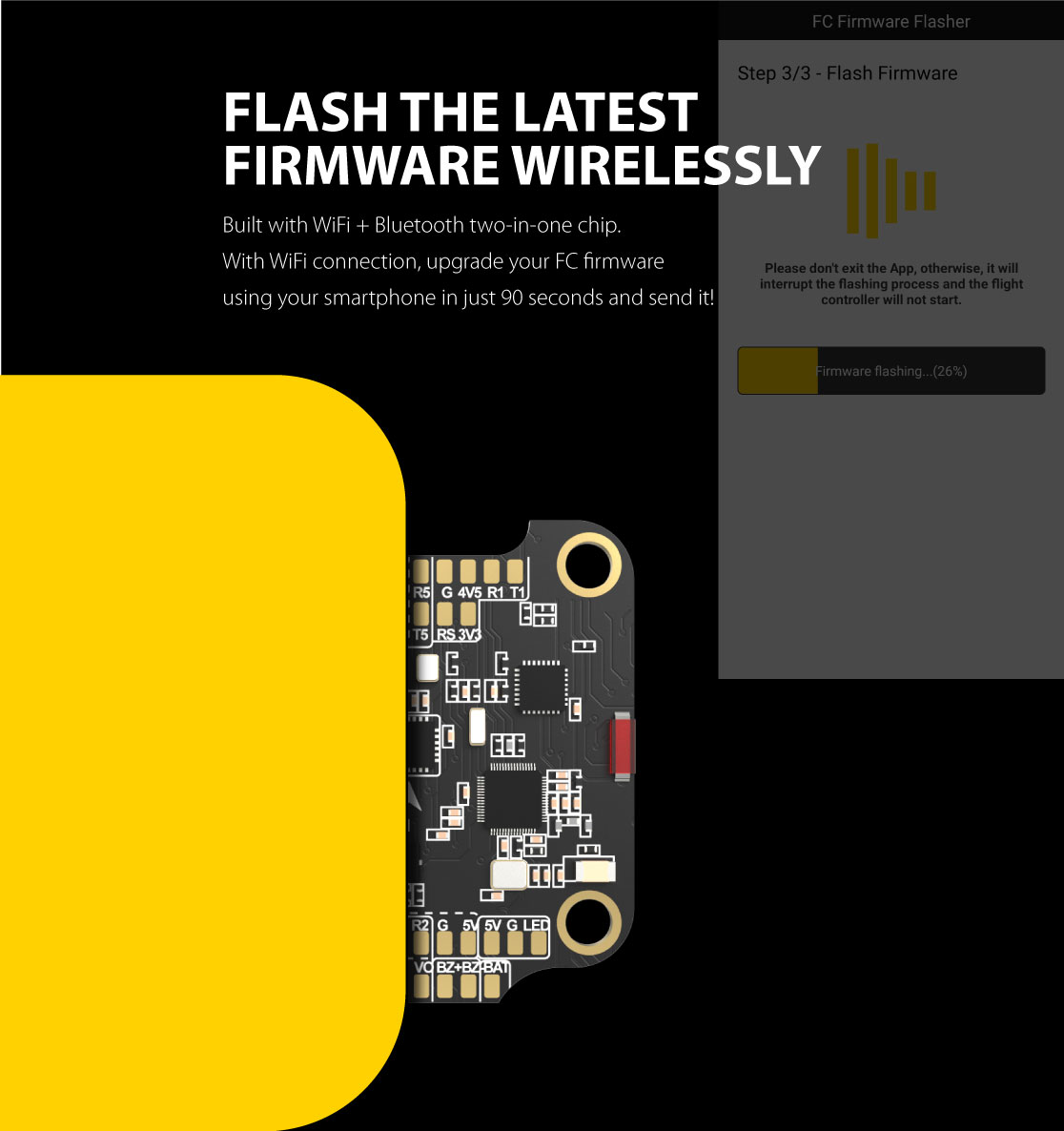

SpeedyBee Stack

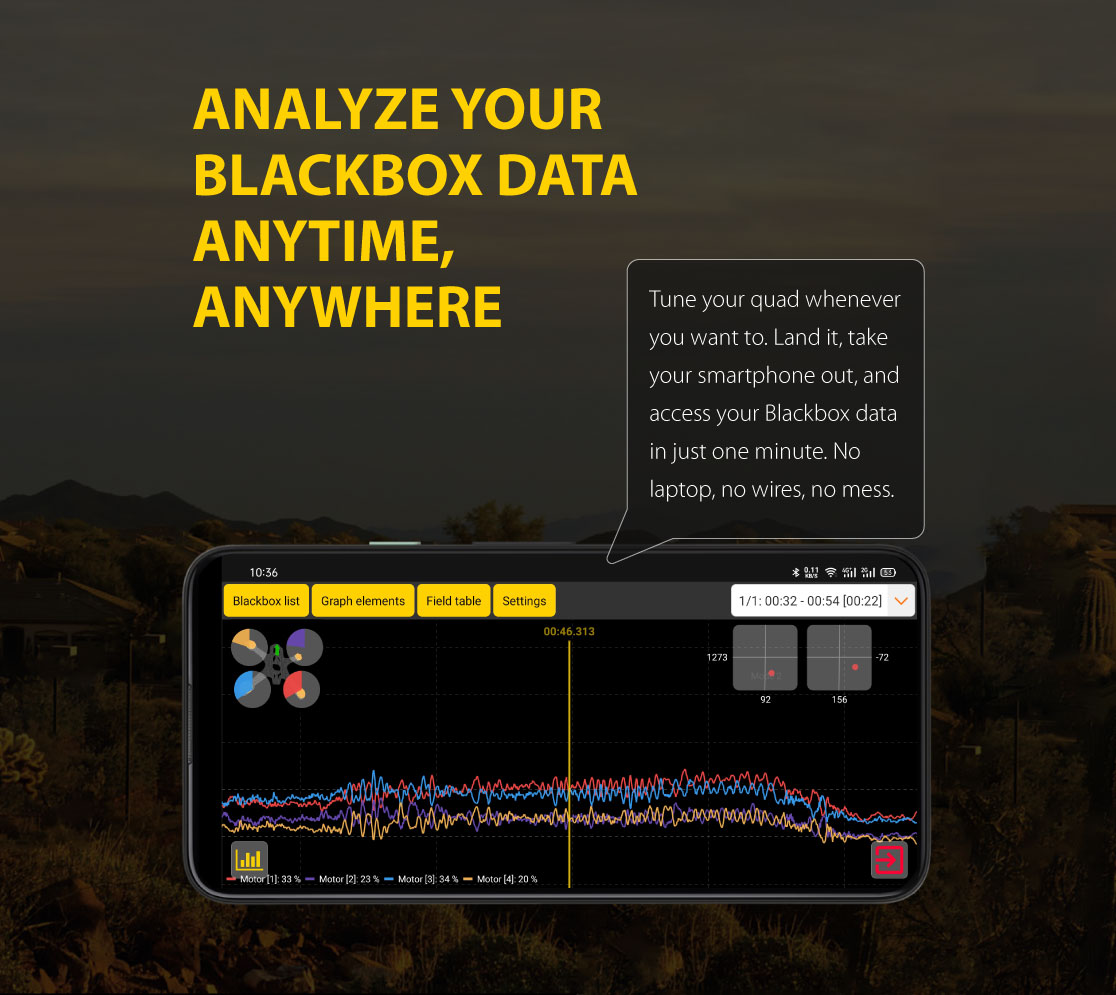

SpeedyBee Stack
SpeedyBee Stack
SpeedyBee Stack
SpeedyBee Stack
SpeedyBee Stack
SpeedyBee Stack
SpeedyBee Stack

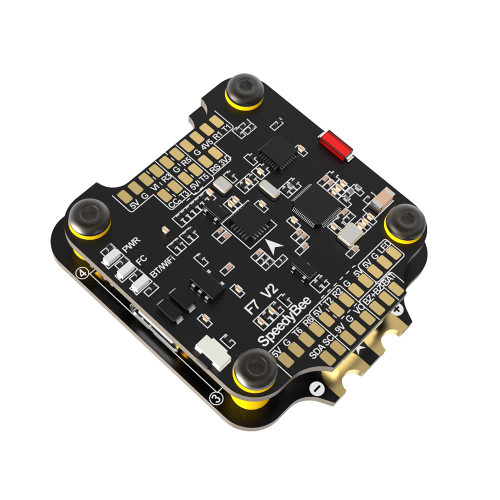

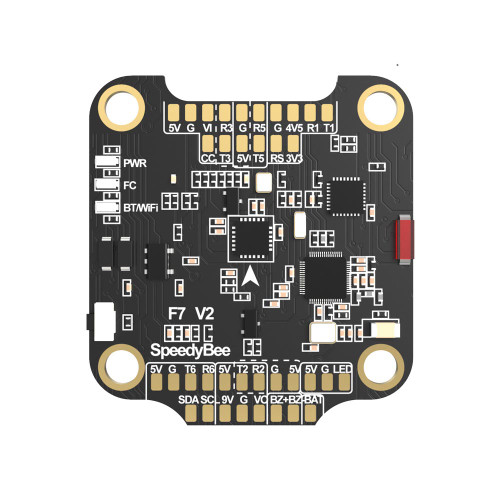

Layout
SpeedyBee Stack SpeedyBee Stack

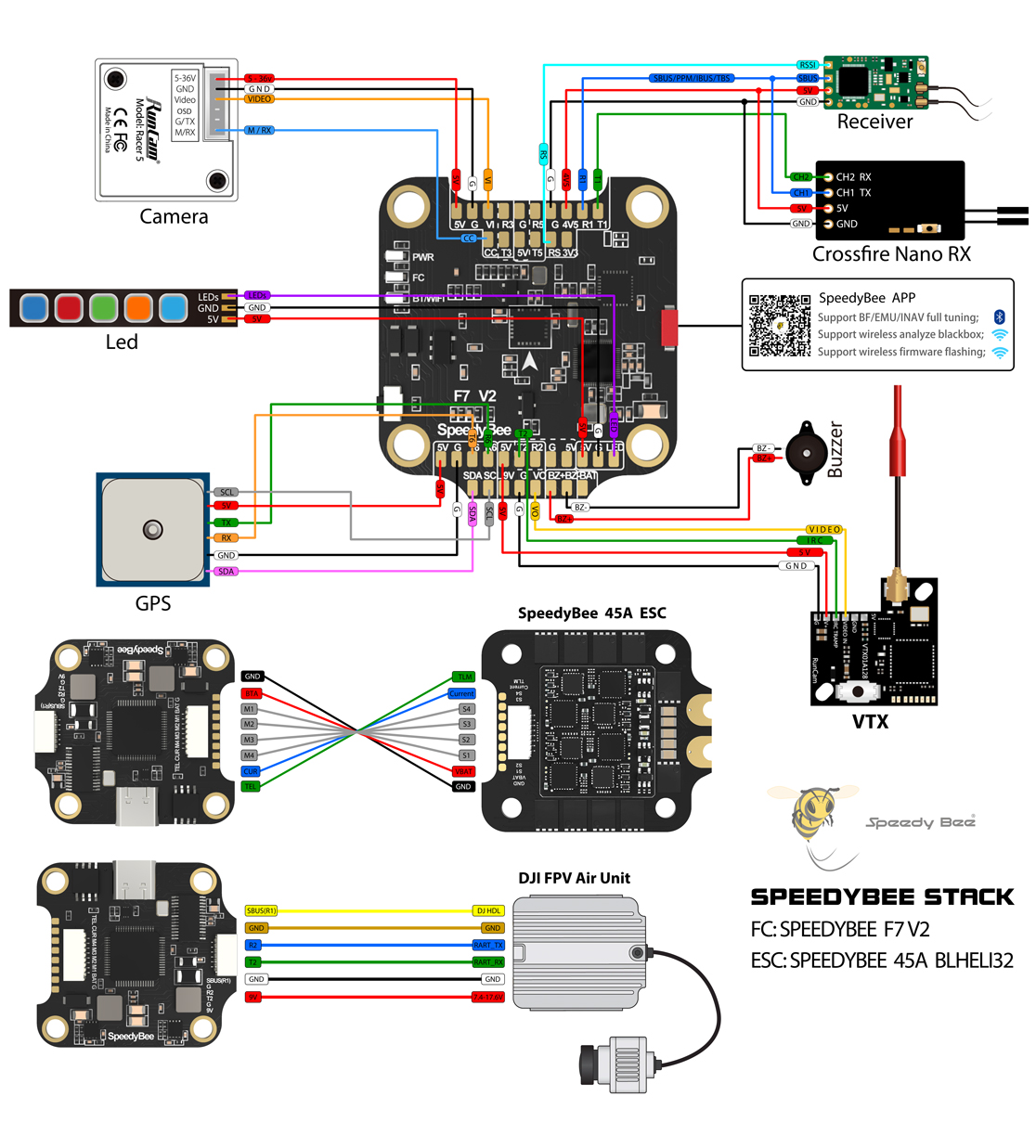

Wiring Guide

SpeedyBee Stack

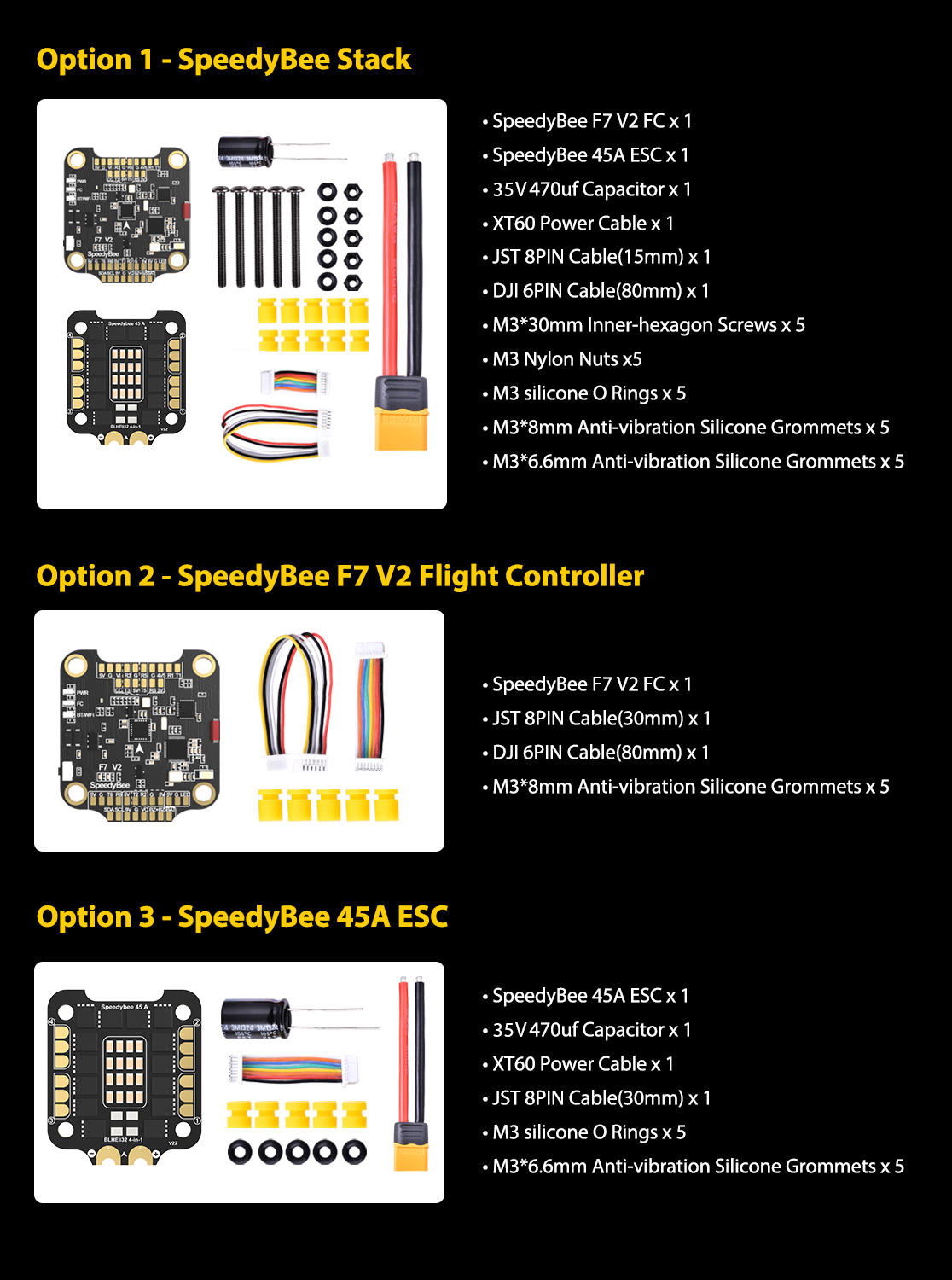

Package
SpeedyBee Stack

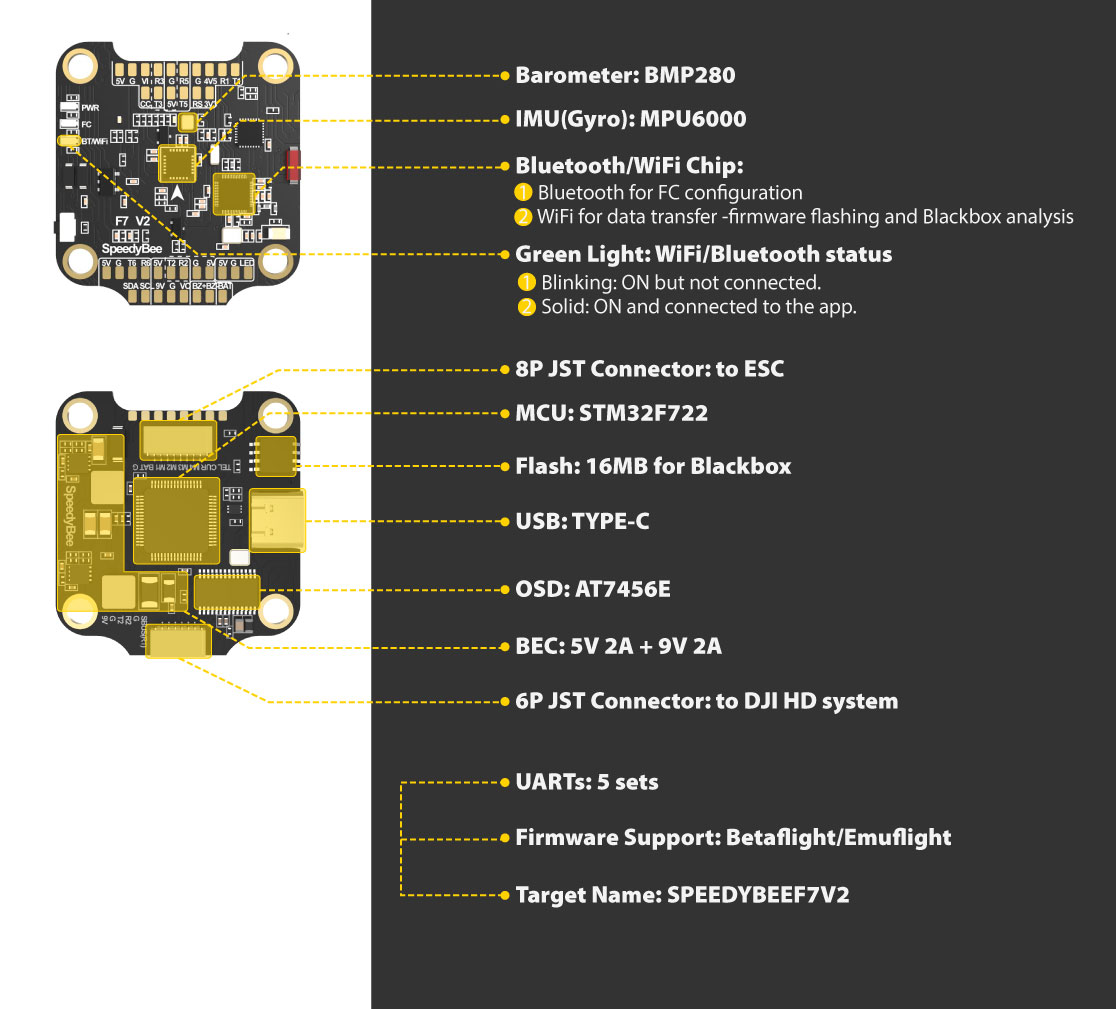

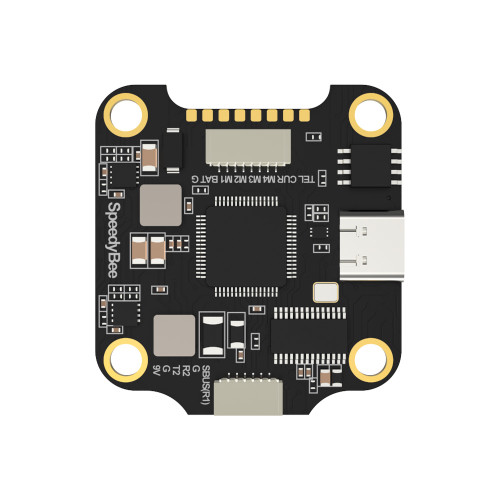

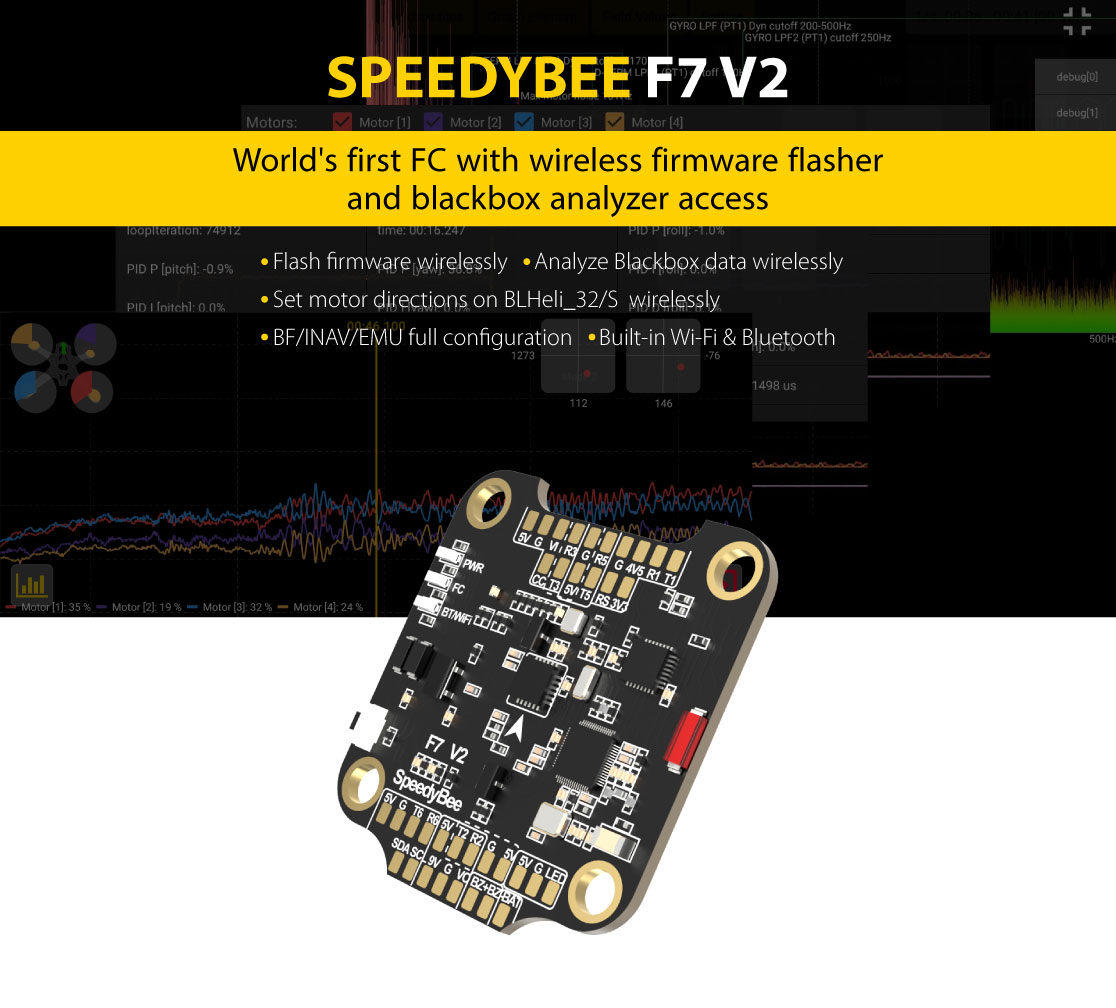

SpeedyBee F7V2 Specifications
MCU STM32F722
IMU MPU6000
USB Type-C
Barometer BMP280 (I2C) Warning:Do not apply conformal coating on the berometer because the air hole can be clogged.
OSD BetaFlight OSD w/ AT7456E chip
BLE Support, used for Flight Controller configuration
WiFi Support, used for data transfer, e.g firmware
flashing, and Blackbox analysis.
DJI Air Unit slot A full DJI Air Unit JST slot onboard
BlackBox 16MB onboard dataflash
Current Sensor 1 : 10 (Scale 168)
BetaFlight Camera Control Pad Yes
Power input 3-6S
5V BEC x 1 5V output x 7 , 6 pads, and a BZ+ pad used for Buzzer, the maximum load current in total is 2.5A.
9V BEC x 1 9V output x 2 , 1 pad and another one used for DJI slot, the maximum load current in total is 2.5A.
4.5V power output 1 * 4.5V output pad
3.3V power output 1 * 3.3V output pad, the maximum load current is 500mA.
ESC signal M1 - M4
UART Full UART * 5(UART1, UART2, UART3, UART5, UART6)
ESC Telemetry UART UART4 RX
I2C Used for external Magnetometer, Sonar, etc.
LED pin Used for WS2812 LED
Buzzer BZ+ and BZ- pad used for 5V Buzzer
Boot button Used to easy enter DFU mode
RSSI input RSSI input solder pad
SmartPort Use any TX pad of UART for the SmartPort feature.
Support Flight Controller Firmware BetaFlight(Default), EMUFlight
Target name SPEEDYBEEF7V2

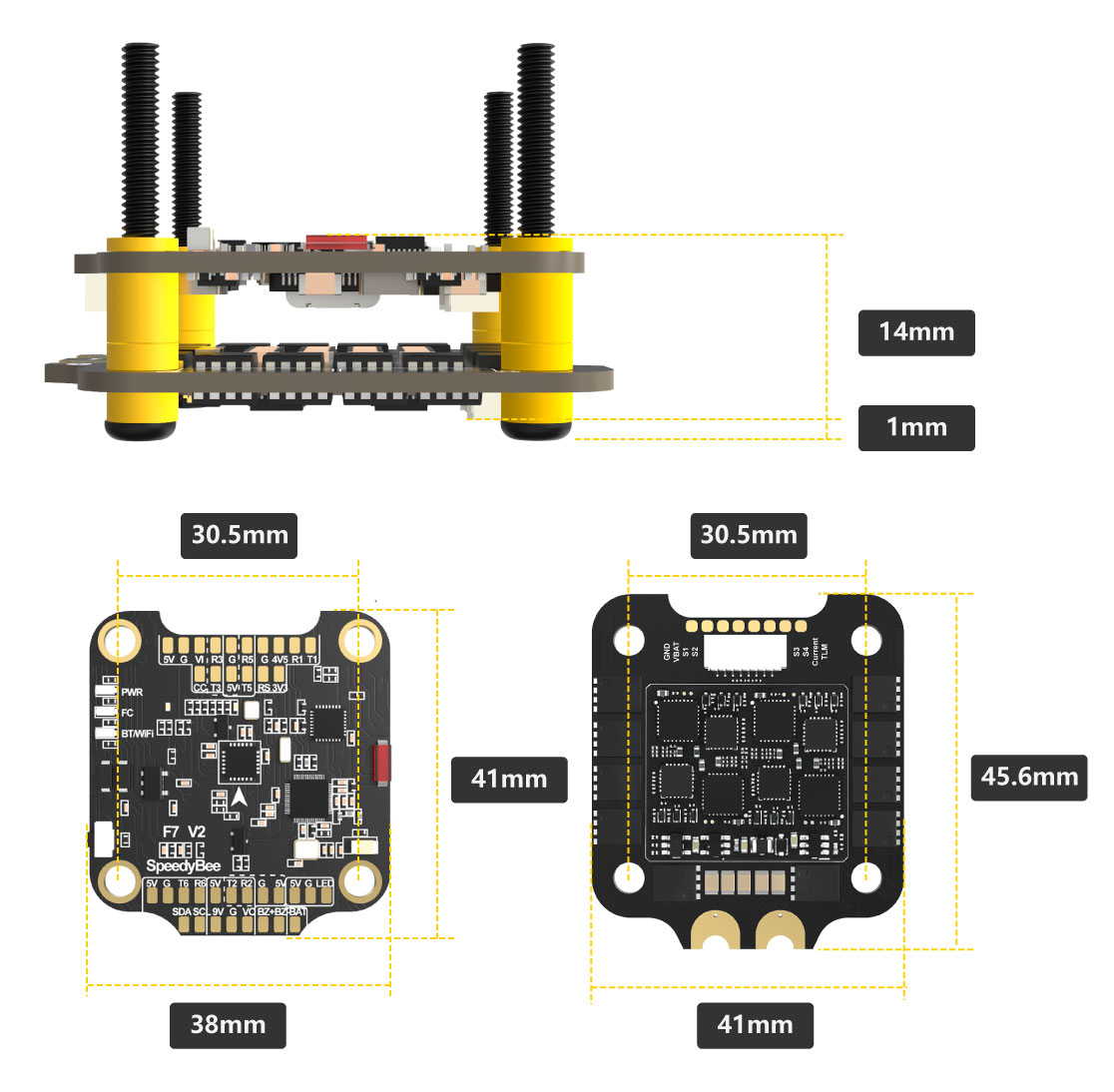

Mounting 30.5 x 30.5mm,  4mm hole size
Dimension 41 x 38 x 6.9mm
Weight 9g

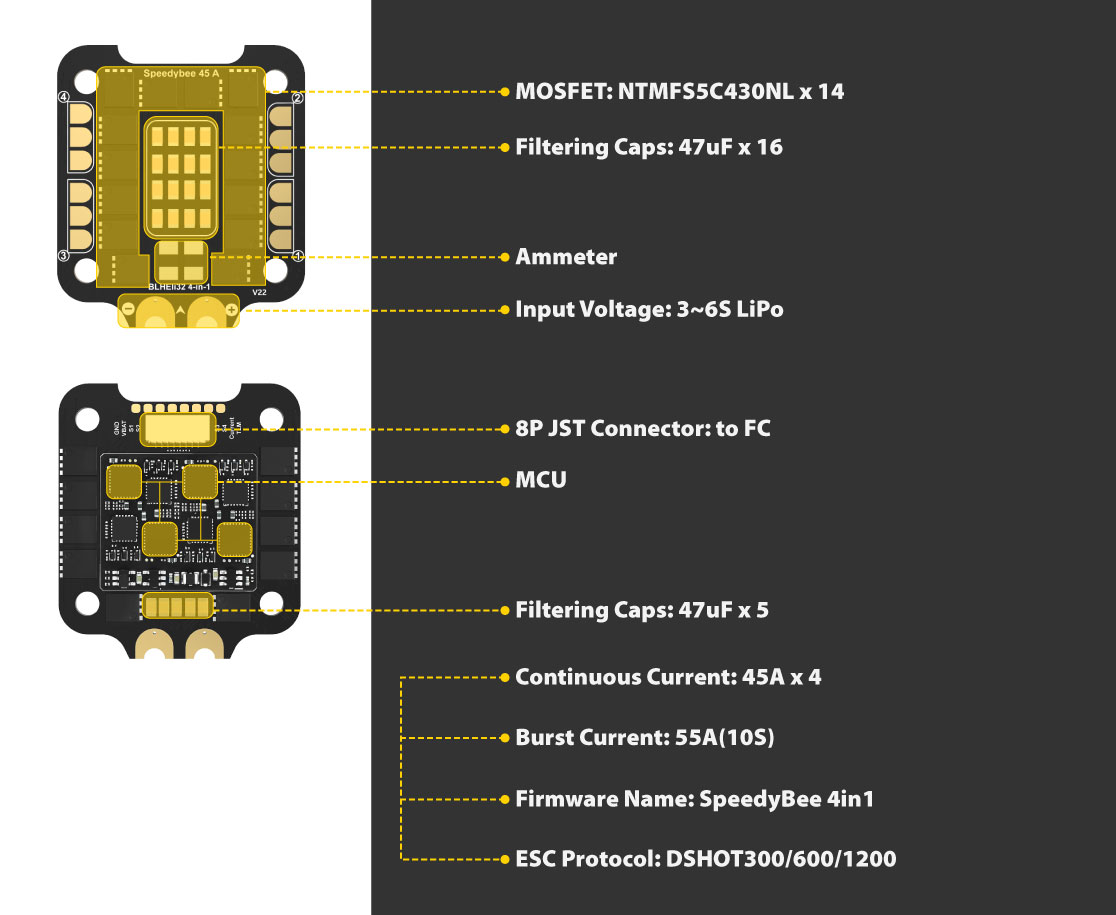

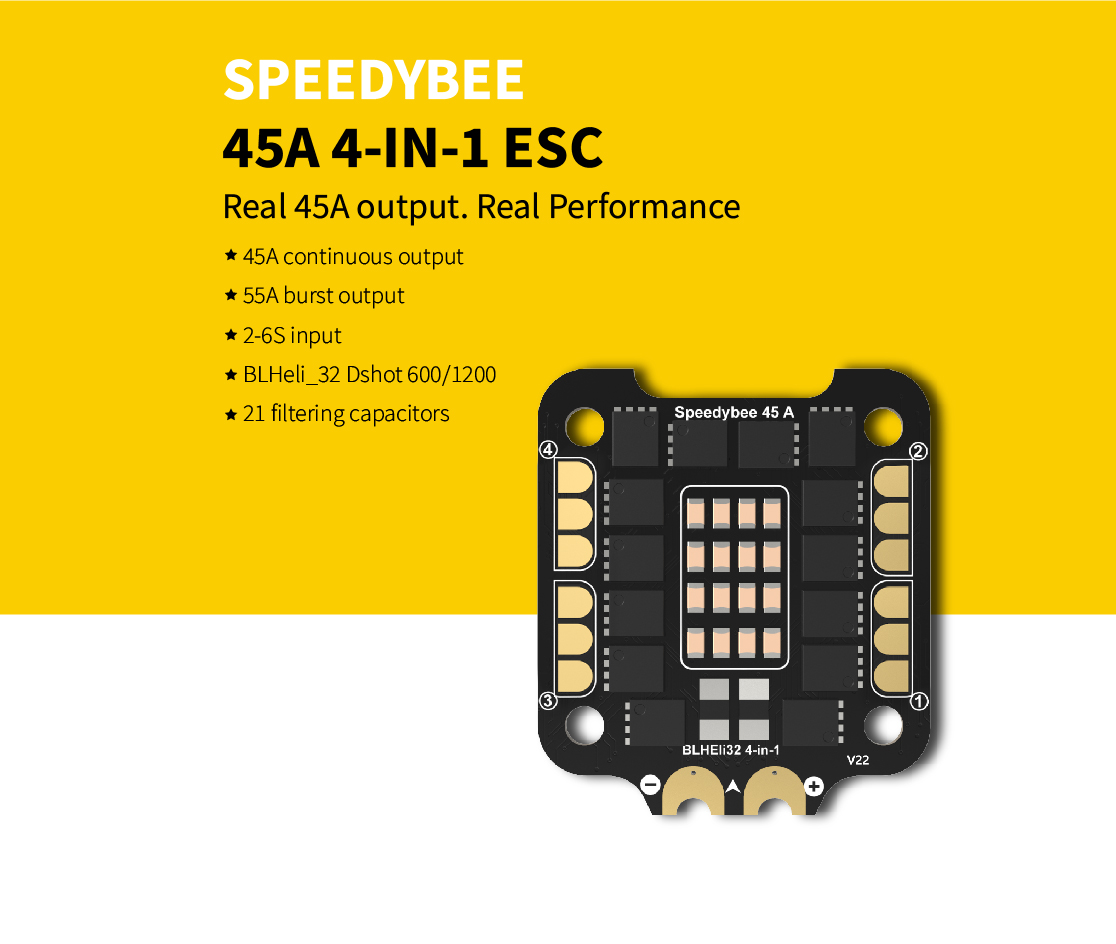

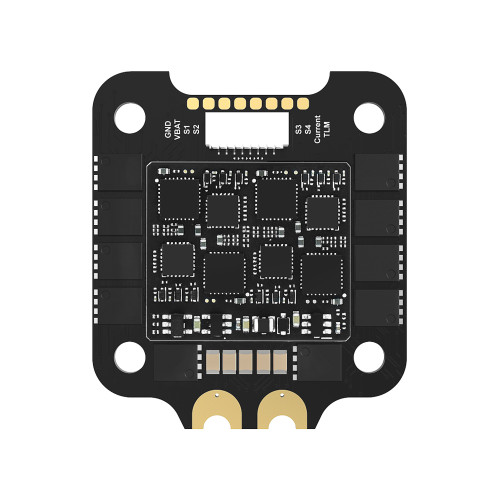

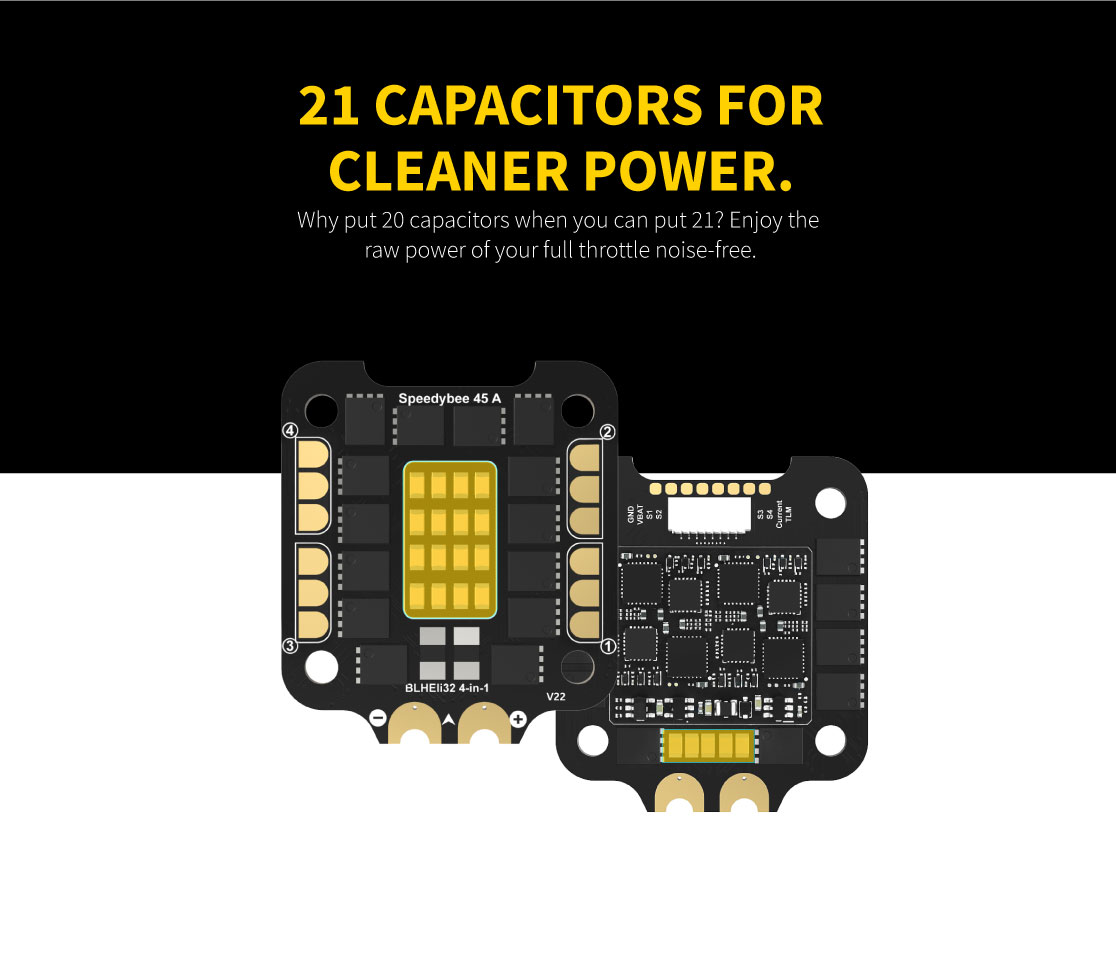

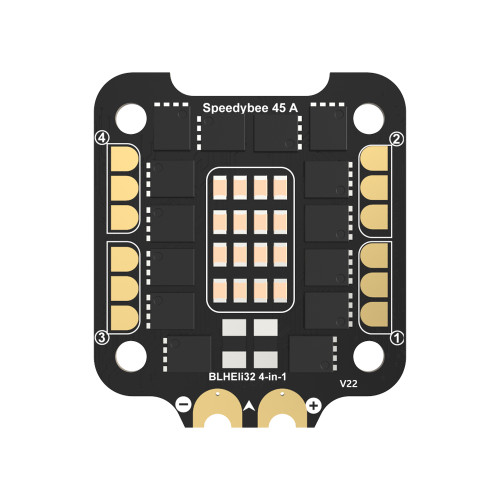

SpeedyBee BLHeli32 45A 4 in 1 ESC Specifications
Firmware BLHeli32 SpeedyBee 4in1
Continuous Current 45A * 4
Burst Current 55A(10S)
ESC Protocol DSHOT300/600/1200
Power input 3-6S Note: Strongly recommended to solder the filtering capacitor between VBAT"+" and" -"
Power output VBAT
Current Sensor Support (Scale 168)
ESC Telemetry Support
Mounting 30.5 x 30.5mm, 4mm hole size
Dimension 41 * 45 * 6.5mm
Weight 12.5g
Supported Motor 1900KV or below should be needed for 6S
