SpeedyBee F7 V2 Flight Controller
€50.20
- SKU:
- SPEEDYBEE-F7V2
- Availability:
- Discontinued
SpeedyBee F7 V2 BL32 45A Stack(with V22 ESC)
€98.61 - €101.73

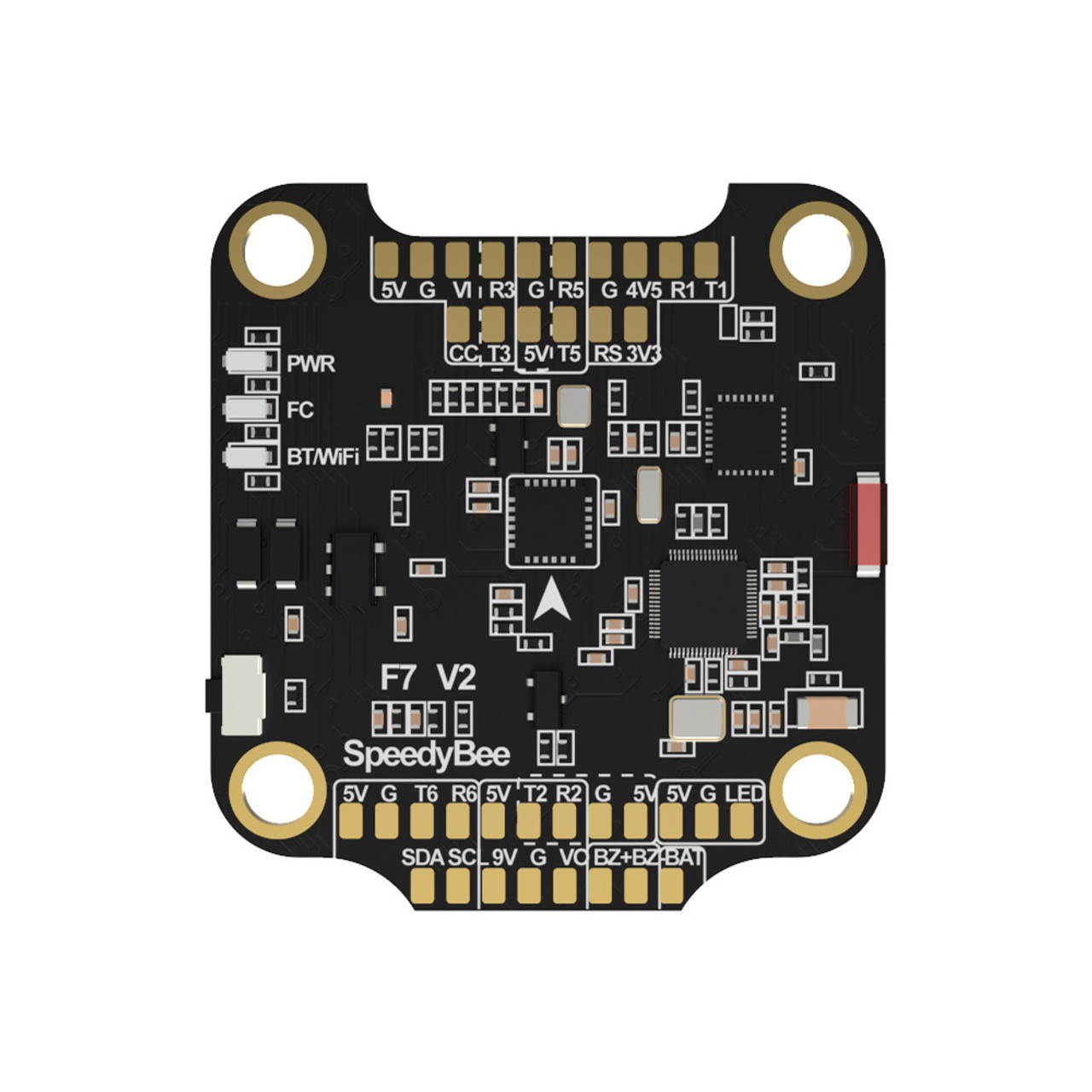

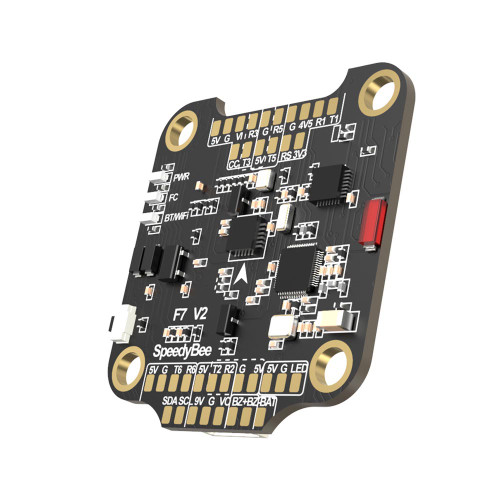

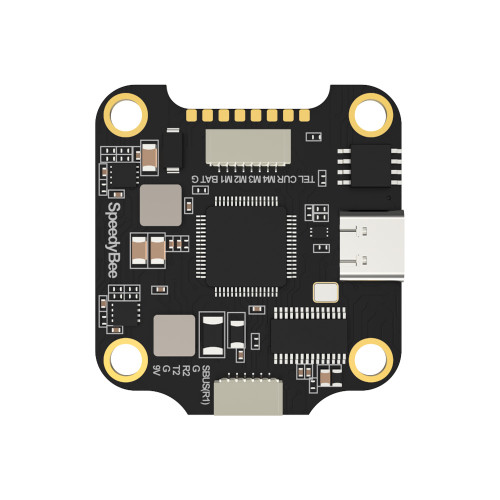

Layout
Wiring Guide

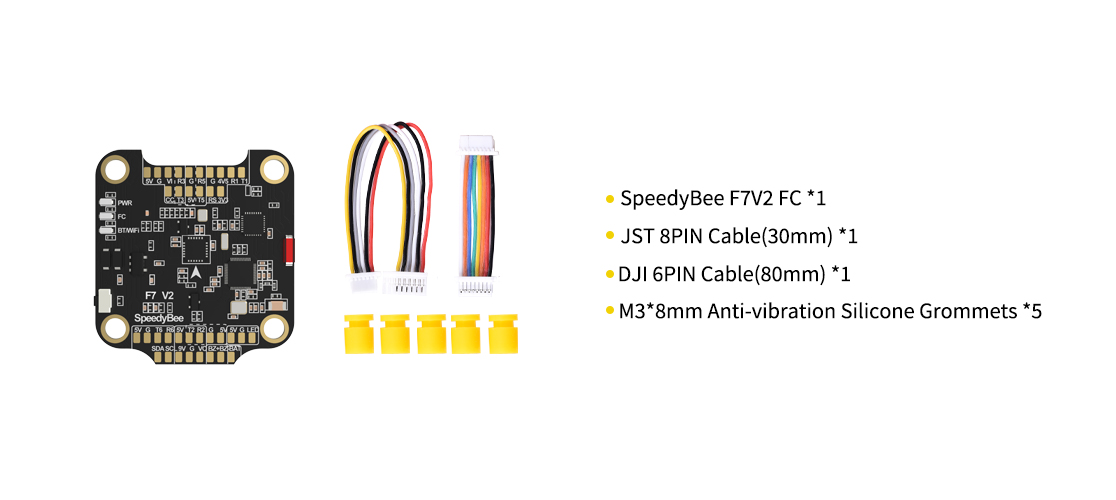

Package
SpeedyBee F7V2 Specifications
| MCU | STM32F722 |
| IMU | MPU6000 |
| USB | Type-C |
| Barometer | BMP280(I2C) Warning:Do not apply conformal coating on the berometer because the air hole can be clogged. |
| OSD | BetaFlight OSD w/ AT7456E chip |
| BLE | Support, used for Flight Controller configuration |
| WiFi | Support, used for data transfer, e.g firmware flashing, and Blackbox analysis. |
| DJI Air Unit slot | A full DJI Air Unit JST slot onboard |
| BlackBox | 16MB onboard dataflash |
| Current Sensor | 1 : 10 (Scale 168) |
| BetaFlight Camera Control Pad | Yes |
| Power input | 3S - 6S Lipo |
| 5V BEC x 1 | 5V output x 7 , 6 pads, and a BZ+ pad used for Buzzer, the maximum load current in total is 2.5A. |
| 9V BEC x 1 | 9V output x 2 , 1 pad and another one used for DJI slot, the maximum load current in total is 2.5A. |
| 4.5V power output | 1 * 4.5V output pad |
| 3.3V power output | 1 * 3.3V output pad, the maximum load current is 500mA. |
| ESC signal | M1 - M4 |
| UART | Full UART * 5(UART1, UART2, UART3, UART5, UART6) |
| ESC Telemetry UART | UART4 RX |
| I2C | Used for external Magnetometer, Sonar, etc. |
| LED pin | Used for WS2812 LED |
| Buzzer | BZ+ and BZ- pad used for 5V Buzzer |
| Boot button | Used to easy enter DFU mode |
| RSSI input | RSSI input solder pad |
| SmartPort | Use any TX pad of UART for the SmartPort feature. |
| Support Flight Controller Firmware | BetaFlight(Default), EMUFlight |
| Target name | SPEEDYBEEF7V2 |
| Mounting | 30.5 x 30.5mm, 4mm hole size |
| Dimension | 41 x 38 x 6.9mm |
| Weight | 9g |
